How to select the suitable type of Ailunce yagi antenna?

How to select the suitable type of Ailunce yagi antenna?

Recently Ailunce have developed three new types of Yagi antennas, so there are four types of Yagi antennas in Ailunce official web, including Ailune AY01, AY02, AY03 and AY04. Then, how to select the suitable type of Ailunce yagi antenna?

Why do you select Ailunce AY01?

Ailunce AY01 is one of the simplest, sturdy, and easy to set up antenna.

It's a UHF single-band, three-elements Yagi antenna. The best communication frequency range is from 430 to 440 MHZ. The connector of the antenna is the common UHF female and the impedance is 50 ohm. it's suitable for the situation where the communication frequency is stable and the communication quality and distance is higher requirements than that of the general antenna.

Why do you select Ailunce AY02?

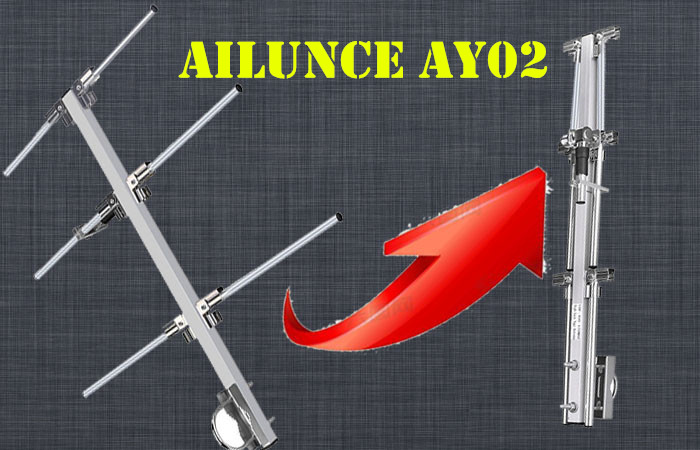

Ailunce AY02 is the only foldable yagi antenna, which type is with high gain, light and easy to carry. It is very suitable for communication anytime and anywhere.

It's a UHF single-band, three-elements Yagi antenna. The best communication frequency range is from 400 to 470 MHZ. The connector of the antenna is the common SL16.K and the impedance is 50 ohm.

Why do you select Ailunce AY03?

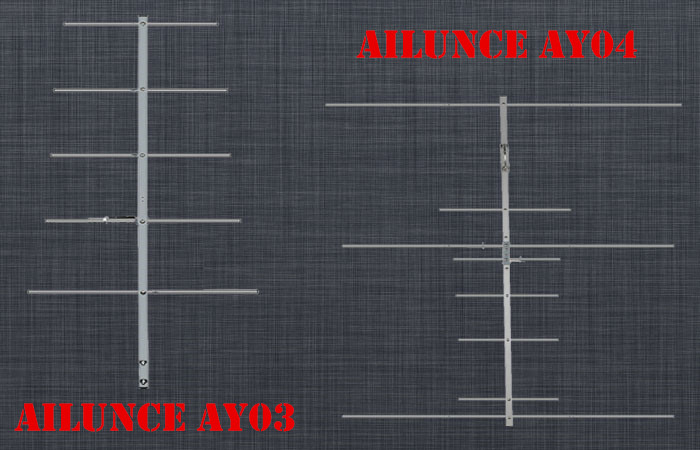

Ailunce AY03 is a UHF single-band, five-elements Yagi antenna. so compare with Ailunce AY01 and AY02, its directionality is sharper and the gain is higher.

The best communication frequency range is from 400 to 470 MHZ, and bandwidth is 50 MHZ. The connector of the antenna is the common SL16.K and the impedance is 50 ohm. The highest power can be 100w.

Since the type antenna is usually installed higher outdoors, we have tested the strength of the antenna when designing it. The speed of extreme wind it can resist is 60 meter per second. so you can use it with confidence.

Why do you select Ailunce AY04?

The specially recommended type is Ailunce AY04. It is the only dual-band Yagi antenna on Ailunce web, incuding three-elements VHF band and five-elements UHF band. The best communication frequency is 144 and 430MHz.

The connector of the antenna is the common SL16.K and the impedance is 50 ohm. The highest power can be 100w.The speed of extreme wind it can resist is 60 meter per second.

Ailunce AY04 is dual frequency bands, high gain, easy installation, and strong anti-interference ability antenna. It's very suitable for ham with long communication distance and high communication requirements.


Comments

Comment user

Dzulyaden Hasbi

Hi, I have bought the AY-04 and installed it. Since it is a sual band antenna, I am not clear on which elements dedicated for VHF and which ones for UHF. I al afraid that they are not on the same direction? I assume it is both on the opoposite side. Can you clarify please, which element numbers are for the VHF? Tks

Comment author

Yolanda Author

same direction, the three long elements are for VHF, the 5 short elements are for UHF.
