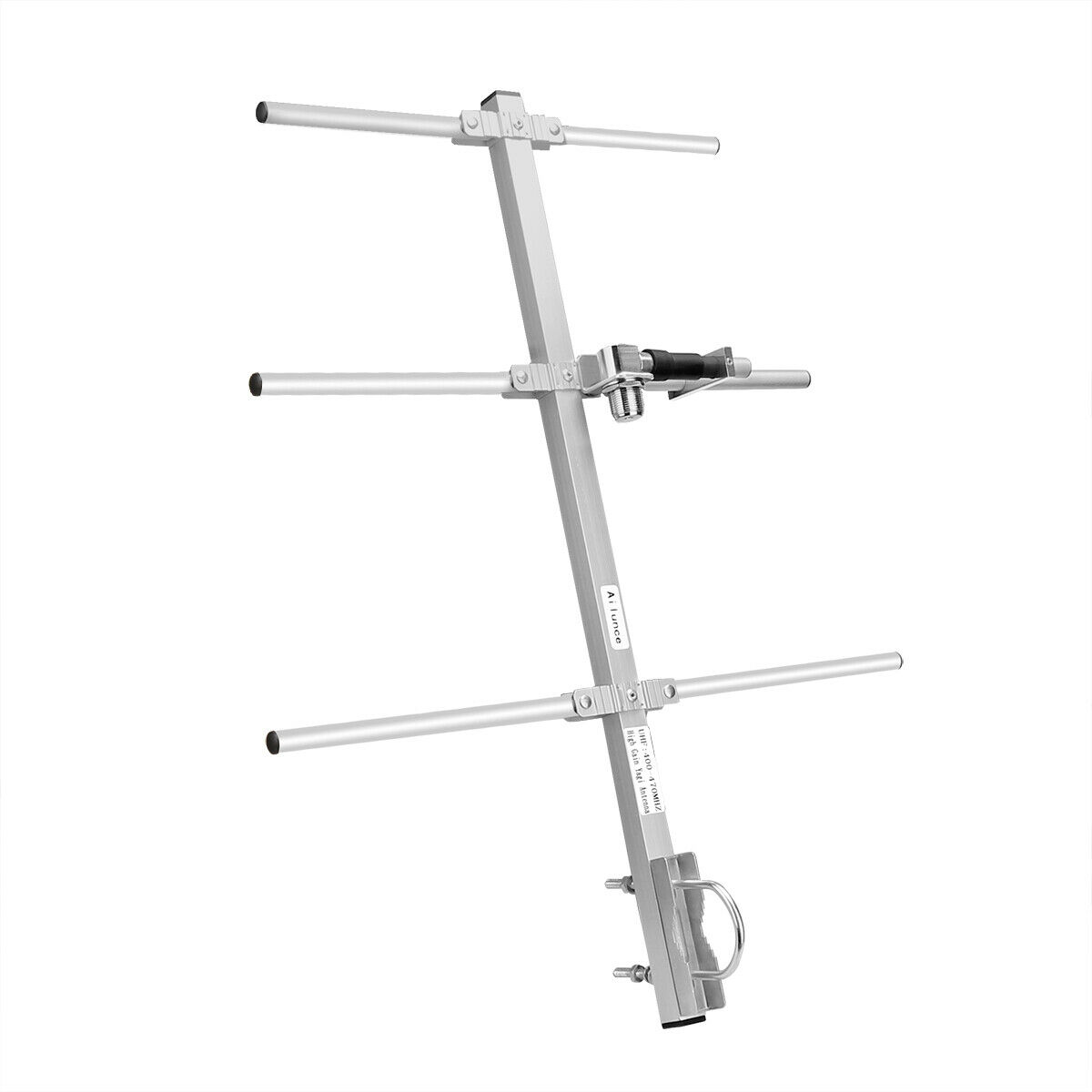

3 Elements
Foldable
Simple construction and easy assembly and disassembly
Brand: Ailunce
Model: AY02
Frequency: UHF
Length: 45.2cm/17.8inch
Feature
- 3Elements
- Foldable
- High Gain
- Strong directionality
- Strong anti-jamming
- Realize long distance communication
- Simple construction and easy assembly and disassembly
- Lightweight and sturdy, easy to set up
- High-cost performance
|
Electrical Specifications |
|
|
Frequency Range |
400~470 MHz |
|
Bandwidth |
20MHz |
|
Impedance |
50Ω |
|
VSWR |
＜1.5 |
|
Gain |
7 dBi |
|
Polarization |
Vertical |
|
Horizontal 3dB Beam Width |
53° |
|
Vertical 3dB Beam Width |
45° |
|
Front To Back Ratio |
>15 dB |
|
Maximum Power Input-watts |
100W |
|
Lighting Protection |
Direct Ground |
|
Connector |
SL16.K |
|
Mechanical Specifications |
|
|
Size |
452 x 351x 47mm |
|
Mounting hardware |
Ø30～Ø40 mm |
|
Rated Wind Velocity |
60 m/s |
|
Weight |
0.4Kg |
