How to connect DMR repeater on Ailunce HD1 without PC

How to connect DMR repeater on Ailunce HD1 without PC

Ailunce HD1 is DMR amateur radio, which can not only program in software but also operate directly on the radio via the front panel. So how to connect the DMR repeater on HD1 without a computer? Today we will take the local repeater as an example to show the detailed setting steps of connecting the DMR repeater directly on the front panel.

Repeater INFO:

TX=433.850MHZ
RX=439.850MHZ

CC=8

SLOT=1
Radio id: A, contact: B

Setting Steps

1.RX and Mode setting

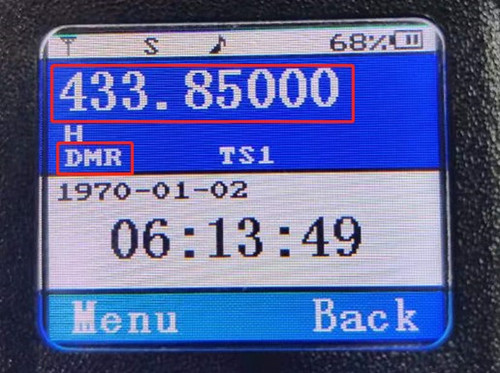

Switch to VFO mode after power on, directly input RXHD1=TXRepeater=433.850MHZ through the numeric keys, and long-press the EXIT key to switch to DMR mode.

2.ID Setting

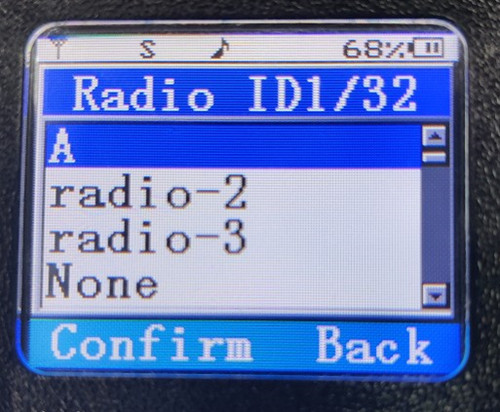

Menu=>Radio ID, and press the MENU button to confirm=>Enter the DMR ID, and press the MENU button to confirm=》Enter the ID Name as A and press the MENU button to confirm

3.Select or Add contacts

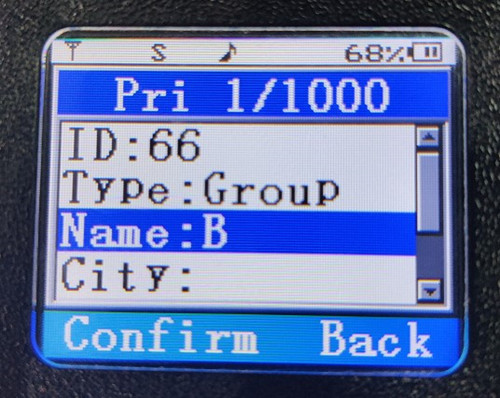

Menu=>Contacts, and press the MENU button to confirm=》Select Contacts, and press the MENU button to confirm adding priority contacts=》Set ID, Type, Name (B) and press EXIT to return

4.Channel item setting

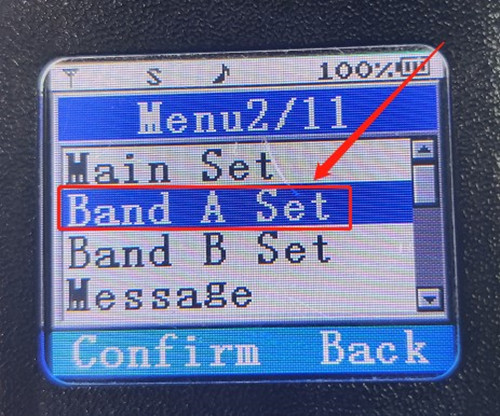

Menu=》Band A Set=》Frequency difference: TX-RX=+6, Shift Up is set to Plus=》Digital keyboard directly sets the frequency difference Shift Freq to 0600000=》Set Color Code to 8=》Set DMR Mode to Repeater=》DMR Slot is 1=》Select Radio ID as A=》Select Contact B

5.Channel Save

The basic settings have been completed, and we can press PTT to connect the repeater. But if it is a frequently used channel, it can be stored in the channel list. Proceed as follows.

Menu=》Main Set=》Save CH=》Use the channel knob to select the desired channel and confirm.
