Ailunce High Gain Directional Yagi Antenna

Ailunce High Gain Directional Yagi Antenna

As an electromagnetic transducer element, the position of the antenna in the entire radio communication system is very important. The quality directly affects the distance and effect of the transmission and reception. In other words, there is no radio communication without the antenna.

Here I will show 4 models Ailunce yagi antenna.

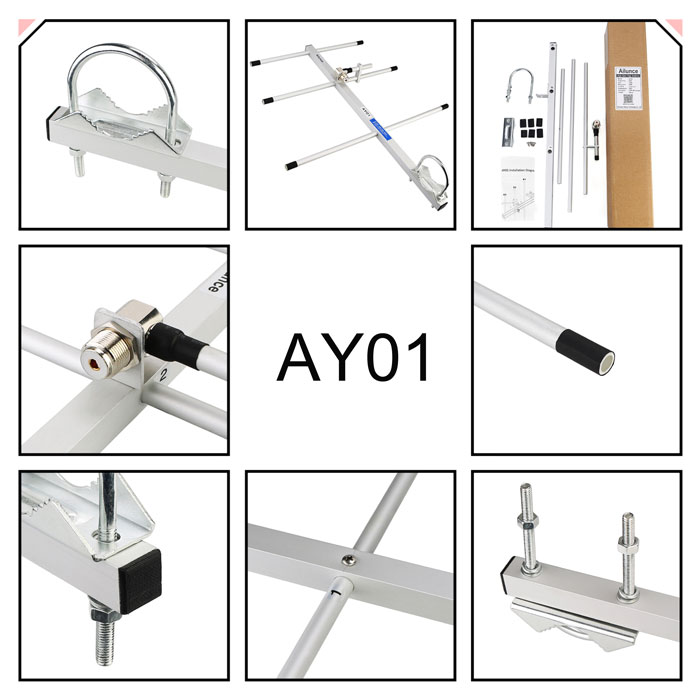

Ailunce AY01

Ailunce AY01 Yagi Antenna

Brand: Ailunce
Model: AY01
Elements: 3 elements
Frequency: UHF
Gain: 7 dBi
Max power: 50W
V.S.W.R: Less 1.2
Impedance: 50Ω
Connector: UHF Female
Length: 46cm
Note: Best communication in the 430-440MHz band.

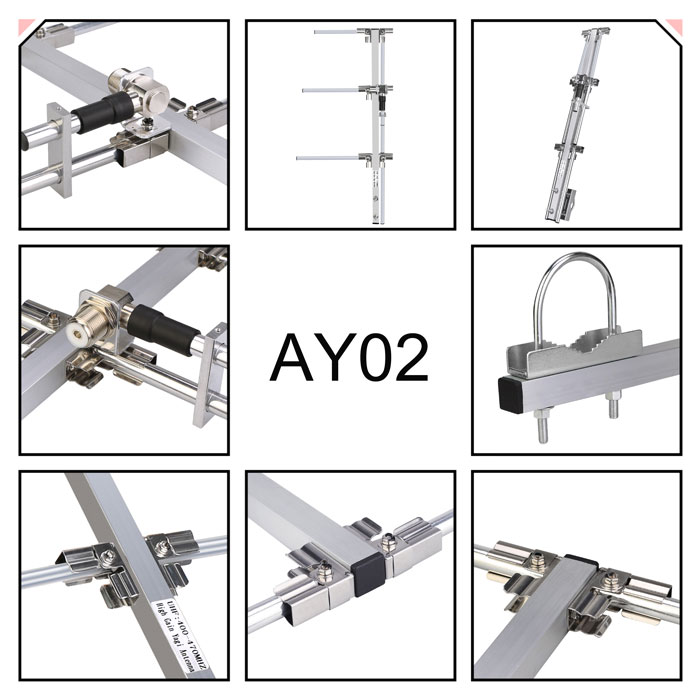

Ailunce AY02

Ailunce AY02 Yagi AntennaBrand: Ailunce
Model: AY02
Frequency: UHF
Length: 45.2cm/17.8inch
Elements: 3elements
Feature: Foldable

Electrical Specifications
Frequency Range:400~470 MHz
Bandwidth:20MHz
Impedance:50Ω
VSWR:<1.5
Gain:7 dBi
Polarization:Vertical
Horizontal 3dB Beam Width:53°
Vertical 3dB Beam Width:45°
Front To Back Ratio:>15 dB
Maximum Power Input-watts:100W
Lighting Protection:Direct Ground
Connector:SL16.K
Size:452 x 351x 47mm
Mounting hardware:Ø30~Ø40 mm
Rated Wind Velocity:60 m/s
Weight:0.4Kg

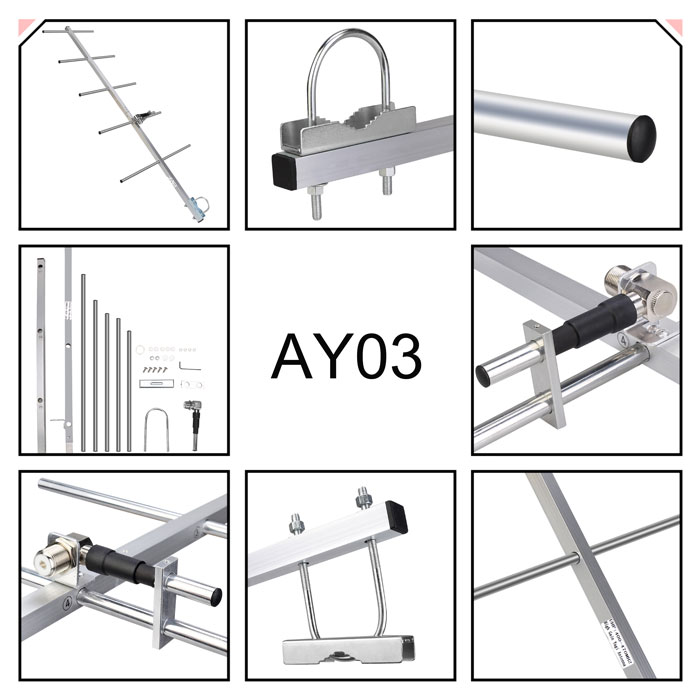

Ailunce AY03

Ailunce AY03 Yagi Antenna

Brand: Ailunce
Model: AY03
Frequency: UHF
Length: 72.5cm/28.5inch
Elements: 5 elements

Electrical Specifications

Frequency Range:400~470 MHz
Bandwidth:50MHz
Impedance:50Ω
VSWR:<1.5
Gain:9 dBi
Polarization:Vertical
Horizontal 3dB Beam Width:58°
Vertical 3dB Beam Width:40°
Front To Back Ratio:>15 dB
Maximum Power Input-watts:100W
Lighting Protection:Direct Ground
Connector:SL16K
Size:725 x 380x 48mm
Mounting hardware:Ø30~Ø40 mm
Rated Wind Velocity:60 m/s
Weight:0.4Kg

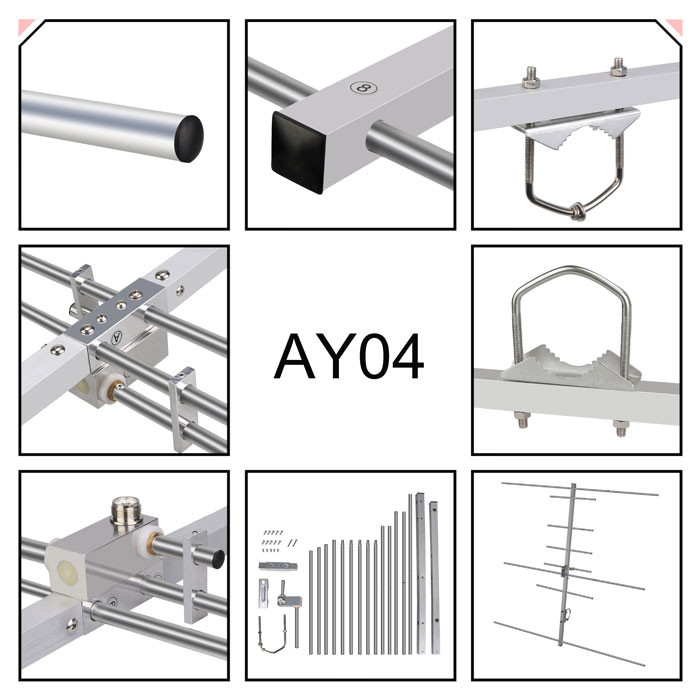

Ailunce AY04

Ailunce AY04 Yagi AntennaBrand: Ailunce
Model: AY04
Frequency: UHF&VHF
Length: 92.5cm/36.4inch
Elements: VHF(3Elements), UHF(5Elements)

Electrical Specifications

Frequency Range:144 & 430 MHz
Impedance:50Ω
VSWR:<1.5
Gain:9.5 dBi / 11.5 dBi
Horizontal Beam Width:53°/ 45°
Vertical Beam Width:48°/ 40°
Polarization:Horizontal or Vertical
Front To Back Ratio:>12 dB
Maximum Power Input-watts:100W
Lighting Protection:Direct Ground
Connector:SL16K
Size:925×1045×60 mm
Mounting hardware:Ø30-Ø60 mm
Rated Wind Velocity:60 m/s
Weight:0.85Kg
