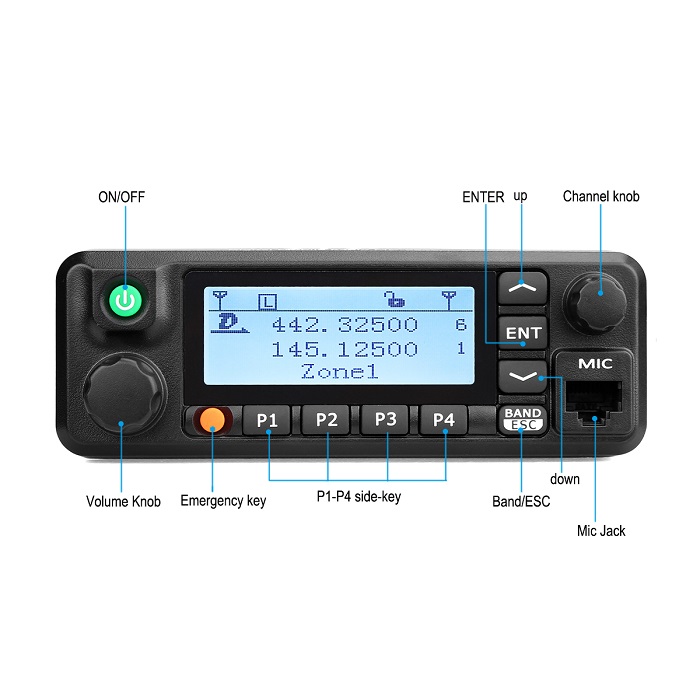

Retevis RT90 Dual Band DMR Mobile Radio

Retevis RT90 Dual Band DMR Mobile Radio

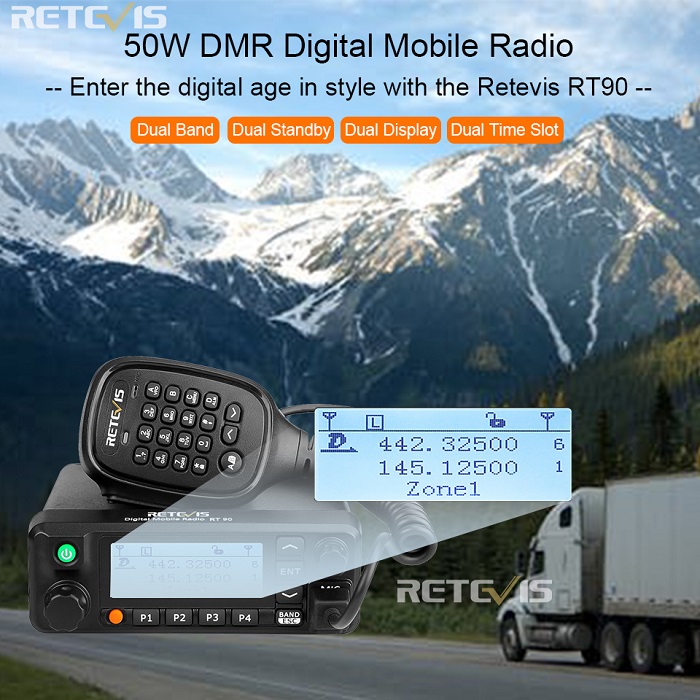

RT90 is a dual band DMR mobile radio. It supports UHF and VHF, Analog mode and DMR mode, dual standby. Two power level, the max power is 50w. Here I will show more information of it.

RT90 Dual Band DMR Mobile Radio Main Feature:

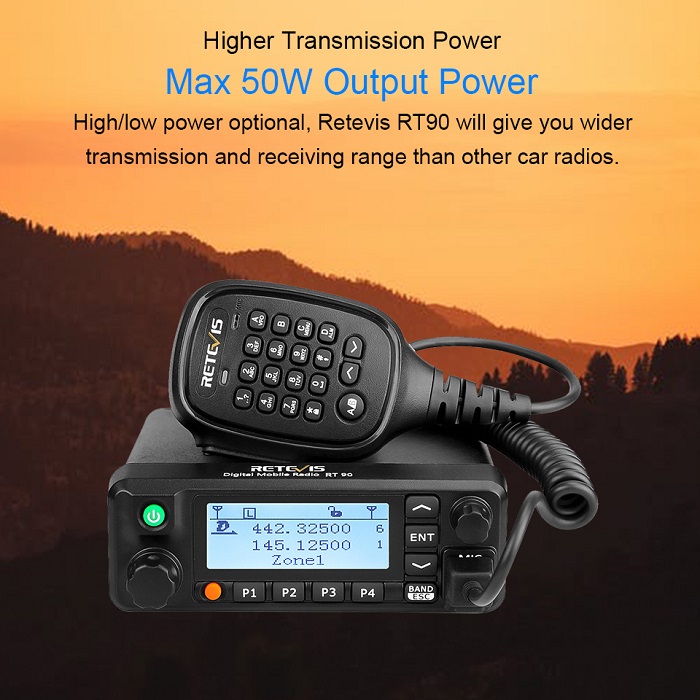

  • 1. Output power: 50W
  • 2. Use TDMA digital function
  • 3. Compatible with Mototrbo Tier I &II

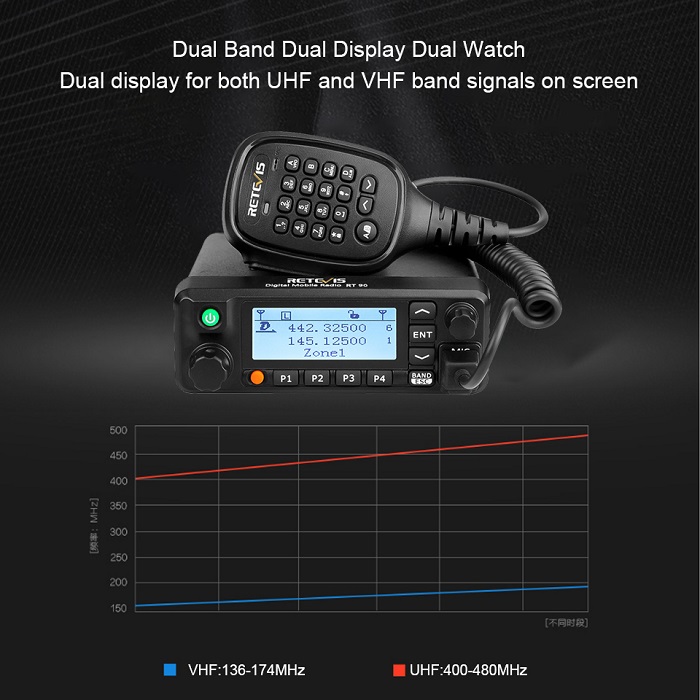

  • 4. Dual band, dual standby, dual display, dual time slot

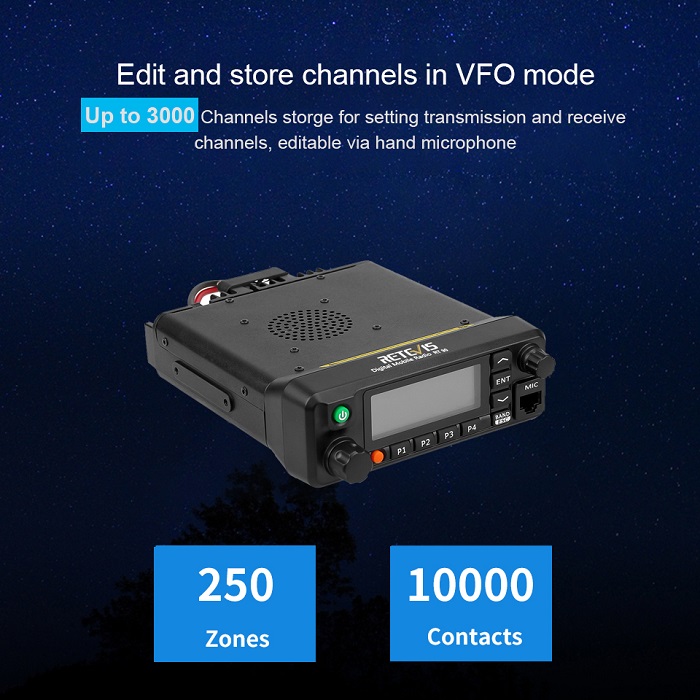

  • 5. 250 zone, 3000 channel, 10000 contacts
  • 6. Digital mode and Analog mode

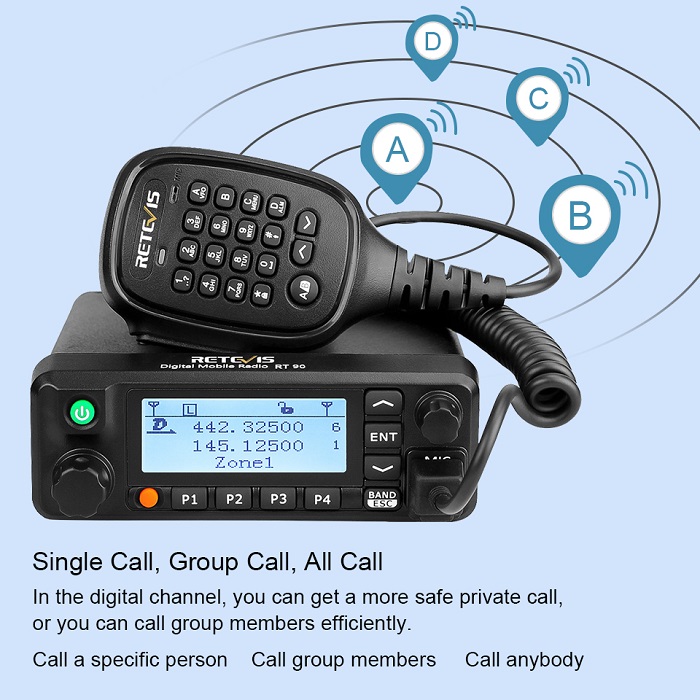

  • 7. Single call, group call and all call
  • 8. Emergency function
  • 9. Remote kill/stun/Activate
  • 10. Group match/single match
  • 11. Record function
  • 12. PC programmable function
  • 13. CTCSS.DCS encoding and decoding function
  • 14. PC password protection function
  • 15. Color LCD Display

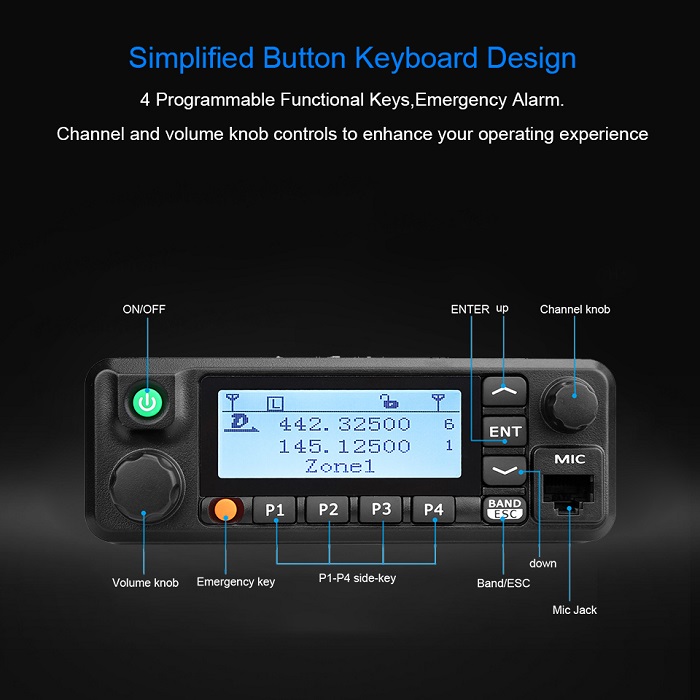

  • 16. Programmable functional keys
  • 17. Low Voltage prompt
  • 18. Upgradeable by firmware
  • 19. TOT
  • 20. SQL Setting
  • 21. Scanning Function and priority scanning
  • 22. Monitor Function
  • 23. VOX Transmitting
  • 24. Lone Worker
  • 25. Time and zone setting

RT90 Specification:

General
Frequency Range(MHz)
VHF: 136-174Mhz UHF:400-480Mhz
Channel
3000
PLL Channel Spacing
6.25/12.5/25KHz
Voltage Rating
DC 13.8V
Operating Temperature
-30℃~+60℃
Storage Temperature
-30℃ ~+85℃

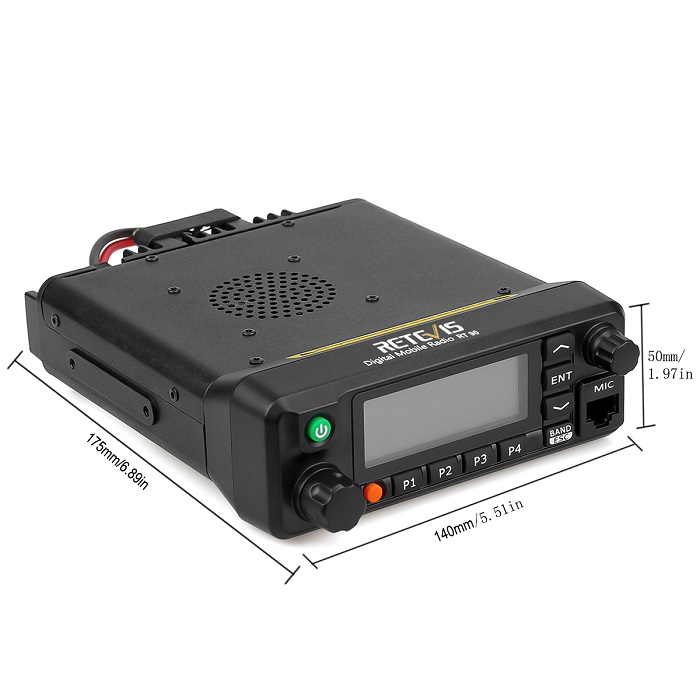

Dimention
143*50*175 mm
Compatible With American Military Standard
(MIL-STD-810C/D/E)
Transmitter
RF Power Output
L:25W H:50W (VHF)
L:25W H:45W (UHF)
FM Hum and Noise
-40dB -12.5KHz
-45dB -25KHz
Modulation limited
+/- 2.5KHz - 12.5 KHz
+/-5.0KHz -25KHz
Conducted/radiated emission
-36 dBm<1GHz
-30 dBm>1GHz <4GHz
Adjacent channel power
-60dB -12.5KHz
-65dB -25KHz
Audio Response
+1dB ~ -3dB
Audio distortion
3%
FM Modulation
12.5KHz:11KOF3E
 25KHz:16KOF3E
4FSK digital modulation
12.5KHz only date:7K60FXD
12.5KHz date and audio:7K60FXE
Digital protocol
ETSI TS 102361-1,-2,-3
Digital vocoder type
AMBE++
Digital agreement
DMR
Receiver
Frequency stability (-20℃ +60℃,+25℃)
+/-1.0ppm
Digital Sensibility
0.3uV/-117.4dBm (BER 5%)
0.7uV/-110 dBm (BER 1%)
Analogue Sensibility
0.35uV/-116dBm(20dB SINAD)
0.22uV/-120dBm(20dB SINAD)
Rated audio
5W
Adjacent Channel Selectivity
TIA603C:60dB- 12.5 KHz
ETSI: 60dB-12.5 KHz
Intermediation
TIA603C:65 dB
ETSI:65dB
C0-Channel Rejection
12dB -12.5KHz
Spurious Rejection
TIA603C:70dB
ETSI:70dB
Audio distortion - rated audio
≤3%
FM Hum and Noise
-40dB -12.5KHz
-45dB -25KHz
Audio response
+1dB~-3dB
Spurious emission
-57dBm-m<1GHz
-47dBm-m<1GHz
Bolck
84dB

















If you want to know more information about the Retevis RT90 dual band dmr mobile radio. feel free to contact us.
