Retevis RT95 Mobile Radio Front and Rear Panels Introduction

Retevis RT95 Mobile Radio Front and Rear Panels Introduction

We know that the RT95 is a dual band analog mobile radio. It is an amateur mobile radio. Today let learn something about its front and rear pannel design.

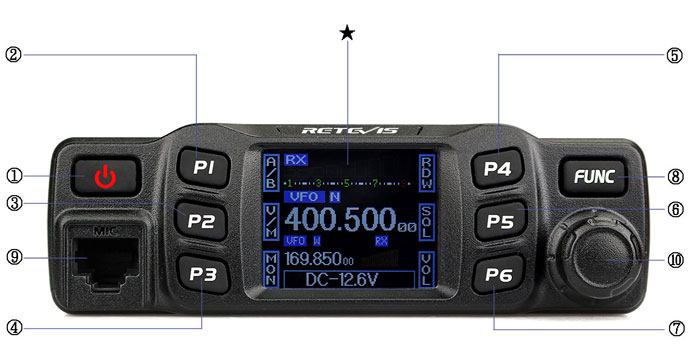

RT95 front panel.


1. ① Power ON/Off/Mute

2. ② ③ ④ ⑤ ⑥ ⑦ Self Define Key

3. ⑧ Function Key / Function Group Key

4. ⑨ Microphone Jack

5. ⑩ Channel Switch / Push Button / Key Lock

6. ★ Display Channel / Frequency / Function Setting

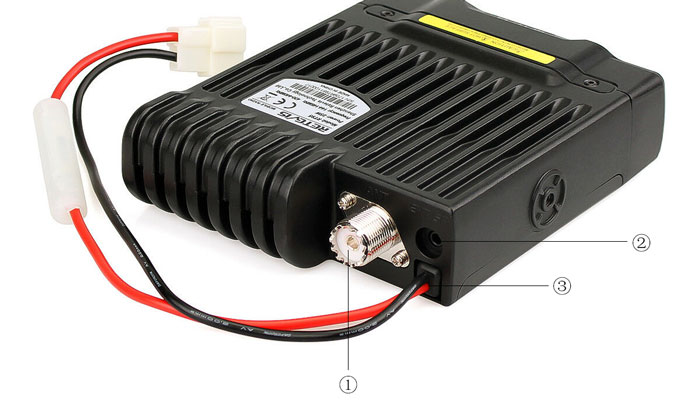

RT95 rear panel.


  1.   Antenna connector: Connect a 50 ohm antenna

  2.  ② Ex-Speaker: Jack Connect external speaker

  3.   Power cable: Connect a standard DC power cable

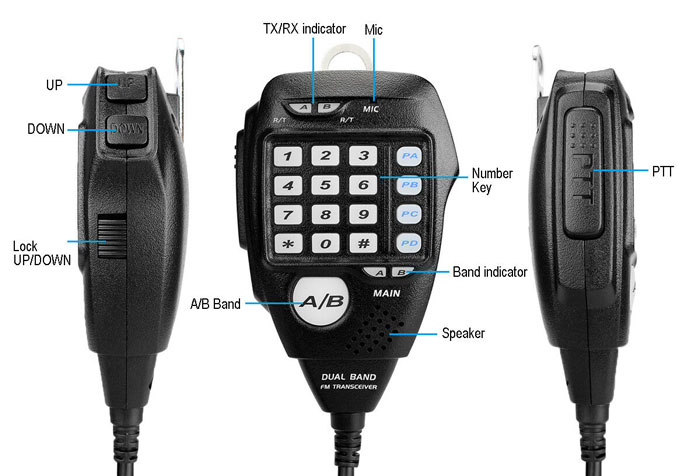

RT95 Speaker Mic


Key
Function
UpIncrease frequency, channel number or setting value
DownDecrease frequency, channel number or setting value
PTTPress the PTT (Push-TO-Talk) key to transmit
Number KeyInput VFO frequency or DTMF dial out etc.
A/B BandChoose left band or right band as Main band
Band IndicatorThe indicator light on for Main band
TX/RX IndicatorLight green while receiving, Light red while transmitting
MicSpeak here during transmission
Speaker

When shut the speaker in the base, you can hear the calling by

this speaker

Lock Up / Down

When this key is in up position, It is unlock UP/DOWN key, when

this key is in down poisition, UP/DOWN key will be locked
