Retevis RT95 Analog Ham Mobile Radio Transceiver

Retevis RT95 Analog Ham Mobile Radio Transceiver

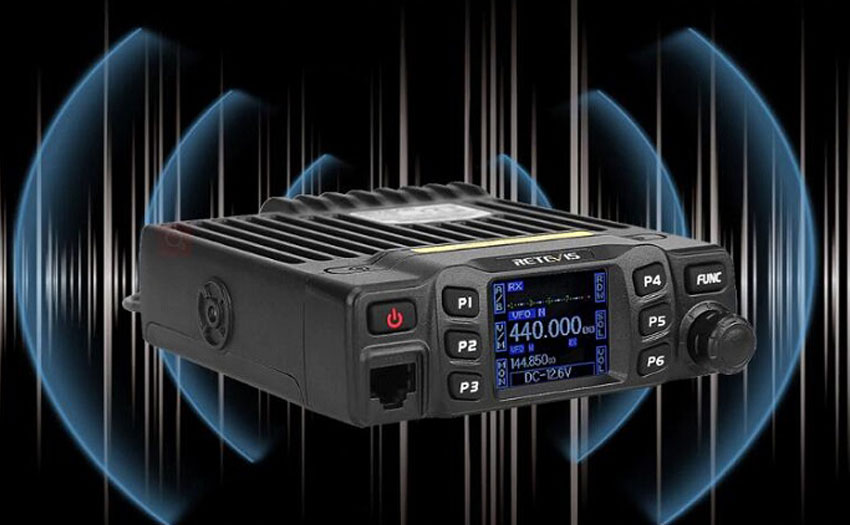

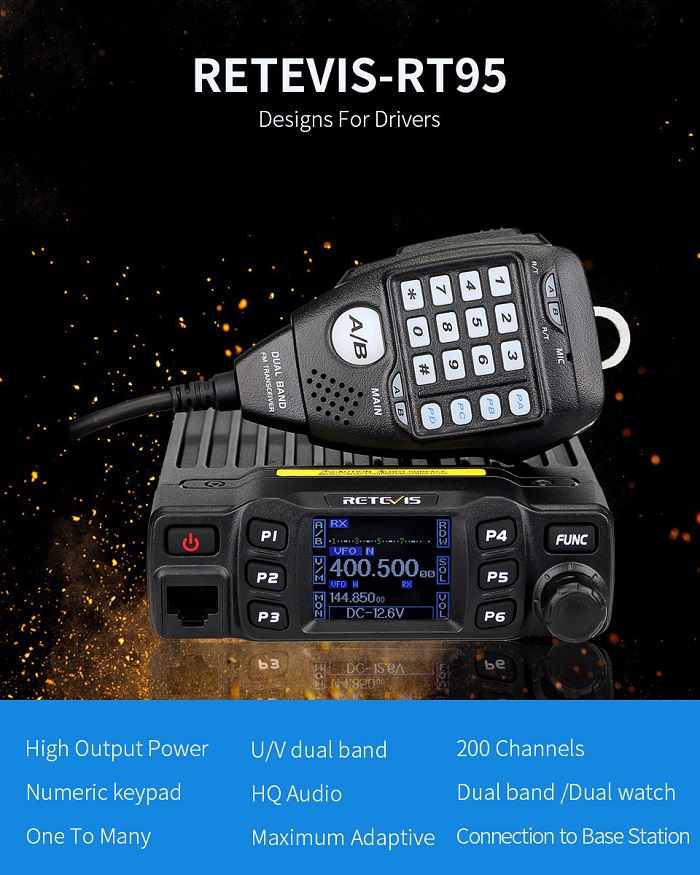

Retevis RT95 basic introduction

RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality.


Retevis RT95 main feature.

1. Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation

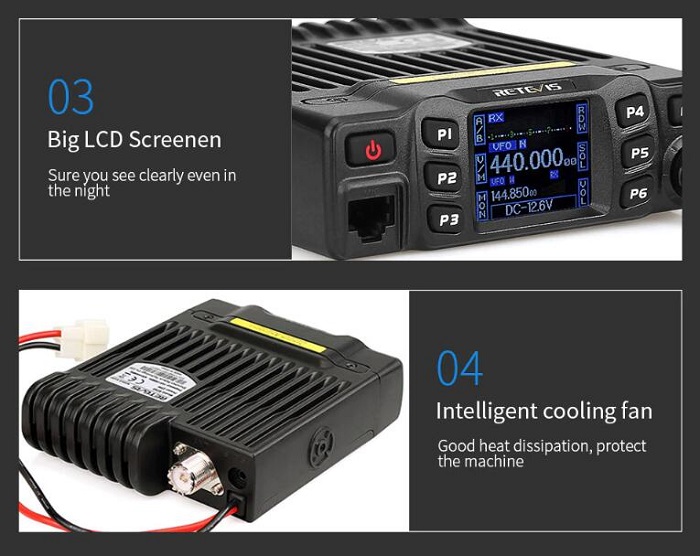

2. 180 degree rotatable TFT LCD display

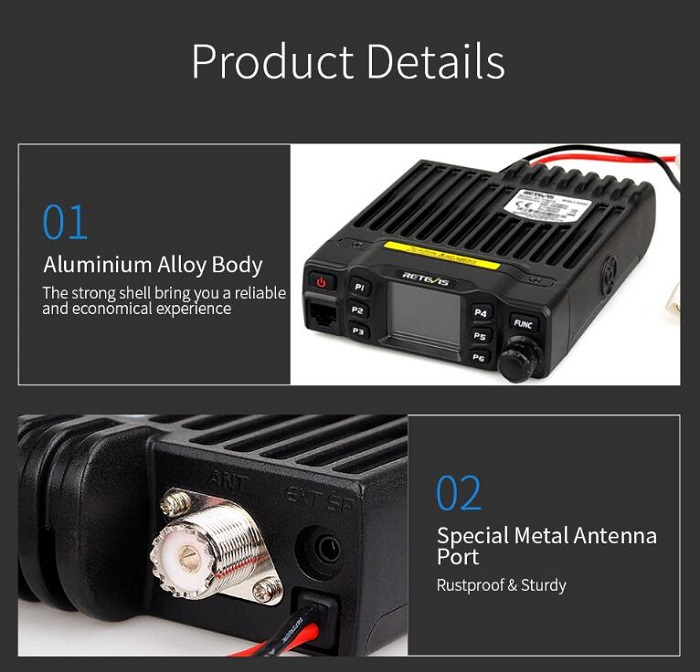

3. Full alloy body for heat radiation

4. Amateur mode and professional mode for different operation requirement

5. Distribute buttons reasonably, convenient for operation

6. Separate band width setting for each single channel, Wide 25K, Middle band20K, Narrow band 12.5K

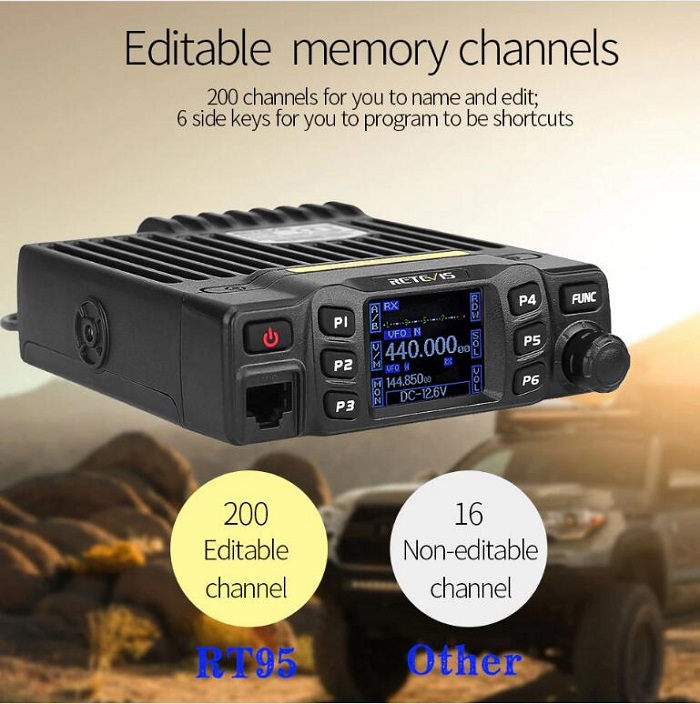

7. 200 programmable memory channels, identified by editing name

8. Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel,rejecting extra calling from other radios

9. Various scan functions including CTCSS/DCS scan function

10. Smart menu control and PC programming control

11. Voltage level protection

12. LCD brightless control

13. Automatic power on function

14. Main unit and microphone key lock function

15. 5Tone signaling for data transfer,alarm, all call, ANI, remote kill, remote waken

16. DTMF-ANI or 5Tone-ANI for automatical calling recognition

17. Password function

18. Dualwatch function

19. Talk around function

20. Frequency reverse function

21. Offset function



Retevis RT95 basic specifications

GENERAL

Frequency Range

VHF:144-148MHz UHF: 430~440MHz

Number of Channels

200 channels

Channel Spacing

25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band)

Phase-locked Step

2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 20KHz, 25KHz, 30KHz, 50KHz

Operating Voltage

13.8V DC±15%

Squelch

Carrier/CTCSS/DCS

Frequency Stability

±2.5 ppm

Operating Temperature

-20℃~+60℃

Dimensions(mm)

124 (W) x 163(D) x 39 (H)

Weight

about 0.64Kg

TRANSMITTER


Wide band

Narrow band

Sensitivity (12dB Sinad)

≤0.25μV

≤0.35μV

Adjacent Channel Selectivity

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~2.55KHz)

Hum & Noise

≥45dB

≥40dB

Audio distortion

≤5%

Audio power output

>2W@8

RECEIVER


Wide band

Narrow band

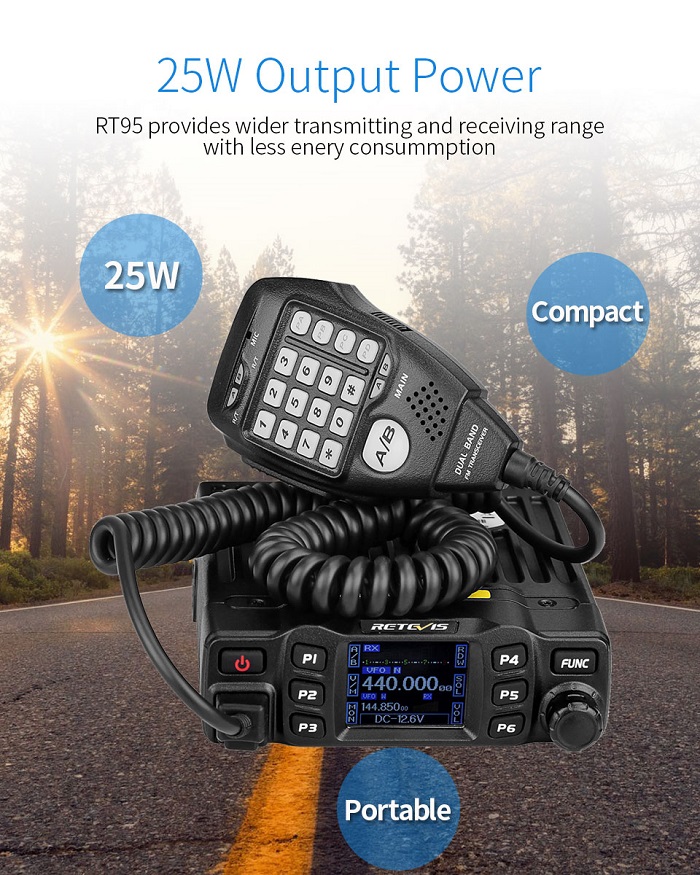

Power Output

25W / 15W / 5W

Modulation

16KΦF3E

11KΦF3E

Adjacent Channel Power

≥70dB

≥60dB

Hum & Noise

≥40dB

≥36dB

Spurious Emission

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~- dB(0.3~2.55KHz)

Audio Distortion

≤5%

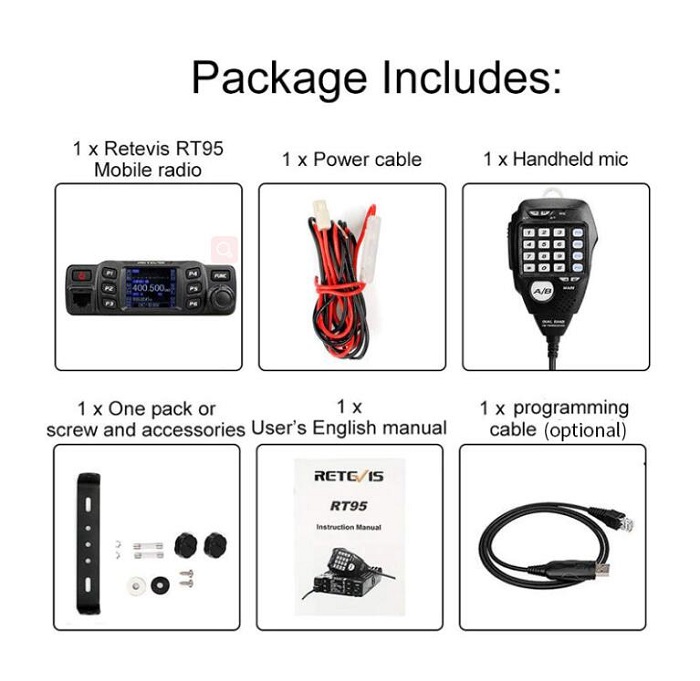

RT95 Package include:

1x Mobile radio

1x Power cable

1x Handheld mic

1x One pack of screw and accessories

1x User's manual

1x Programming Cable (optional)
