How to enter standby, DFU, initialization mode?

How to enter standby, DFU, initialization mode?

Standby mode

How to enter the mode?

=>Rotate power knob to turn on Ailunce HD1 normally

What shows it's successful to enter the mode?

=>The indicator light will turn red in short time.

     The disply will show Poweron logo, then stay on the current standby channel.

When do you need to enter the mode?

=>Our radio is always in the mode. In the mode, we can transmit, receive the radio signal and program the radio.

DFU mode

How to enter the mode?

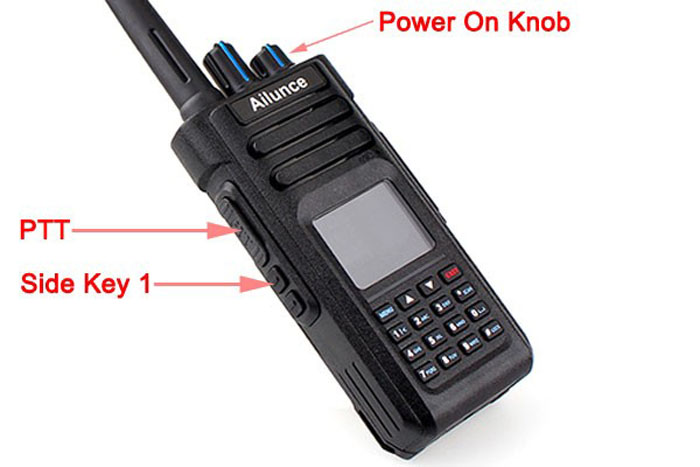

=>Press PTT and sidekey 1, rotate power knob to turn on Ailunce HD1 at the same time.

DFU mode-Ailunce HD1.jpg

What shows it's successful to enter the mode?

=>The indicator light shows red all the time;

     The disply is off and show nothing.

When do you need to enter the mode?

=>If you want to upgrade the firmware of Ailunce HD1, please enter the DFU mode first.

Initialization mode

How to enter the mode?

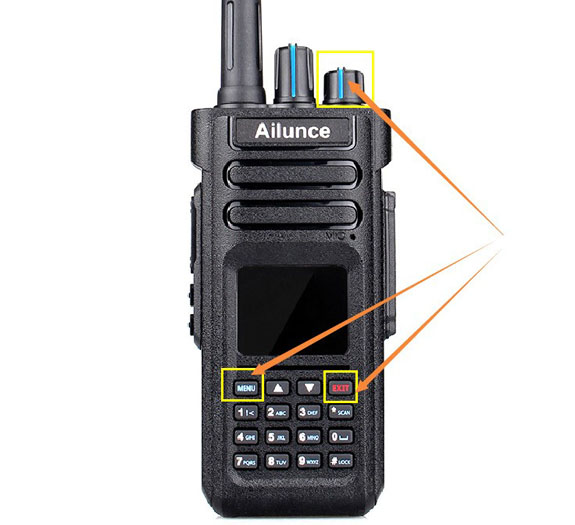

=>Press MENU and EXIT, rotate power knob to turn on Ailunce HD1 at the same time.

Initialization mode-Ailunce HD1.jpg

What shows it's successful to enter the mode

=>The indicator light will turn red in short time.

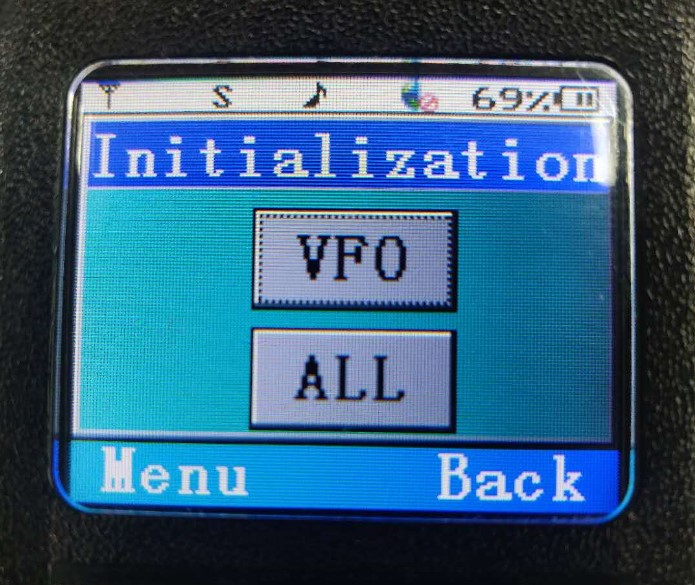

     The disply show Poweron logo, then stay on the Initialization interface as below.

Initialization mode-Ailunce.jpg

When do you need to enter the mode?

=>If you want to reset your Ailunce HD1 to factory, please enter the mode at first. Then select VFO to initialize setting items except for channel information, and select ALL to initialize all.
