You Deserve to Have Ailunce HS2 Shortwave HF SDR Transceiver

You Deserve to Have Ailunce HS2 Shortwave HF SDR Transceiver

Ailunce HS2 is an ultra-portable full-frequency full-mode SDR radio. Receive frequency coverage 300K~1.6GHZ. The built-in network port can realize remote operation and remote firmware upgrade.

The HAM-BOX mobile app we developed allows the mobile phone to easily control and play radio stations(the app is still under development, any progress we will post on Ailunce website).

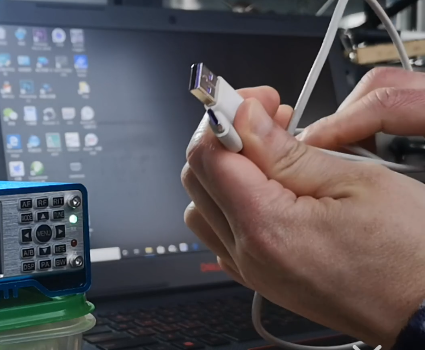

Ailunce HS2 adopts a full keyboard design, built-in Bluetooth module, sound card module, and serial communication port module. Full support for currently popular radio control software and logging software.  HS2 support: N1MM, FT8, HRD, SDRNUO, Airspy.  when using this SDR software only need a Type-C USB cable to connect to your computer is okay.

We are working hard to give you more playable space.

Features

1. Real-time spectrum. 11. Built-in FLASH memory.
2. Waterfall chart. 12. USB TYPE-C interface for power supply and computer connection.
3. Doppler frequency tracking. 13. High precision TXCO ± 0.5ppm (-10-60 ℃).
4, using software-defined radio technology 14. Ultra-wide working voltage range: 5-32VDC.
(SDR), full-band support SSB, CW, RTTY, AM, FM. 15. power supply reverse connect protection.
5. Double frequency conversion circuit structure. 16. Built-in GPS / BeiDou, GSM, electronic compass (acceleration, angle sensor) (optional).
6. IF width and IF shift hardware and software can be modified to provide powerful IF interference suppression. 17. GPS time service (requires optional GPS module).
7. DSP digital noise reduction. 18. Built-in UTC clock.
8. Built-in 160-6 meters high-speed automatic antenna tuner. 19. Voltage display.
9. Built-in electronic key controller, all parameters can be set flexibly. 20. Unique LORA data transmission (requires optional LORA module).
10. Built-in sound card with IQ and audio output. 21. Ultra-lightweight: ≤1KG.
22. Built-in remote operation so, remote firmware update.

Standard Module

Optional  Module

FM module GPS module
Bluetooth module LORA module
Bluetooth microphone Electronic compass module
Built-in sound card Wired microphone
Built-in automatic antenna tuner Shortwave balcony antenna
Built-in memory External frequency wheel (under development)

Transmitter Parameters

Transmitter Architecture SDR
Transmission Mode SSB, CW, RTTY, AM, FM
Frequency Resolution  1Hz
Transmit Frequency Range*1 1.800-2.000,3.500-3.900,5.351.5-5.366.5, 7.000-7.200, 10.100-10.150, 14.000-14.350,
18.068-18.168,21-21.450,24.890-24.990, 28-29.7,50-54, 144-146, 430-440MHz
Output Power HF+6m:SSB(1~20W),CW(0.1~20W),
VHF: SSB/CW/FM(0.5~5W), FM(0.1~20W)
UHF:SSB/CW/FM(0.5~5W), AM(1~5W)
Power Consumption TX:13.8V~5A
RX:13.8V~0.25A(Normal),0.35A(Max brightness&Highest audio)
Carrier Suppression <50db
Spurious Suppression 1.8—54MHZ: ≥50db
144—146MHZ: ≥60db
430—440MHZ: ≥60db
Memory Channel 999

Receiver Parameters

Receiver Architecture SDR
Receiver Mode SSB, CW, RTTY, AM, FM
Receive Frequency Range 300KHz-1.6GHz*2
IF Bandwidth 20KHz
IF 12KHz
Sensitivity*3 SSB/CW:(BW: 2.4kHz @ 10dB S/N)
0.18uV(1.8—54MHZ),
0.25uV(144—146MHZ),
0.25uV(430—440MHZ)
AM:( BW: 6kHz @ 10dB S/N)
15uV(0.3—1.8MHZ),
2uV(1.8—54MHZ),
2uV(144—146MHZ),
2uV(430—440MHZ)
FM:(BW: 15kHz @ 12dB S/N)
0.5uV(28.0—29.7MHZ),
0.25uV(50—54MHZ),
0.3uV(144—500MHZ),
0.5uV(430—440MHZ)
IF Suppression ≥70db
Image Suppression ≥80db
Audio Output Power 2W (10% distortion rate, 8Ω load, 3KHZ)

Antenna tuner parameters

Tuning frequency range 1.8-54MHZ
Tuning impedance range 16.7Ω--150Ω unbalanced (SWR is better than 1: 3)
Tuning accuracy VSWR: 1: 1.5 or less
Tuning time 2-5S (full segment 10S)
Tuning method Automatic / Manual

Spectrum parameters

Spectrum bandwidth 48K
RF Spectrum FFT
Structural parameters
Size 170X120X45mm (excluding protrusions)
Weight  <1KG

Working voltage parameters

Voltage range 5—32V receiving range,
5-12V transmit power limit,
12-18V full power output,
18-32V transmit power limit.

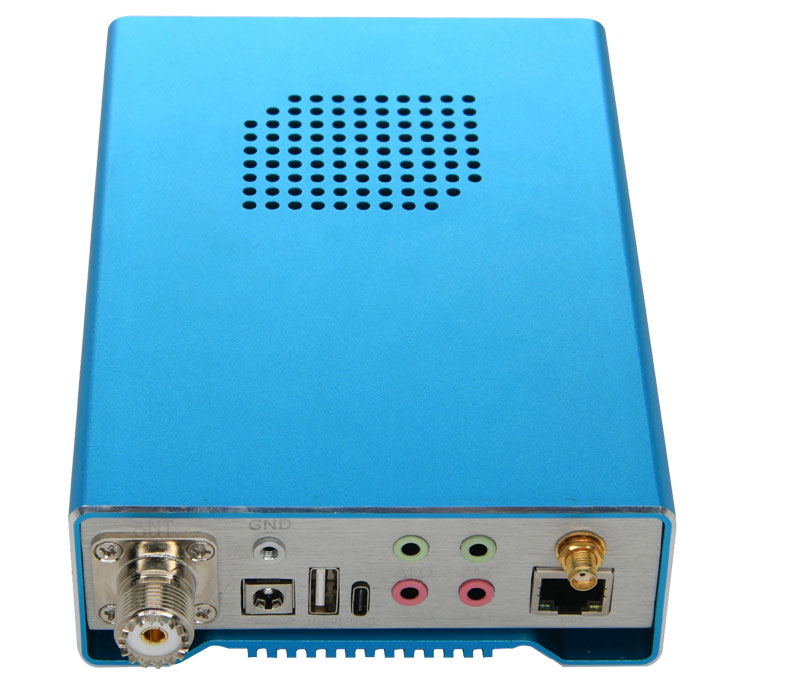

Antenna interface
Antenna interface TNC/BNT/M/N (optional)
Working environment parameters
Working temperature -10 ℃ to 60 ℃
Working humidity 10% -- 90%

Note *1: Frequency range is different according to different countries or areas, the actual frequency by local legal provisions.

Note *2: Data retention.

Note *3: to be calibrated, the final interpretation of all manufacturers.


Comments

Comment user

David

Will the radio be able to be controlled over the LAN port with audio etc using open source software ? SDR#, SDR Console, SharpSDR etc

Comment author

Yolanda Author

Temporarily Unsupported

Comment user

David

Thank you, I assume then it'll be coming in future firmware updates?

Comment user

Neil Watson

Is there a version that includes (TX) coverage of 4m band (in EU country allocations cover between 69.875 - 70.5Mhz - see Wikipedia 4-meter band article for details) Also is there more detail on what the LoRa module does?

Comment author

Yolanda Author

thanks for your feedback, we will consider it, now the HS2 doesn't support 4m band. 73

Comment user

Axel

Hi, my question: What is the Power in Watt at 145 MHZ and 50 MHZ? Regards, Axel

Comment author

Author

UV band 5w, HF band 20w.

Comment user

Axel

Hi, I found a Check of the Power on the bands, see youtube.com/watch?v=XniT8VYvnUs 1,5 Watt for example is quite low for real QSOs on 50 MHZ 9 Watt on the 15 Meter Band is far away from 20 Watt Has Ailunce HS2 changed the Power Output? Who is wrong?

Comment author

Yolanda Author

Hello, we have tested it, the power is 16~20w when in HF band.

Comment user

Martin Smith

Your specification shows HF bands maximum as 20w. Anything lower and it doesn't meet you published specifications ! I am fully testing now into a dummy load but it looks like most bands are out of specification. The indicated power out is also incorrect. I wonder if this indication is used to feedback what the power output drive should be. This might explain the low power.

Comment author

Yolanda Author

when you use 13.8v, the high power can reach 20w. if you use the battery is more than 13.8v, the power will higher. 73

Comment user

Tomasz

Hello I need information about the ACC and LAN socket. How to connect external power amp with automatic band swith? How to configure lan interface to remote work with SH2. THX Tom

Comment author

Author

You refer to those open source file. https://www.ailunce.com/Support/HS2/UserManual

Comment user

Tomasz

Hello, thank you for the answer, but unfortunately it is not exhaustive. There is no information that I am asking about in the link. No detailed instruction manual - specification. In addition, I would like to receive information on how to connect the radio to the LAN. In my case, after connecting the LAN cable to the radio, there is no interaction, the network scanner does not detect the radio in the network, the router works in DHCP mode. The indicated documentation is insufficient. When placing a commodity on the market, you should try harder. As of today, my satisfaction with the product will run from one day to the next after another radio test.

Comment user

Thomas Webster

Today (Aug 1) I received my HS2. Many thanks for the early delivery. I will spend the next few weeks checking it out. Maybe get the GPS and Compass modules too. :) Thanks again!

Comment user

Domi

My GPS unit don't work at this moment and I don't how and where download the HAM-BOX remote control APP. Also I need info about how works the ACC socket for PA connection and I need schematic Diagram. Rig works well and It has many nice features for his price. Excellent audio and reception! Continuing make it better in next firmware!! Thanks in Advance! Take Care Domi EA1W

Comment author

Author

Hello, the ham-box is not available now. We are speeding up the develpoment, and will release it asap. about the connector, we have release the control protocal, you can download it from HS2 support page. 73

Comment user

Bryan Glispie

Does the HS2 support PL (Sub-Audible Tone) Encode & Decode for FM starting on 29MHz and above? Is there an external battery unit available? Charger? When is it available in the USA? Does it use any extra BW Filter (CW & SSB) options? Thank you

Comment author

Yolanda Author

Do you mean CTCSS? HS2 supports CTCSS for FM. There is no external battery for HS2.

Comment user

Matthias Sittinger

When can i expect my order finish for delivery? Thanks

Comment author

Yolanda Author

We will arrange the shipment this month. Thanks.

Comment user

Roy Wyer

Price??? Where can it be ordered from??

Comment user

Domenico Dal Mas

Quanto costa ? La gamma in ricezione è fino a 1,6 ghz?

Comment author

Yolanda Author

Yes, but only the common frequencies effect are good.

Comment user

Eric Levesque

do you made US version tx= 144 to 148 and 430 to 450...? and MARS MOD..?
