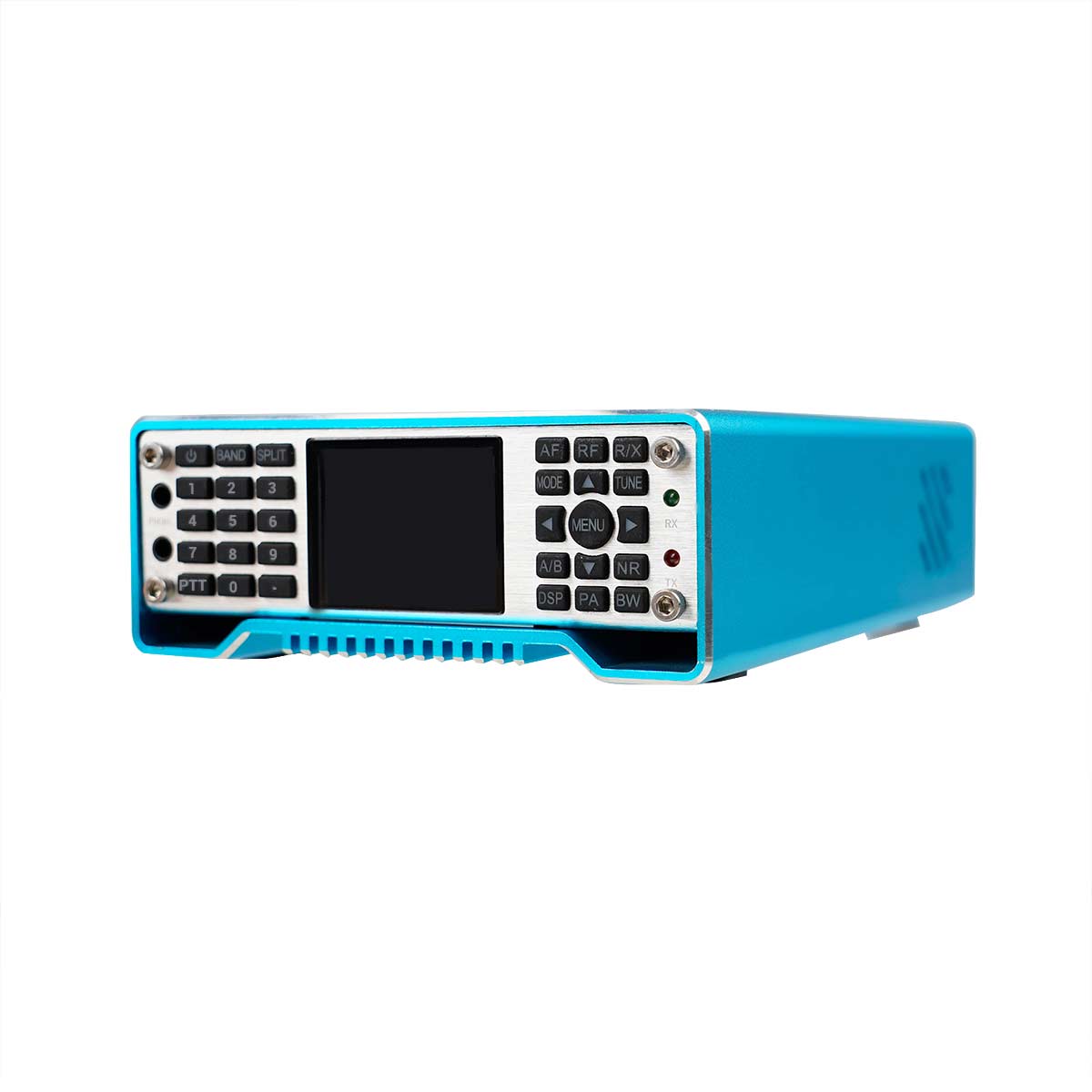

HS2 is an ultra-portable full-frequency full-mode SDR radio. Receive frequency coverage 300K~1.6GHZ. The built-in network port can realize remote operation and remote firmware upgrade. The HAM-BOX mobile app(for the android system) we developed allows the mobile phone to easily control and play radio stations(the app is still under development, any progress we will post on ailunce website). HS2 adopts a full keyboard design, built-in Bluetooth module, sound card module and serial communication port module. Full support for currently popular radio control software and logging software. We are working hard to give you more playable space.
We will continue to update the firmware to improve the functions, If you strive for perfection, please think twice before placing an order.
Function Feature:
- Real-time spectrum.
- Waterfall chart.
- Doppler frequency tracking(under development).
- Using software-defined radio technology (SDR), full-band support SSB, CW, RTTY, AM, FM.
- Double frequency conversion circuit structure.
- IF width and IF shift hardware and software can be modified to provide powerful IF interference suppression.
- DSP digital noise reduction.
- Built-in 160-6m high-speed automatic antenna tuner.
- Built-in electronic key controller, all parameters can be set flexibly.
- Built-in sound card with IQ and audio output.
- Built-in FLASH memory(under development).
- USB TYPEC3.1 interface for power supply and computer connection.
- 13. High accuracy of TXCO ± 0.5ppm (-10-60 ℃).
- 14. Ultra-wide working voltage range: 5-32VDC.
- Power Reversed Polarity Connection Protection
- Built-in GPS / Beidou, GSM, electronic compass (acceleration, angle sensor) (optional)
- GPS time (requires optional GPS module).
- Built-in UTC clock.
- Voltage display.
- Unique LORA data transmission (requires optional LORA module).
- Ultra-lightweight: ≤1KG
- Built-in network port, support remote firmware upgrade(Pay to use, under development, not available).
Configuration
| Standard Configuration | Option Configuration |
| FM module | GPS module |
| Bluetooth module | LORA module |
| Wired microphone | Electronic compass module |
| Built-in sound card | Bluetooth microphone |
| Built-in automatic antenna tuner | Shortwave balcony antenna |
| Built-in memory | External frequency wheel(under development) |
HS2 Technical Data
| Transmitter Parameters | |
| Transmitter Architecture | SDR |
| Transmission Mode | SSB, CW, RTTY, AM, FM |
| Frequency Resolution | 1Hz |
| Transmit Frequency Range*1 | 1.800-2.000Mhz, 160m3.500-3.900Mhz, 80m5.351.5-5.366.5Mhz, 60m 7.000-7.300Mhz, 40m10.100-10.150Mhz, 30m14.000-14.350Mhz, 20m18.068-18.168Mhz, 17m 21-21.450Mhz, 15m24.890-24.990Mhz, 12m 28-29.7Mhz, 10m 50-54Mhz, 6m 144-146/148Mhz, 2m430-450MHz. 70cm |
| Output Power | HF+6m:SSB(1~20W),CW(0.1~20W), FM(0.1~20W), AM(1~5W),VHF: SSB/CW/FM(0.5~5W)UHF:SSB/CW/FM(0.5~5W) |
| Power Consumption | TX:13.8V~5ARX:13.8V~0.25A(Normal),0.35A(Max brightness&Highest audio) |
| Carrier Suppression | <50db |
| Spurious Suppression | 1.8—54MHZ: ≥50db 144—146MHZ: ≥60db 430—440MHZ: ≥60db |
| Memory Channel | 999 |
| Receiver Parameters | |
| Receiver Architecture | SDR |
| Receiver Mode | SSB, CW, RTTY, AM, FM |
| Receive Frequency Range | 300KHz-1.6GHz*2 |
| IF Bandwidth | 20KHz |
| IF | 12KHz |
| Sensitivity*3 | SSB/CW:（BW: 2.4kHz @ 10dB S/N）0.18uV（1.8—54MHZ）, 0.25uV（144—146MHZ）, 0.25uV（430—440MHZ）AM:（ BW: 6kHz @ 10dB S/N）15uV（0.3—1.8MHZ）, 2uV（1.8—54MHZ）, 2uV（144—146MHZ）, 2uV（430—440MHZ）FM:（BW: 15kHz @ 12dB S/N）0.5uV（28.0—29.7MHZ）, 0.25uV（50—54MHZ）, 0.3uV（144—500MHZ）, 0.5uV（430—440MHZ） |
| IF Suppression | ≥70db |
| Image Suppression | ≥80db |
| Audio Output Power | 2W (10% distortion rate, 8Ω load, 3KHZ) |
| Antenna tuner parameters | |
| Tuning frequency range | 1.8-54MHZ |
| Tuning impedance range | 16.7Ω--150Ω unbalanced (SWR is better than 1: 3) |
| Tuning accuracy | VSWR: 1: 1.5 or less |
| Tuning time | 2-5S (full segment 10S) |
| Tuning method | Automatic / Manual |
| Spectrum parameters | |
| Spectrum bandwidth | 48K |
| RF Spectrum | FFT |
| Structural parameters | |
| Size | 190X120X45mm (excluding protrusions) |
| Weight | ＜1KG |
| Working voltage parameters | |
| Voltage range | 5—32V receiving range,5-12V transmit power limit,12-15v UV full power output, 12-18V HF full power output,15/18-32V prohibits transmit. |
| Antenna interface | |
| Antenna interface | TNC/BNT/M/N (optional) |
| Working environment parameters | |
| Working temperature | -10 ℃ to 60 ℃ |
| Working humidity | 10% -- 90% |
Note *1: Frequency range is different according to different countries or areas, the actual frequency by local legal provisions.
Note *2: Data retention.
Note *3: to be calibrated, the final interpretation of all manufacturers.
