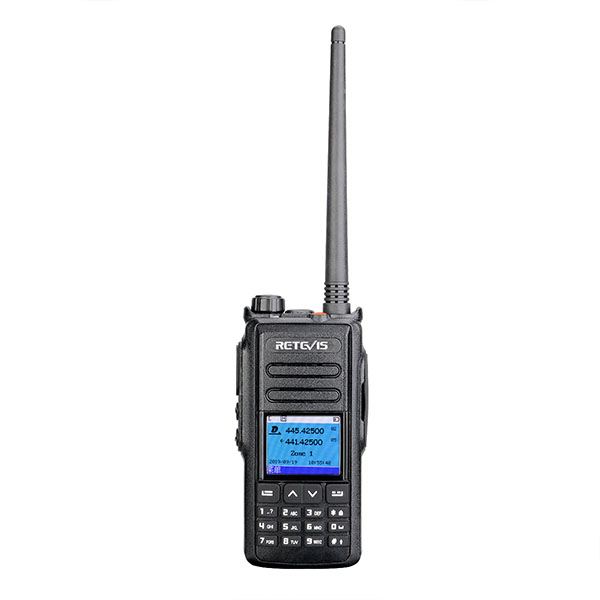

Retevis RT72 Digital GPS Dual Band DMR Radio

Retevis RT72 Digital GPS Dual Band DMR Radio

Retevis RT72 is an upgrade model of Retevis RT84, it has GPS function and supports 130,000 digital contacts.


Main Features

1. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly

2. Dual Band VHF 137-174MHz & UHF 400-470MHz

3. GPS Function:Support  longitude & latitude position

4. Analogue & Digital Mode

5. 1024 Storage Channel

6. Dual Time Slot, Tier I &II

7. Group Call/Private call

8. Dual Display

9. VOX Function

10. Frequency Step:2.5/5/6.25/10/12.5/20/25/k

11. Scan

12. 16 groups color code seletable

13. 1800mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack

14. SMS message

15. Support manually programming and PC programming

16. High/Medium/Low Power seletable

17. Frequency/Channel Mode Selectable


Description

Output power  Max 5watts
Operating Voltage  DC 7.4V
Frequency Stability  ±1.0ppm
Operating Temperature  -30°c ~ 60°c
Battery Capacity  1800mAh/16.28wh
Weight  about 274g(with battery & antenna)
Warranty  12 Months
Antenna Impedance  50Ω
Frequency Range  VHF 136-174MHz/UHF 400-470MHzDescription


Transmitting

Output Power  1W/5W

Digital  Tier i&ii

Adjacent channel  ≤-65dB/≤-60dB

Modulation Distortion  ≤5%

Digital Protocol  etsi-ts102 361-1,-2,-3

Vocoder type  AMBE+2TM


Receiving

Analog sensitivity  -122dBm (12dB SINAD)

Digital sensitivity  -120dBm (BER ≤5%)

Audio Power  1W

Audio Distortion  <10%

Inter-mediation  ≥62dB / ≥ 58dB

Adjacent channel selectivity  ≥65dB /≥60dB

Receiving current  ≤380mA

PM Noise   ≥ 45dB*25KHz; ≥ 40dB*12.5KHz
