How to program DMR channel on Ailunce HD1 for newbie

How to program DMR channel on Ailunce HD1 for newbie

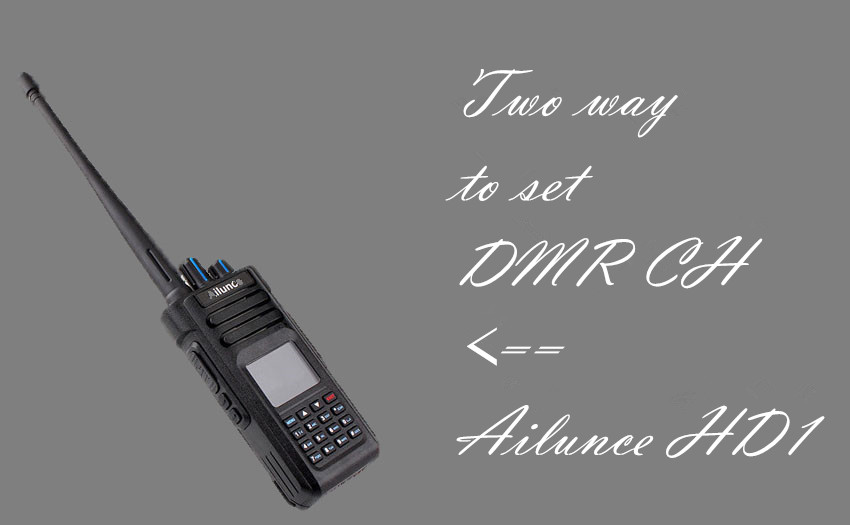

Same as anolog channel setting, there are two ways to set DMR channel. One is setting in software on PC, the other is setting on the radio via the keypad directly.

How to set DMR channel in software?

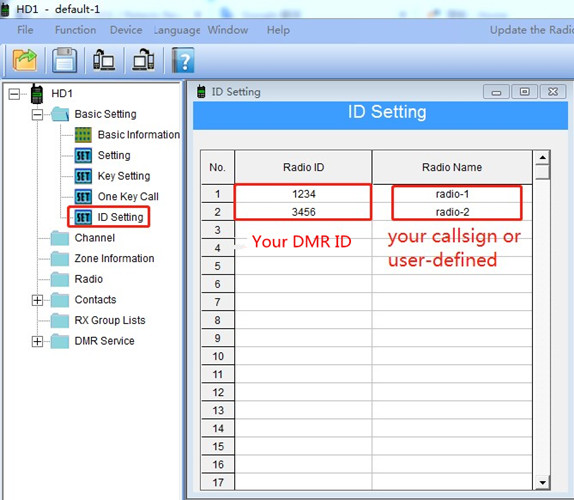

  • DMR ID Setting

    ID setting in software-Ailunce HD1.jpg

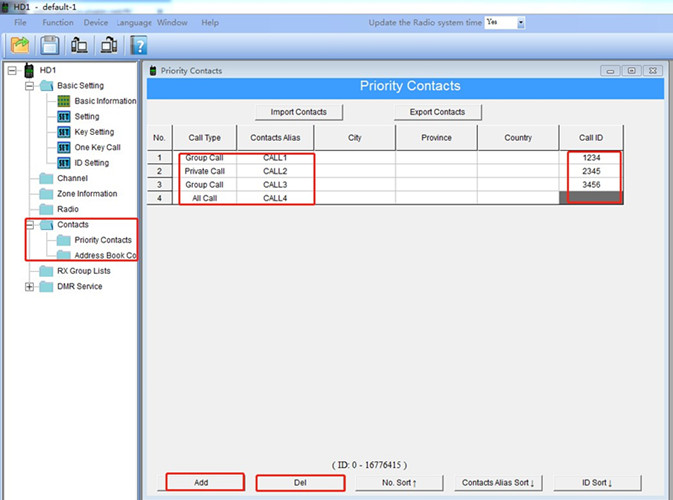

  • DMR contact list

    contact setting in software-Ailunce HD1.jpg

  • Channel Information Setting

    DMR channel setting-Ailunce HD1.jpg

    When you want to communicate with another radio in DMR, you need to have same TX, RX Frequency, Slot, Colour Code. Besides these setting, your need to select an available DMR ID, same contact of group call, or eachother's contact of private call. If you want to listen to more channel, you can set RX group list in reference to the blog as below.

    https://www.ailunce.com/blog/How-to-set-Rx-group-on-Ailunce-HD1

    How to set DMR channel on Ailunce HD1?

    1. Turn on your radio and switch to VFO mode; long press the "EXIT" key to switch to DMR mode; Input the RX frequency via the number keypad; Via Shift Up and Shift Freq to select simplex mode or repeater mode.

    2. Menu=>Radio ID, click Confirm to edit local radio ID Number and Name via front keypad;

    3. Menu=>Contacts=>Contacts, rotate the channel knob to edit contact ID Number and Name via front keypad;

    4. Menu=>Band A/B Set, then click Shift Up, Shift Freq(TX-RX(RX,TX of radio)), Color Code, DMR Mode, DMR Slot, Radio ID, Contacts to confirm the channel setting detail;

    5. Menu=>Main Set=>Save CH


    Any question please leave a message, or email to us: hams@ailunce.com.
