Mini Mobile Ham radio 15W amateur radio transceiver RT98

Mini Mobile Ham radio 15W amateur radio transceiver RT98

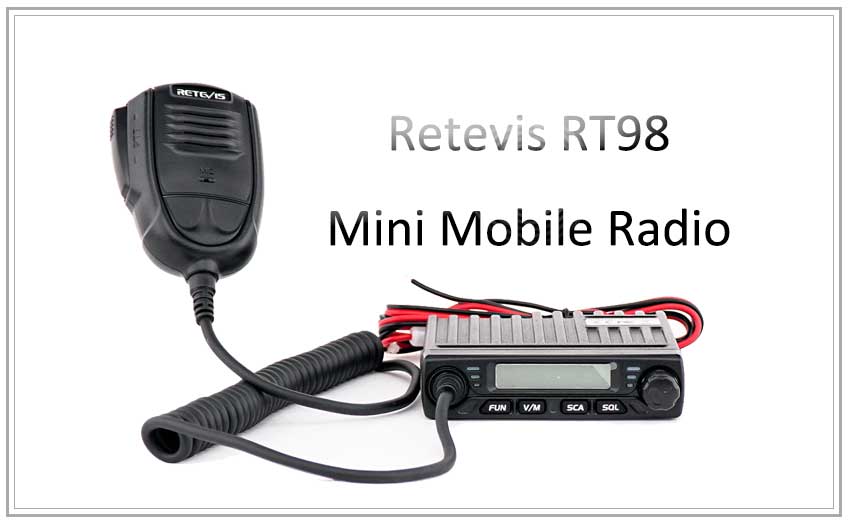

Retevis RT98 Mini Mobile Radio UHF 400-490MHz Transceiver 15W Two Way Radio

This mini amateur mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality.

This new Micro-sized mobile car radio, will be the best choice for hams and drivers.

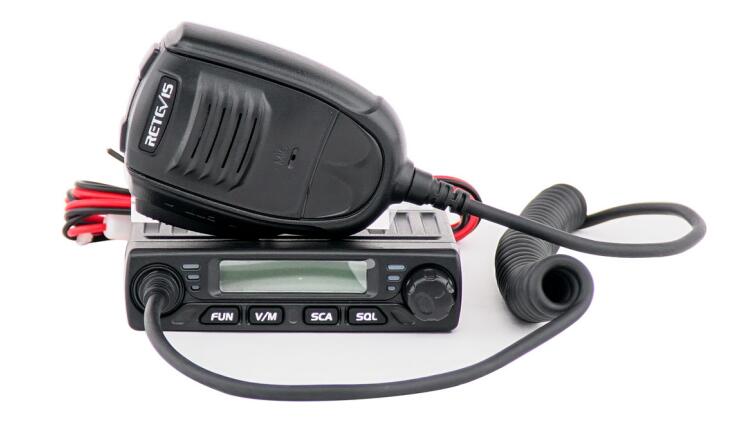

mini mobile radio RT98.jpg

Retevis RT98 Features:

  1. Mini size and light weight, easy to install

  2. Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation

  3. There are Amateur operation mode and Professional operation mode for option

  4. 199 programmable memorized channels, identified by editing name

  5. Various scan functions including CTCSS/DCS Scan function

  6. Automatic calling Identification function by CTCSS or DCS signaling

  7. Different band width per channel, 25K for wide band, 12.5K for narrow band

  8. Frequency Step 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K, 50K

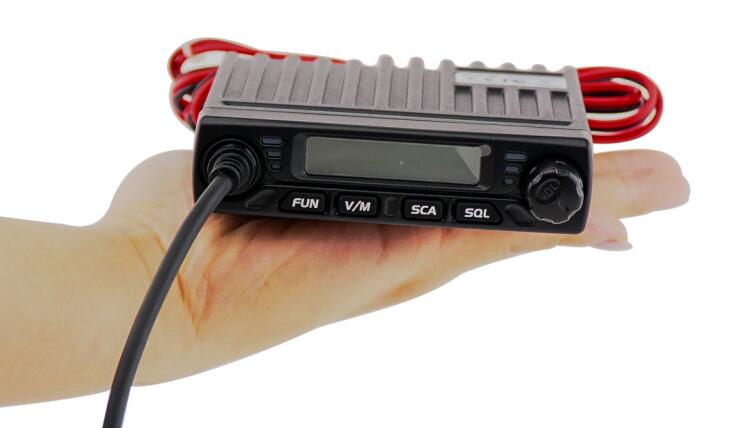

mini mobile radio RT98-1.jpg

Retevis RT98 Specification:

GENERAL

Frequency range

UHF 400-490MHz

Number of Channels

199 channels

Channel Spacing

25KHz(Wide Band) 12.5KHz(Narrow Band)

Phase-locked Step

2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K

Operating Voltage

13.8V DC ±15%

Squelch

Carrier/CTCSS/DCS

Frequency Stability

±2.5ppm

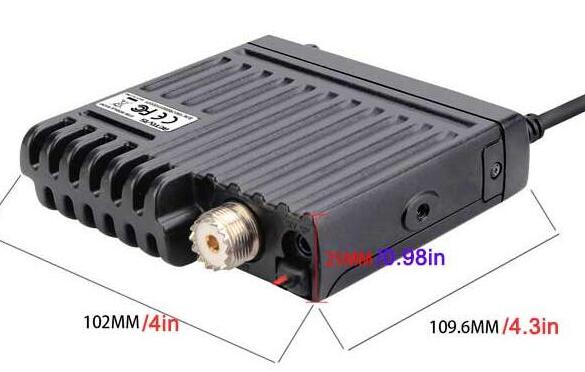

Size

100*106*24mm

Weight

434g

RECEIVER


Wide Band

Narrow Band

Sensitivity (12dB SINAD)

≤0.25μV

≤0.35μV

Adjacent Channel
Selectivity

≥60dB

≥60dB

Intermodulation

≥60dB

≥60dB

Spurious response

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~3KHz)

Hum & Noise

≥45dB

≥40dB

Audio Distortion

≤5%

Audio Power Output

>2W@16R

TRANSMITTER


Wide Band

Narrow Band

Power Output

15W / 10W / 5W

Modulation

16KφF3E

11KφF3E

Adjacent Channel Power

≥70dB

≥60dB

Hum & Noise

≥40dB

≥36dB

Spurious Emission

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~3KHz)

Audio Distortion

≤5%

mini mobile radio RT98-2.jpg

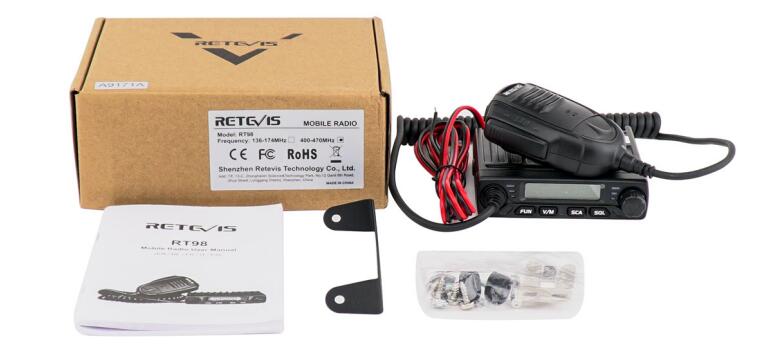

Retevis RT98 Package Includes:

1 x RT98 Mini Mobile car radio
1 x Install bracket
1 x Fuse
2 x Non-slip mat
1 x Microphone Hanger
2 x Adjusting screws
4 x Screws
4 x Pads
1 x User manual

mini mobile radio RT98-3.jpg

Click to buy: Retevis RT98

If you have any other questions, feel free to leave messages to us.
