Learn the Two Way Radio Production Process with Ailunce

Learn the Two Way Radio Production Process with Ailunce

Have you gone to the factory to see the two-way radio production? Here Ailunce will take you to learn the production process.

We take an example of the Retevis RT47. RT47 is a license-free IP67 radio.

Two Way Radio Production Process

SMT Patch

The first step is the SMT Patch. Before starting the SMT patch, we need to adjust the equipment to adapt on all parameters.


Equipment Commissioning

SMT-Patching ailunce.jpg

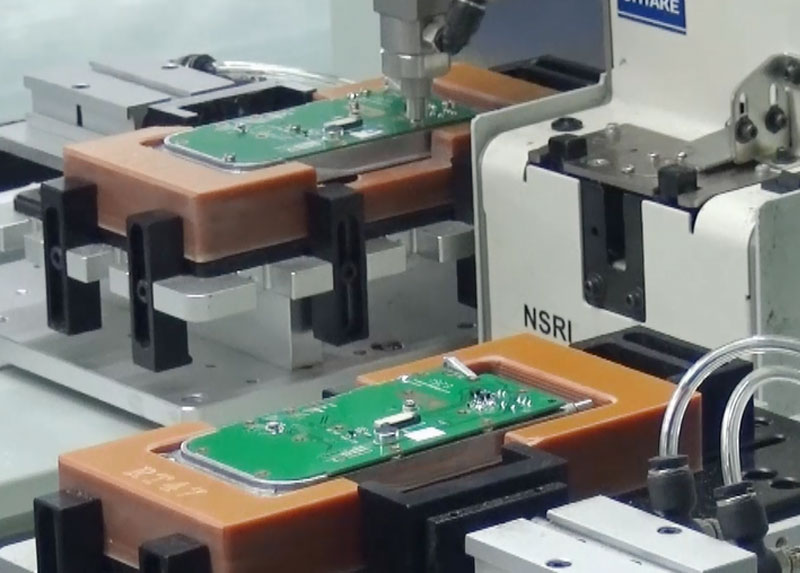

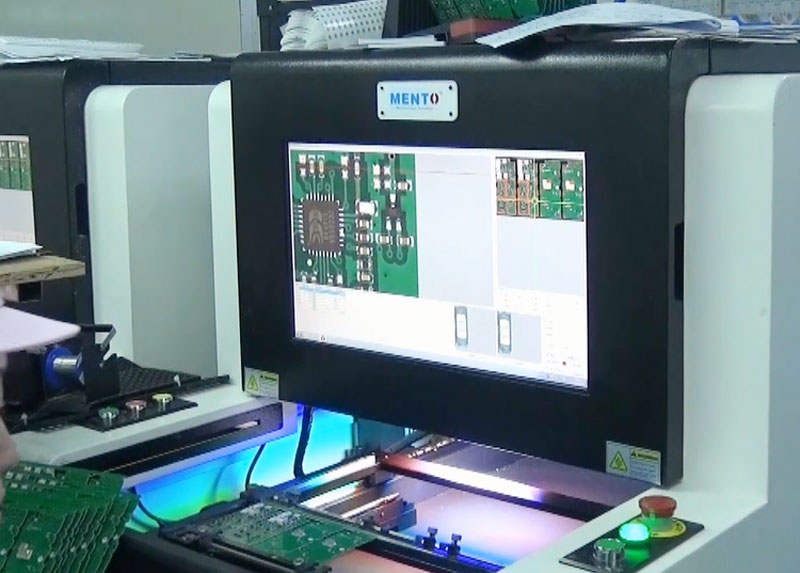

SMT Patching

Patch-Test ailunce.jpg

Patch Test

After the Welding Processing

Some components and parts can't be reflow welded, so we need to hand weld. After every setp, we will do a test to make sure the quality.

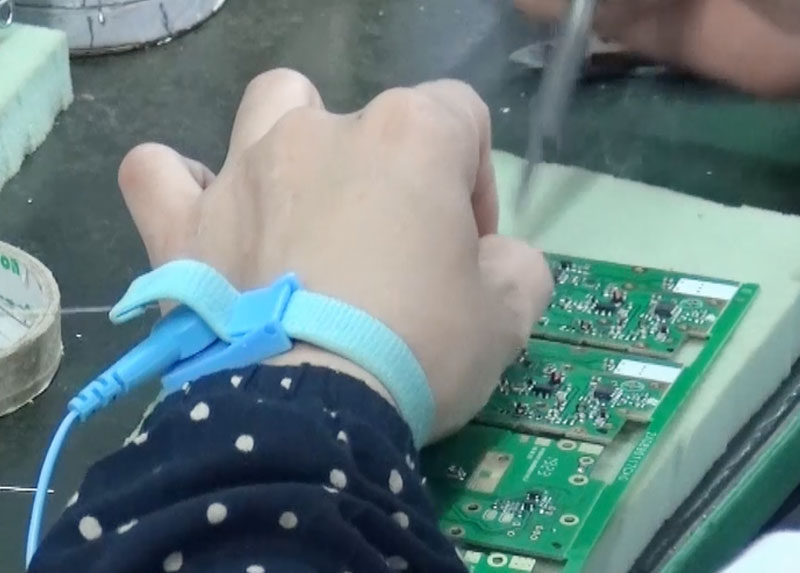

Microphone welding


Prune


Automatic Welding


PCB post soldering test

Assembly Processing

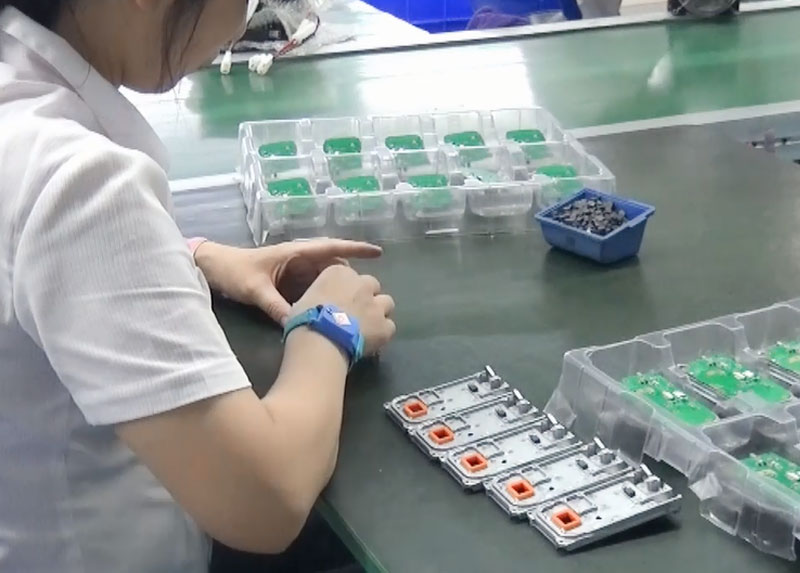

Aluminum plate installation


Screw fixing

antenna-testing ailunce.jpg

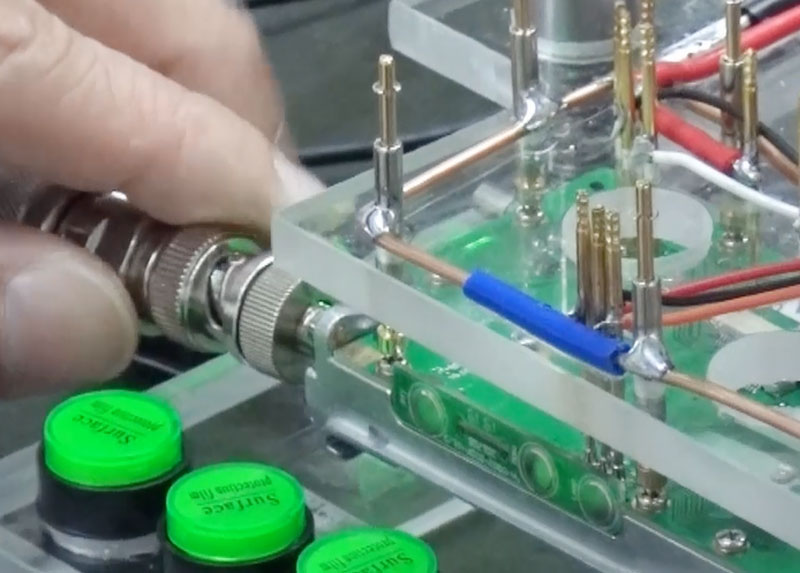

Antenna testing

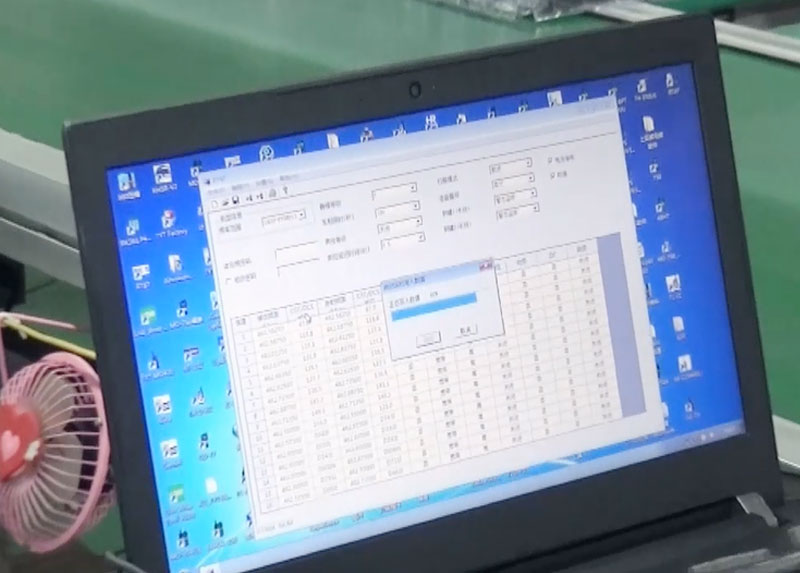

Parameter debugging


Sealing Glue


Mounting Seal


Factory Settings

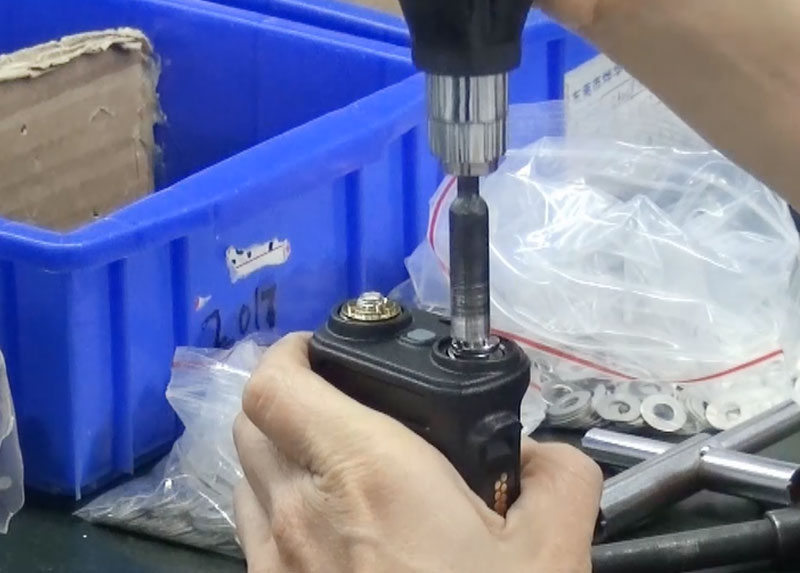

Sealing screw installation

Product Testing

Except for the testing after each step. We will also do a whole test in the end, no matter the functions affection or the performance parameter.

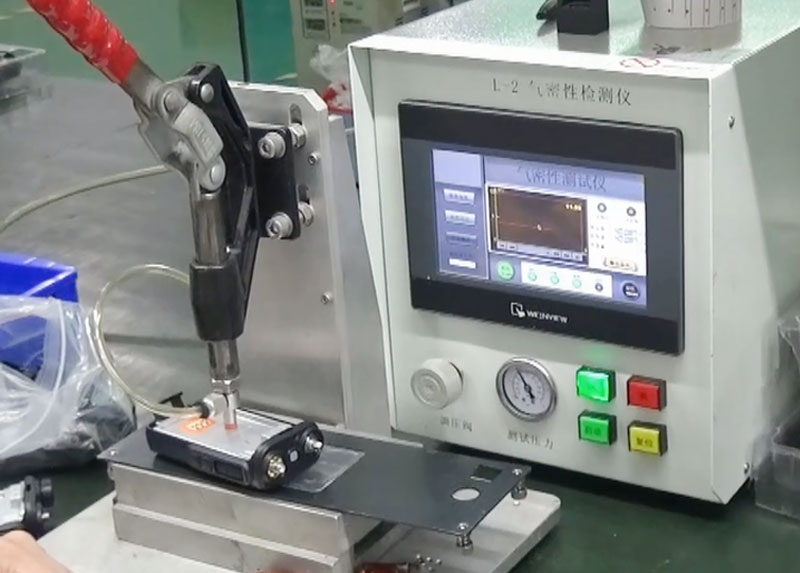

Air Tightness test

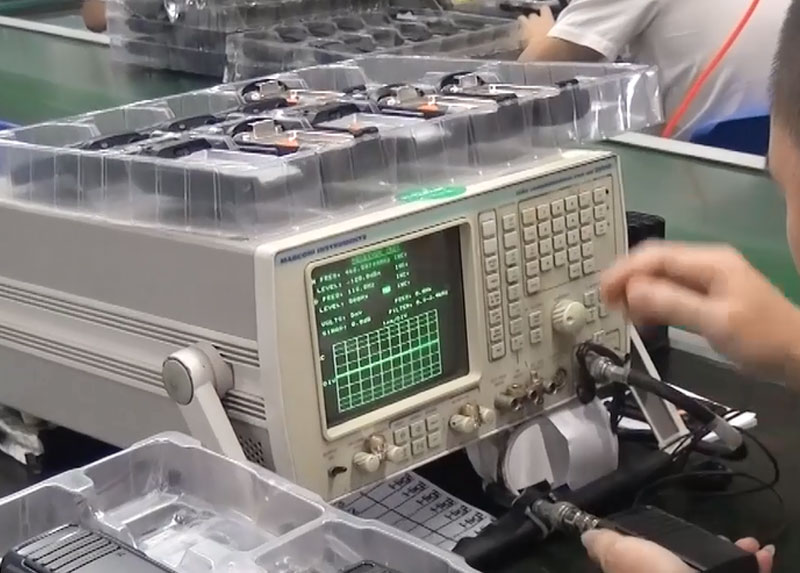

Performance Parameter test

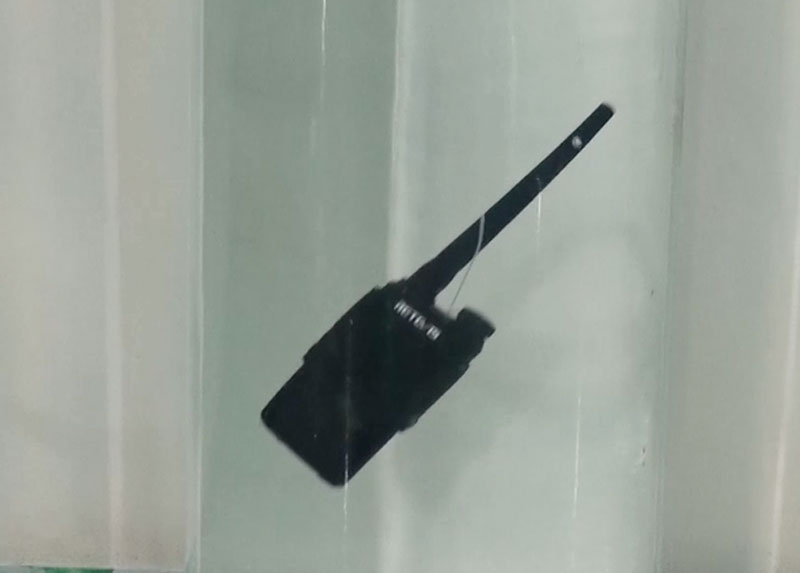

Waterproof test

Product Packaging

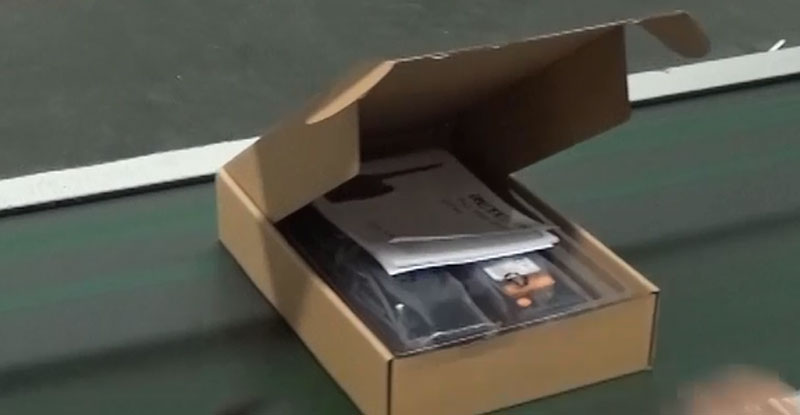

Packaging


Weighing


Packing

Learn more about the two-way radio production process.
