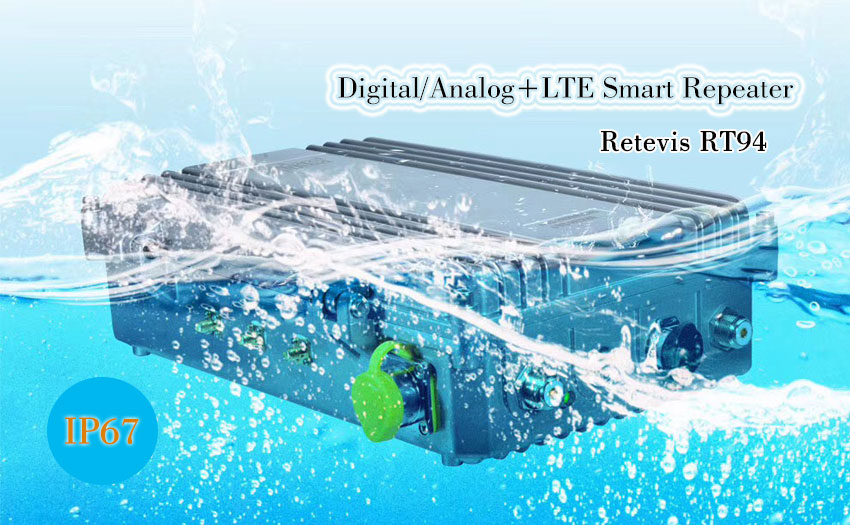

Retevis RT94 Smart Repeater Digital+LTE Converged Communication System

Retevis RT94 Smart Repeater Digital+LTE Converged Communication System

Retevis release a new dmr repeater RT94.

RT94 dmr repeater description:

The Retevis's new generation of wide-narrow converged communication wireless intercom smart system integrates DMR, analog and other narrow-band private network technologies &3G / 4G LTE, WLAN and other wide-band technologies to provide end-to-end voice, data and other full-service convergence solutions. With security, it will provide services for various professional areas of smart cities, such as smart logistics, smart transportation, smart grid, and smart city security; and will also become an important part of the Internet of Things and Internet of Everything.

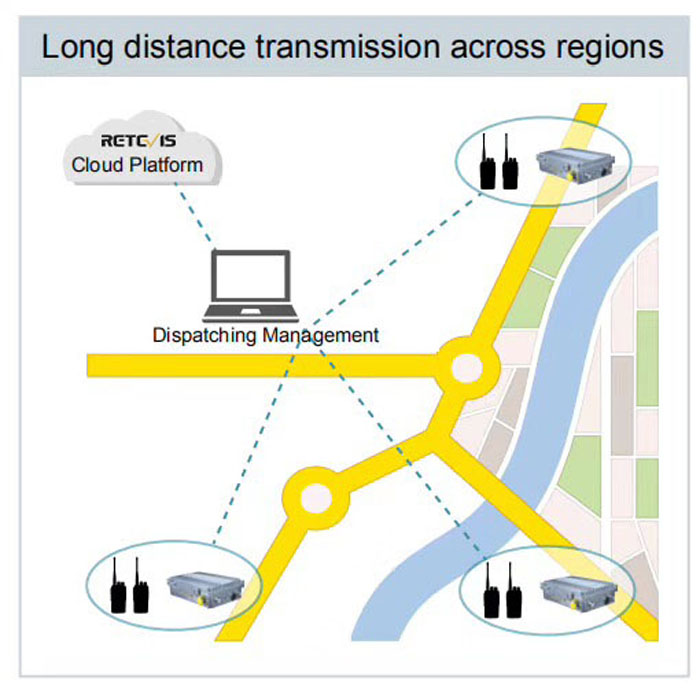

The solution provides voice dispatch command, real-time data interaction, and collaborative operations for industrial customers. It can implement a variety of network collaborative work in a variety of scenarios, and achieve unified management and scheduling. According to the needs of industrial customers, the network can be smoothly transitioned to meet the actual needs of users at all stages of the business.




RT94 dmr repeater main feature:

1. Wide-Narrow Converged

2. Data Transmission

3. Cloud Control

4. GPS

5. Remote Control

6. WiFi

7. Fence Call

8. Central Call

9. Track Playback

10. Private Call / Group Call / All Call

11. Broadcasting

12. IP67 Waterproof Rate

13. Wide Coverage & Strong Penetration

14. Smart interworking between Private Network Digital and PoC terminals


RT94 dmr repeater parameters:

Basic parameters:

Working Current / Voltage:

9A / 13.8V

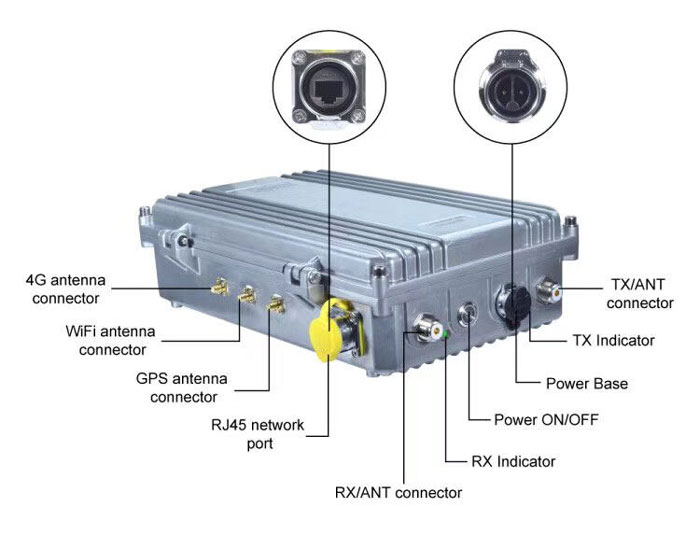

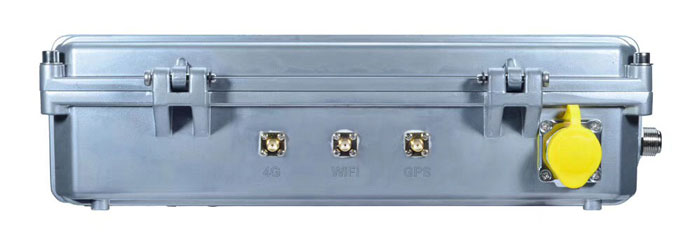

Network interface:

RJ45 network port

Power:

40W

Dimension(LxWxH):

320 x 200 x 92 mm

Environmental Parameters:

Working Temperature:

-20℃ ~ +60℃

Storage Temperature:

-40℃ ~ +85℃

Dustproof & Waterproof Rate:

IP67

Static Protection:

IEC61000-4-2 Level 4

±8kV(Contact)

±15kV(Air)

Wide / Narrow Band Parameters:

Digital Type:

DMR

Frequency Range:

136~174MHz

400~480MHz

Output Power:

5W(L) / 40W(H)

Channel Spacing:

12.5kHz / 25kHz

Digital Vocoder Type:

AMBE 2+

Network Type:

FDD / TDD LTE



Any questions feel free to leave messages to us.


Comments

Comment user

Please contact me WeChat: joacoaranzazu

Comment author

Yolanda Author

I have added you. Our WeChat is AmateurRadio

Comment user

Does it talk BrandMeisterese? How much?

Comment author

Yolanda Author

Around $2000, About if it can talk BrandMeisterese, i will test and reply you. Thanks.

Comment user

Good day Yolanda, I'm very interested in this product and of this compatible is with the Brandmeister Dmr network. I have published on my 4 FB groups and have a lot of reactions and questions so far. Such as expected prices, and release date etc. Kind regards Mark Mannetje (PA0MAG) m.mannetje1@gmail.com
