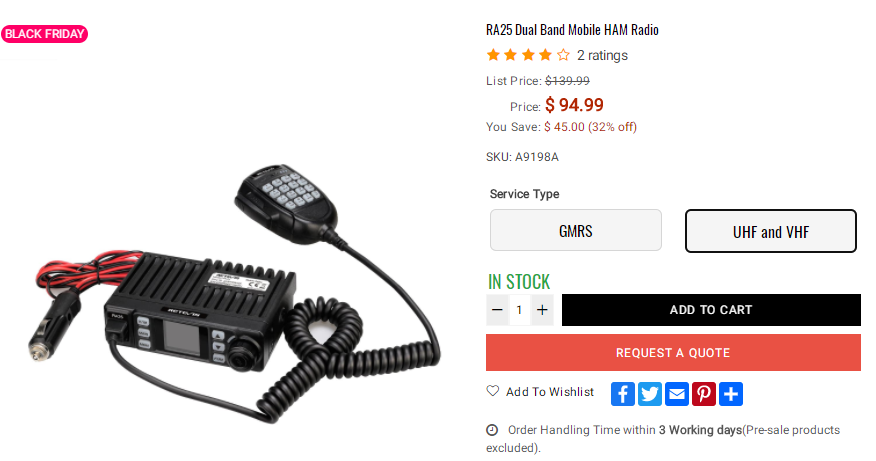

Retevis RA25 20W UV Dual Band Amateur Radio

Retevis RA25 20W UV Dual Band Amateur Radio

Retevis RA25 Mobile Radio has an elegant and sturdy shape. The ergonomic front panel combined with an intuitive menu, ensures easy access and management of the advanced functions available to the user. This amateur mobile transceiver is especially conceived for amateurs who love outdoor activities and it pursues philosophy of innovation and practicality. The “key functions” are:

♦ 500 programmable memory channels

♦ VOX function

♦ Noise Reduction

♦ 1.44 Inch TFT display

♦ Careful selection of higher ranked materials, adoption of the most modern technological solutions, as well as the most efficient cooling cycle that ensures stability and long life of the amplifier architecture;

♦ Amateur mode and professional mode for different operation requirement;

♦ CTCSS, DCS, DTMF, 2Tone, 5Tone setting for each single channel;

♦ 11 groups fixed scrambler code plus self define scrambler code;

♦ LCD brightness control;

♦ Main unit and microphone key lock function;

♦ Compander function;

♦ Tone Pulse frequency;

The UV band is only for EU amateurs, for US amateurs, you can choose GMRS version.

Frequency Range VHF:144-146MHz  UHF:430-440MHz    FM: 86.7-108MHz
Number of Channels 500 channels
Channel Spacing 25K (Wide Band) 12.5K (Narrow band)
Phase-locked Step 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz
Operating Voltage DC 13.8V±15%  (Standard version)DC 12V  (Optional version)
Squelch Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability ±2.5ppm
Operating Temperature -20℃~+60℃
Dimensions(mm) 124x101x36mm
Weight 0.45kg (mian unit)
