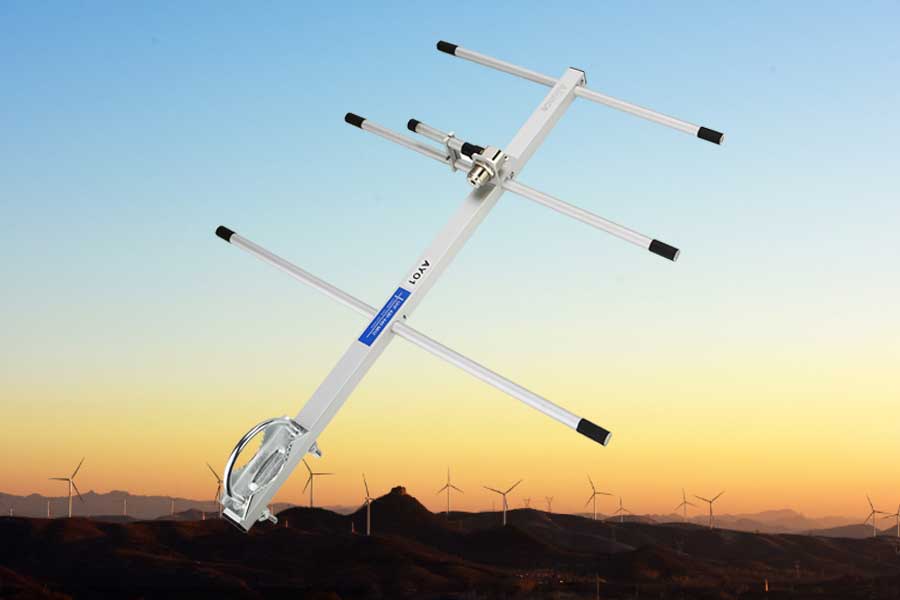

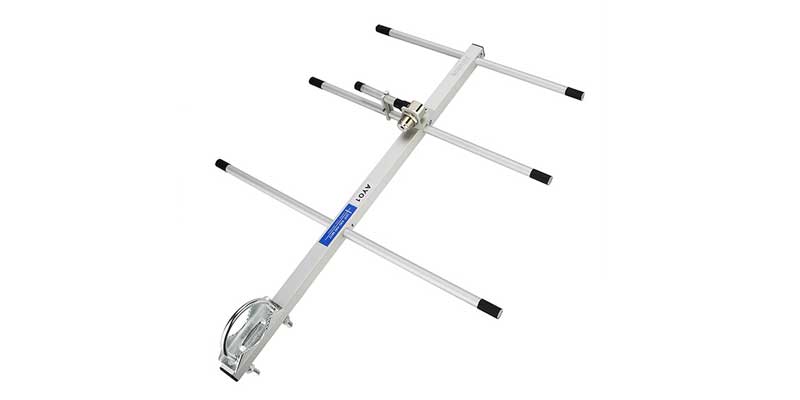

Ailunce AY01 High Gain Aluminum Alloy UHF Yagi Antenna

Ailunce AY01 High Gain Aluminum Alloy UHF Yagi Antenna

The advantage of Yagi antenna.

Ailunce AY01 High Gain Aluminum Alloy UHF Yagi Antenna. It can greatly increase communication distance, improve communication quality. Suitable for radio enthusiasts, people with high requirements for wireless communication quality and distance.

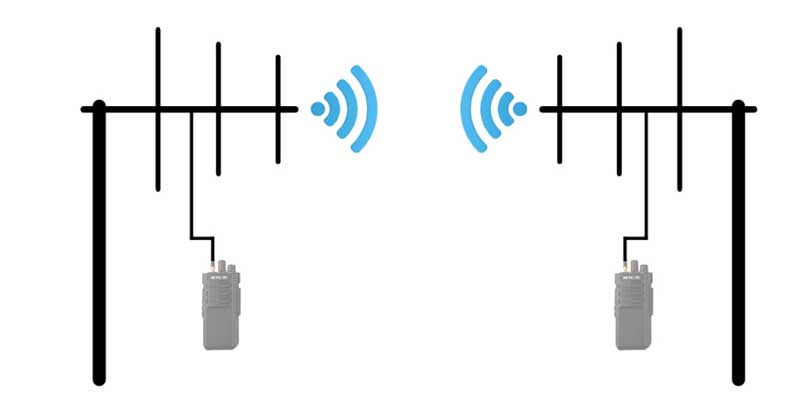

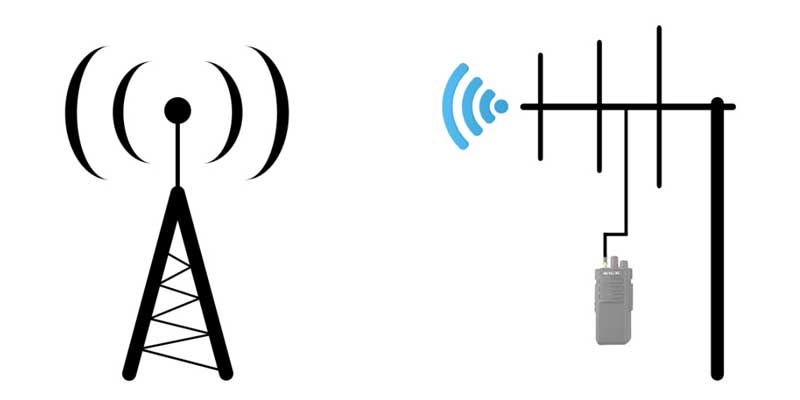

Radio use the antenna to connect the remote repeater. Or we can use the antenna to expand the radio simplex communicate distance.


The AY01 is high gain with strong directionlity and strong anti-jamming. It is more useful to realize long distance communication. It can repeatedly assembly and disassenbly. Very simple.



The AY01 Yagi antenna feature.

1. Ailunce AY01
2. Frequency: UHF
3. Gain: 7 dBi
4. Max power: 50W
5. V.S.W.R: Less 1.2
6. Impedance: 50Ω
7. Connector: UHF Female
8. Length: 46cm

Best communication in the 430-440MHz band.

If you need any further assistance, please do not hesitate to leave messages.


Comments

Comment user

Do you have more complete design specifications? Front-to-back ratio? Beam width at 3dB points?
