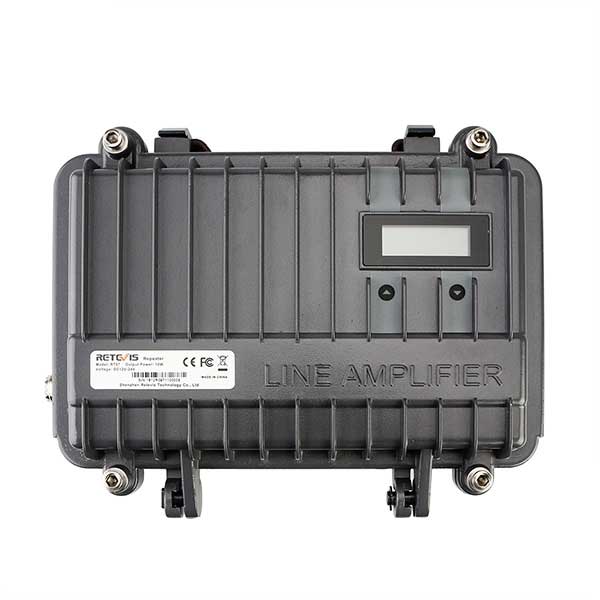

Retevis RT97 Portable Analog 10W Repeater


Retevis has a new portable repeater RT97, Small and compact. It is mainly for expanding the communication distance on some occasions. Such as little big office, shopping mall, physical activities, outdoor activities, or we can take it anywhere we want on the car, it is easy to carry. If you know other usage scenarios. Welcome to talk about with us.

Retevis RT97 repeater feature:

  • Small and compact, solid and dust-proof.

  • Simple and convenient installation, flexible operation, can be operated as fixed or mobile.

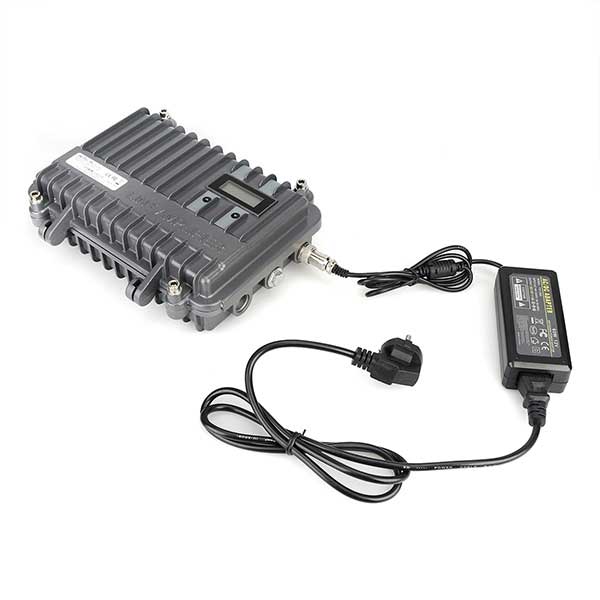

  • Multi working power selection, working with the matching power adapter and also can work under  DC12V~24V power or car power.

  • The use of an antenna can be selected according to actual demand.


Technical parameters:

The frequency can be can be customized. The default transmit frequency is 465MHz, the receive frequency is 455MHz.

Specifications:

Frequency Range400-470MHz
Channel Capacity16CH
Channel Spacing
±12.5KHz Narrow/±25kHz Wide
Operating VoltageDC12V ~24V
Operating Temperature-30°C~ +60°C
Frequency Stability

±2.5ppm

Antenna Impedance50Ω
Dimension260*210*70mm
Weight1.66kg

Transmitter:

Intermediate Frequency
465MHz
Power Output10W
ModulationF3E
Spurious Emission-60dB or less
Maximum Frequency DeviationWide: ±5kHz Narrow: ±2.5kHz
Audio Distortion5% or less
FM Noise

Wide:≤45dB Narrow :≤40dB

Receiver:

Intermediate Frequency455MHz
Sensitivity(12dB SINAD)

0.2μV (Wide) 0.25μV (Narrow)

Squelch Sensitivity0.15μV (Wide) 0.2μV (Narrow)
Adjacent Channel Selectivity

≥ 70dB (Wide) / ≥65dB (Narrow)

Intermodulation≥ 55dB
Spurious Rejection≥ 55dB
Image Rejection≥ 55dB
FM Ham and Noise≤-45dB(Wide) / ≤ -40dB(Narrow)
Modulation TypeF3E
Operating Bandwidth≤±7KHz / ≤±5KHz
Audio Distortion≤ 5%


If you want to learn more and buy it, please click the follow photo.


If you need any further assistance, please do not hesitate to leave messages.
