Retevis MA02 FRP Antenna for Radio Repeater

Retevis MA02 FRP Antenna for Radio Repeater

Retevis release a new FRP antenna MA02

The antenna is Omni directional base station antenna, support UHF and VHF bands,  with high gain, wide bandwidth, low standing wave ratio, waterproof, anti-corrosion with high strength and high quality glass steel package, strong wind resistance characteristics, is a kind of ideal communication antenna, antenna design style, easy disassembly and assembly and convenient use.



Frequency

144/430MHz

VSWR

<1.5

Impedance

50Ω

Gain

4.5/7.2Bi

Polarization

Vertical

Maximum power input

200W

Horizontal beam    width

360°

Vertical beam width

30°/ 19°

Connector

SL16-K

Radome material

fiberglass

Material of    hardware-supplied

aluminum alloy

Hold pole diameter

Φ30-Φ62 mm

Suitable for models

Retevis RT97/RT9550/RT92

Weight

1150g


C9082A- (14).jpg

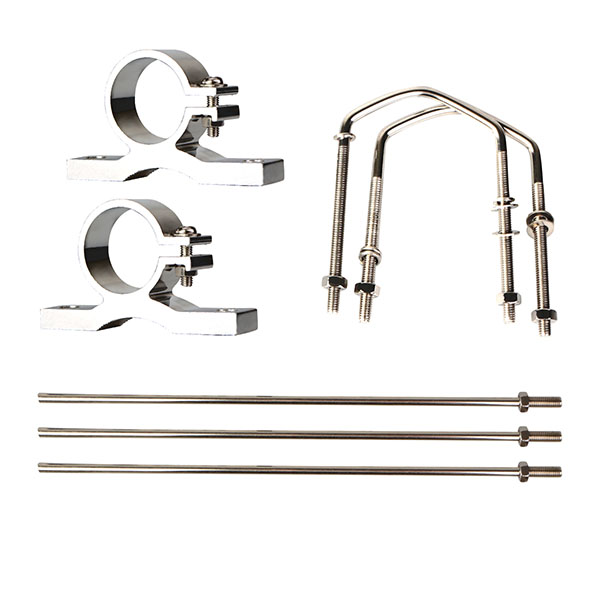

Package Includes:
