Something about Busy Channel Lock-out Function

Something about Busy Channel Lock-out Function

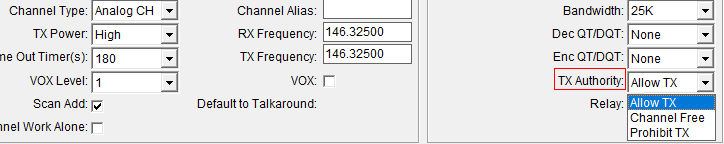

Busy Channel Lock-out feature often abbreviated to BCL on two way radios. But it depends on the different radios, on some radio it says BCL, this is also commonly referred to as TX Inhibit on some other radios. For example, on Retevis RB17P, it says "Busy Lock". but on Ailunce HD1 it says" TX Authority".

Normally, you'd be able to hear the other side which is transmitting using your receiver, and avoid transmitting until the channel is free.
However, with more complex squelch systems, such as CTCSS and DCS, becoming more common, it can happen that your receiver is receiving another signal, but is muted due to squelch settings.

Additionally, depending on the implementation, the busy channel lockout feature might also work even if the CTCSS or DCS are not in use. It might prevent radio from transmitting as long as there's some signal on the frequency. This can cause issues which prevent the radio from transmitting in case where the radio is picking up interference which is not related to communication.

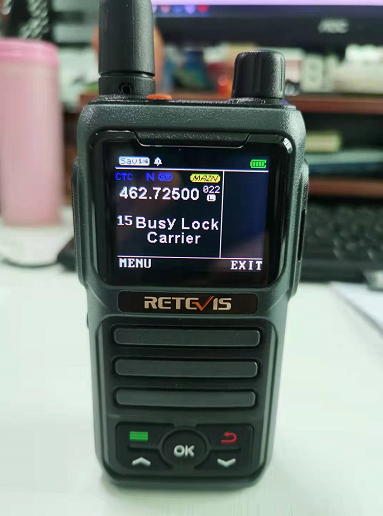

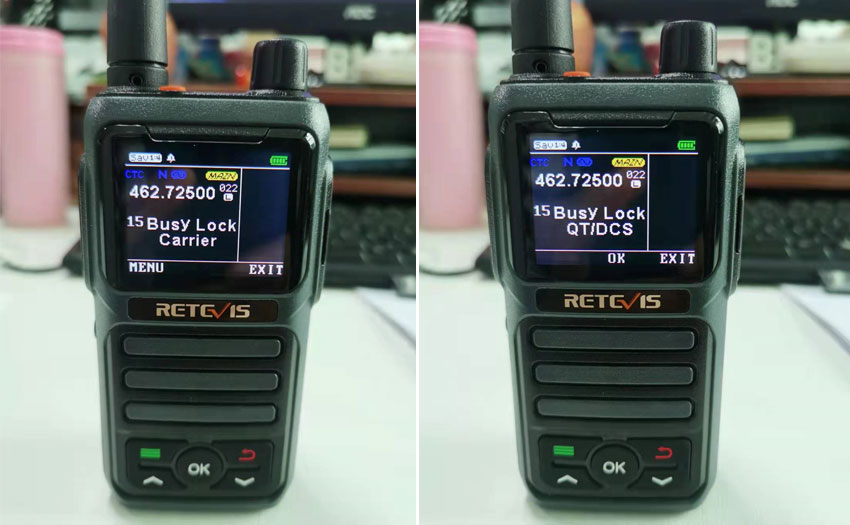

On Retevis RB17P When the transmitter turns on the channel busy lock and selected the carrier, it means that other walkie-talkies except the transmitter will receive a busy tone when using the same frequency as the transmitter.

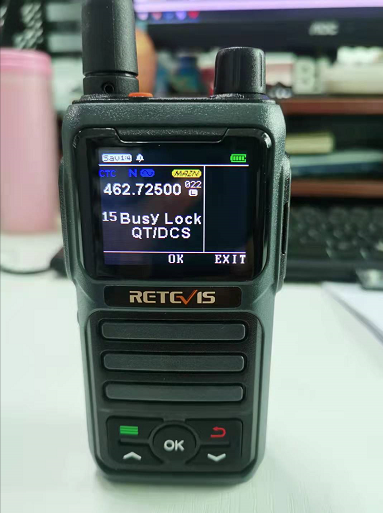

In the same way, if the channel is busy and locked and the sub-audio is selected, it means that in addition to the same frequency and the same CTCSS/DCS, the walkie-talkie other than the transmitter will also receive a busy tone when transmitting.
