MiNi 1300 Touch Screen Antenna Analyter

MiNi 1300 Touch Screen Antenna Analyter

Mini 1300 4.3’ TFT LCD touch screen antenna analyzer is an upgrade of Mini 600 antenna analyzer.

The frequency range can continuous coverage 0.1-1300 MHz HFVHF/UHF(Including FM broadcast frequency).

The Measurement Parameters including: SWR,R,+Jx,-Jx,IZI,Return loss

And its Measurement Mode:Single point measurement,Scanning(Frequency Sweep),and TDR Mode

Come with 3 display modes: Numerical display,curve display,Smith chart

The Connector Type is UHF N-type.

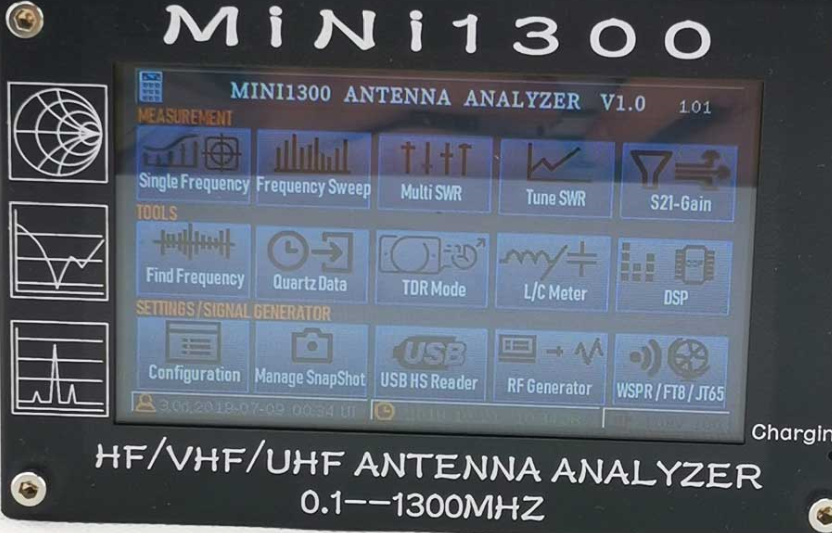

MainMenu


1. Single Frequency

2. Frequency sweep

3. Multi SWR

4. Tune SWR

5. S21 gain

6. Find Frequency

7. Quartz Data

8. TDR mode

9. L/C meter

10. DSP

11. Configuration

12. Manage snapshot

13. USB HS Reader

14. RF generator

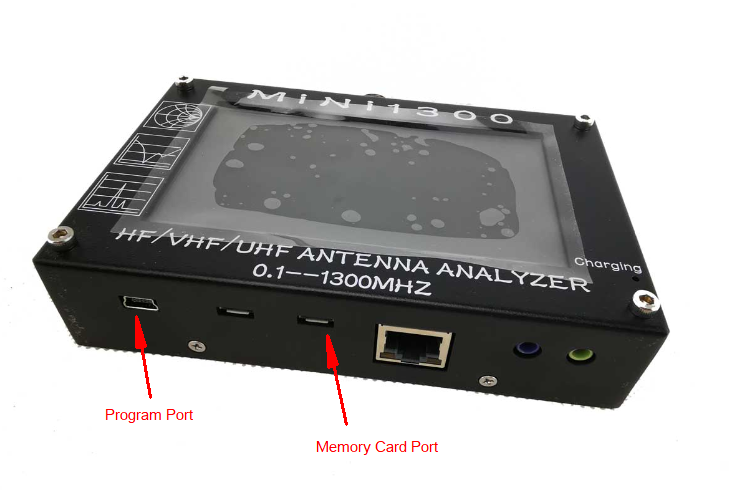

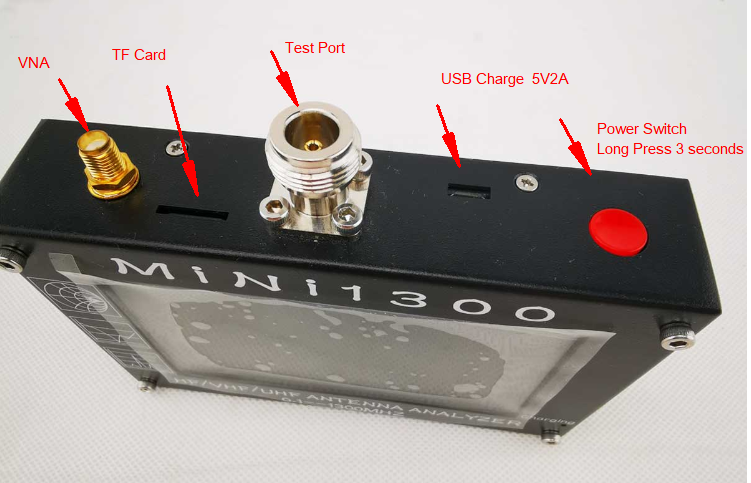

Port specification



Single Frequency

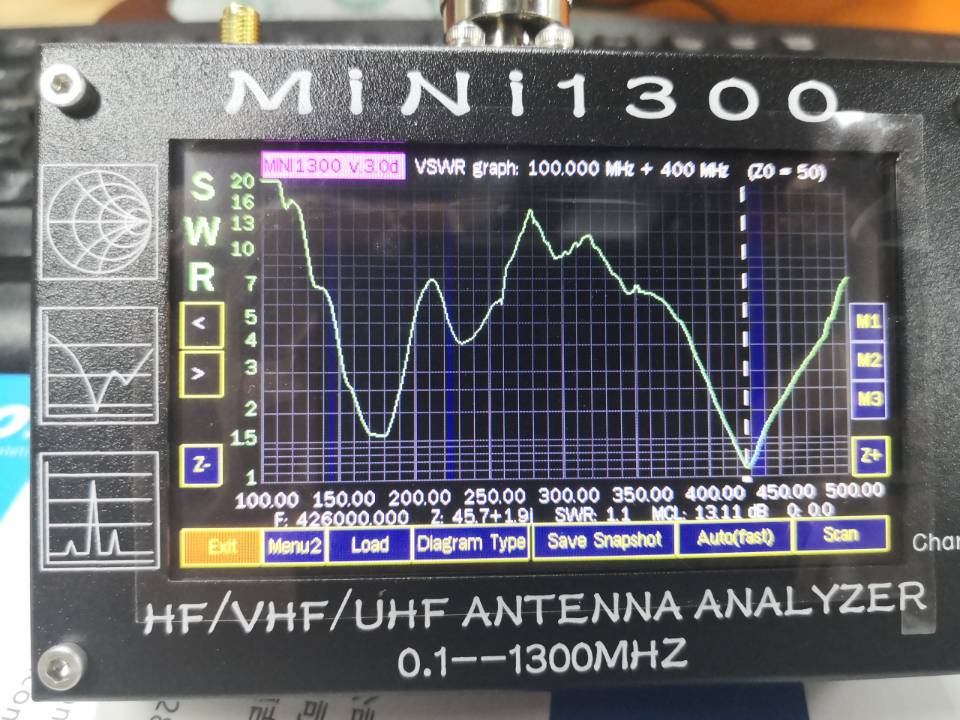

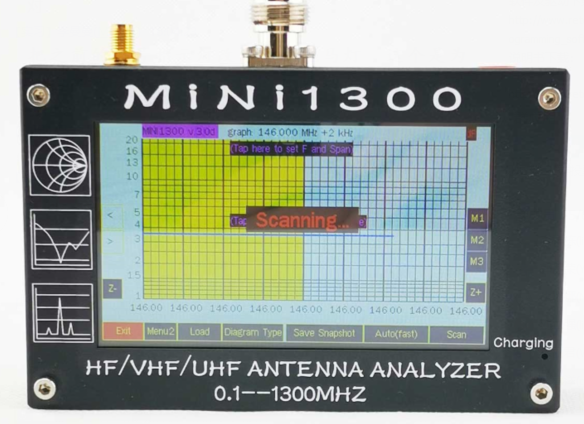

Frequency scan


Configuration Menu


Multi SWR

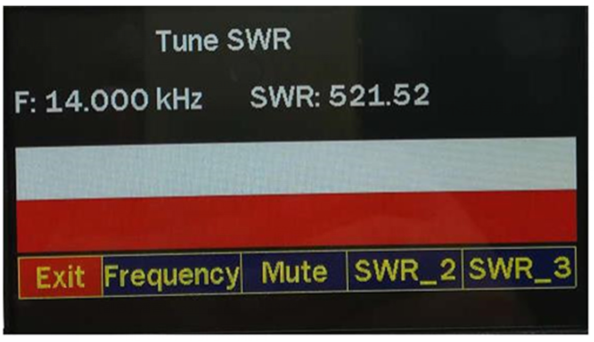

Tune SWR


Main functions :
Panoramic scan
Generator
Time Domain
Multi SWR
Setup
Find Frequency
Tune SWR/Sound
View Pictures
USB HS cardrdr
SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Display Modes: Numerical display, curve display, simith chart
Connector Type: UHF N-type connector
SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480x272 4.3 TFT LCD display
Contact Screen Type: Capacitive
All capacitive touchscreen on the display - no buttons are needed
Power Source: USB or Internal Li-ion
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A
External Storage Method: TF card
Weight: 550g
Warning: if the product has parameter changes, the actual test will prevail.

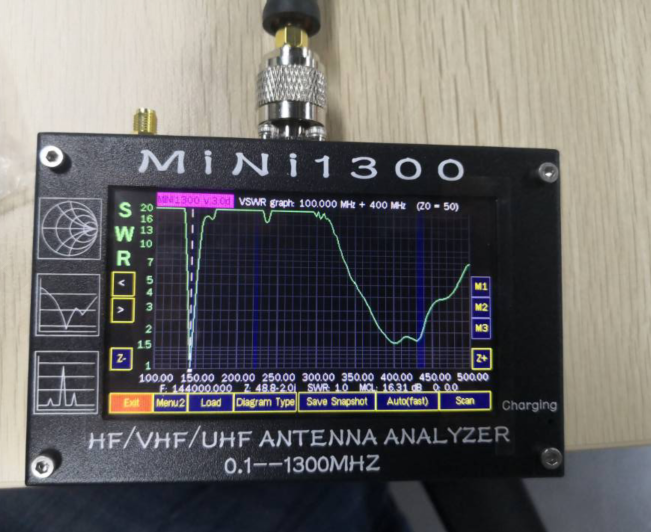

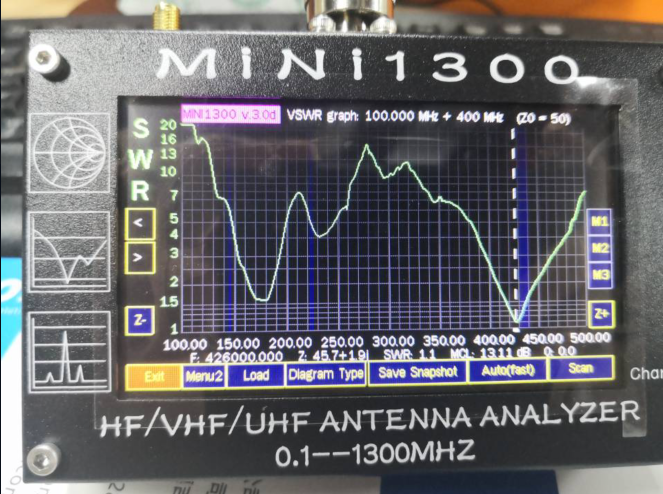

Ailunce HD1 original antenna test:
