Ailunce HD1 Cross Band Transmit and Receive

Ailunce HD1 Cross Band Transmit and Receive

About cross-band transmits and receives.

Some people say HD1 as a dual-band radio, does it support cross-band transmits and receives. Yes, it supports, but I need to say that it only supports cross-band transmits and receives, not supports cross-band repeater function.

Ailunce HD1 is a dual-band DMR radio. It supports cross-band transmits and receives. Transmit in VHF and receive in UHF or transmit in UHF and receive in VHF. You can set it via the HD1 software, don't support set the cross-band transmit and receives on the radio keypad.

How to set the HD1 cross-band function?

Here I will make an example.

E.g. RX 145.2375MHz, TX 436.2375MHz,offset: 291MHz

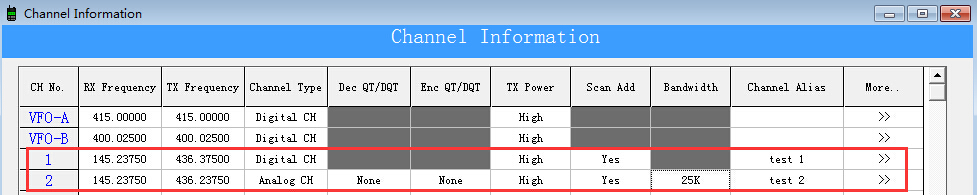

Radio 1: channel one: RX 145.2375MHz, TX 436.2375MHz, mode: digital mode, Name: test 1

channel two: RX 145.2375MHz, TX 436.2375MHz, mode: analog mode, Name: test 2

HD1 radio

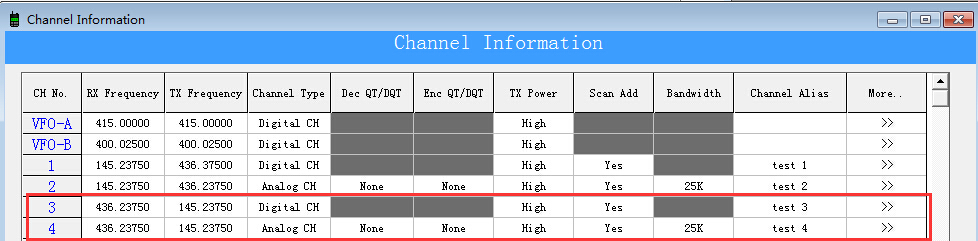

Radio 2: channel  three: RX 436.2375MHz, TX 145.2375MHz, mode: digital mode, Name: test 3

channel  four: RX 436.2375MHz, TX 145.2375MHz, mode: analog mode, Name: test 4

Retevis HD1

After done, you can try to talk between test 1 and test 3, test 2 and test 4 by radio.

You also can watch the vido to learn more.

If you have any problems, feel free to leave messages to us.
