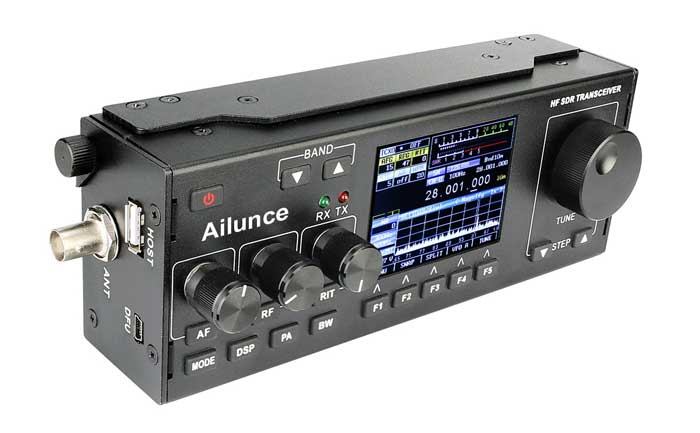

Ailunce HS1 SSB HF SDR Amateur Transceiver


Ailunce HS1 is an HF transceiver for hams. It covers the basic functions of a short-wave radio station.


Ailunce HS1 Feature:

  • Spectrum Dynamic Waterfall Display

  • Multiple Working Modes:Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode

  • DSP Digital Signal Processing Noise Reduction

  • Automatic Notch Filter

  • Humanized Interface Color Display

  • Receive Fine Tuning Function, Changeable MIC Gain Value

  • VCC Power Supply Voltage Indication Table

  • Transmit Signal Strength Display Table

  • Multifunctional Instrument:SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter


Ailunce HS1 Specification:

  • Frequency Range:0.5MHz-30MHz

  • Operating Mode:SSB(J3E), CW, AM, FM, FREE-DV

  • TX Power:Maximum 15W

  • Receiving Sensitivity:0.11~0.89µV (RFC 50-20)

  • Minimum Frequency Step:1Hz

  • Operating Voltage:9-15V DC

  • Antenna Impedance:50Ω

  • Frequency Stability:±1.5PPM @ Power on 5 Minutes(Standard); ±0.5PPM if Optional TCXO Used

  • Package Size:240mm*120mm*80.mm

  • Package Weight:977g



Ailunce Technical Parameters:

Frequency Range

RX:0.5MHz-30MHz

TX:0.5MHz-30MHz

Output Power

Maximum 15W

Receiving Sensitivity

Better than -115dBm

Operating Mode

Full Modes

Dimensions

190mm*69mm*45mm

Operating Voltage Range

DC 9-15V

Maximum Current

3.5A

Transceiver comes with automatic key generator circuit, Can be connected to the use of automatic keys.



Standard Accessories:

1 x HS1 HF SDR Transceiver

1 x Hand Microphone

1 x Mounting Bracket

1 x DC Power Cable ( without power plug)

2 x Wrench

1 x Antenna Converter

1 x User Manual
