Connector SMA-F; Dual frequency144/430MHz (136-174+400-470)MHz
-
Connector SMA-F; Length 8.46 inches(21.5cm); Dual frequency144/430MHz (136-174+400-470)MHz.
-
This antenna features a 2.15dBi signal with up to 20W of power can boost the signal of your radio significantly.
-
The excellent ABS Heat shrinkable sleeve material not only protect your radio but also for a long time use.
-
Small body but big performance can extend the range of your radio communication and easy to pack up.
Description:

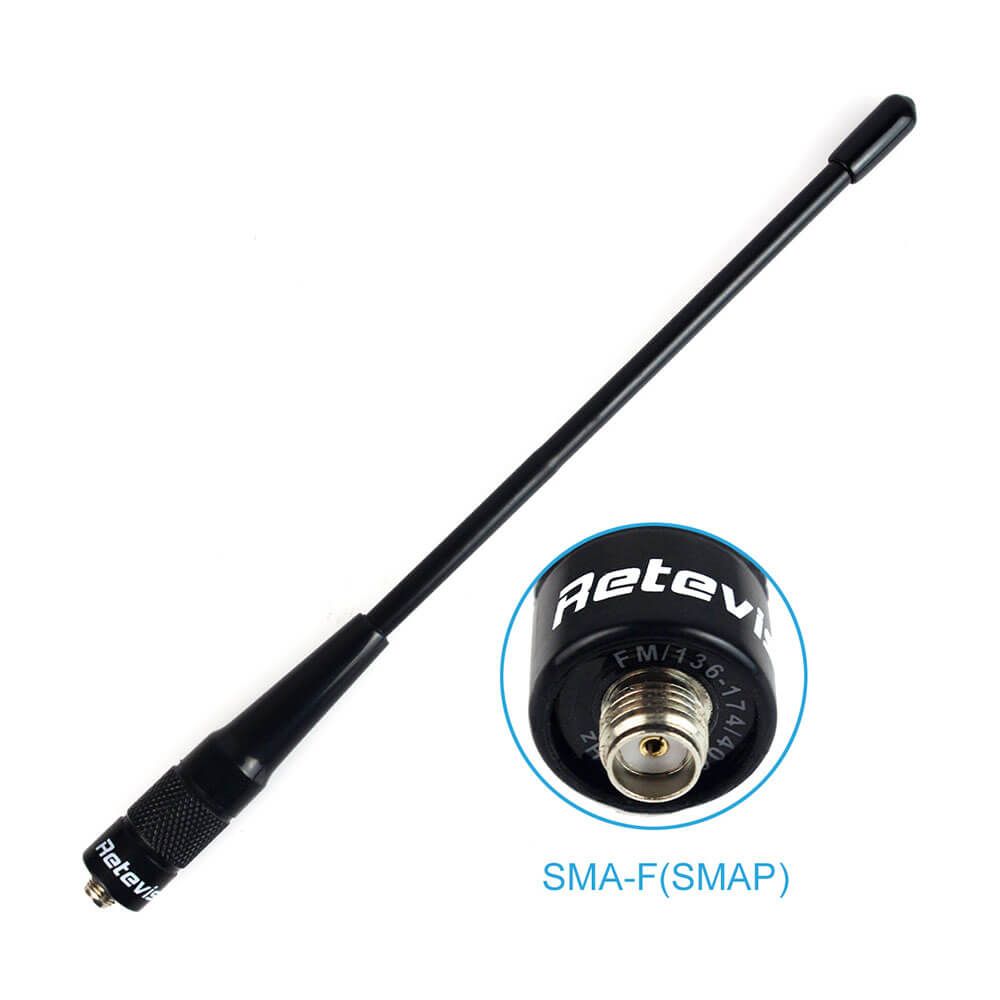

The Original Retevis RHD-701 SMA-F high gain Antenna will allow you to get longer range on your handheld radio, like Retevis RT-5R,H-777,RT5,6s,BaoFeng 888s,UV-5R radio. This antenna features a 2dBi with up to 20 Watts of power. It is 8.46in(21.5cm) in length and weighs 1.05oz(30g)
Specification
100% brand new and high quality |
|
|
Model |
RHD-701 |
|
Band |
Dual band VHF/UHF |
|
Antenna type |
SMA-F Soft Antenna |
|
Frequency |
144/430Mhz(136-174+400-470)MHz |
|
Gain |
2dBi |
|
Max power |
20 Watts |
|
VSWR |
Less than 1.5 Downwards |
|
Impedance |
50ohm |
|
Connector Type |
SMA-F(Female) |
|
Omni Polarization |
Vertical |
|
Radiation |
Omni |
|
Material |
ABS and Heat shrinkable sleeve |
|
Length |
20cm/7.87in |
|
Weight |
34g/1.05oz |
|
Color |
Black |
|
Widely used on handheld Radios with SMA female interface |
|
