Retevis RT95 Mobile Radio Front and Rear Panels Introduction
We know that the RT95 is a dual band analog mobile radio. It is an amateur mobile radio. Today let learn something about its front and rear pannel design.

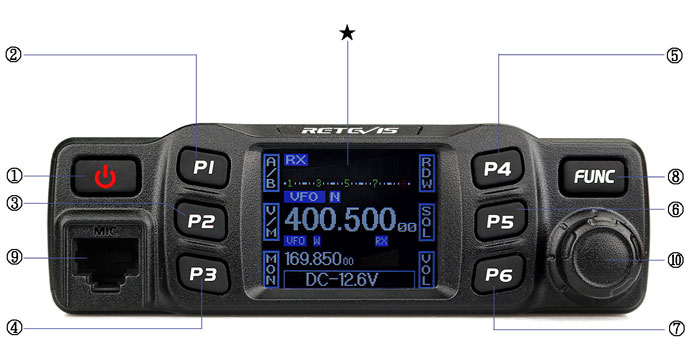

RT95 front panel.
1. ① Power ON/Off/Mute
2. ② ③ ④ ⑤ ⑥ ⑦ Self Define Key
3. ⑧ Function Key / Function Group Key
4. ⑨ Microphone Jack
5. ⑩ Channel Switch / Push Button / Key Lock
6. ★ Display Channel / Frequency / Function Setting

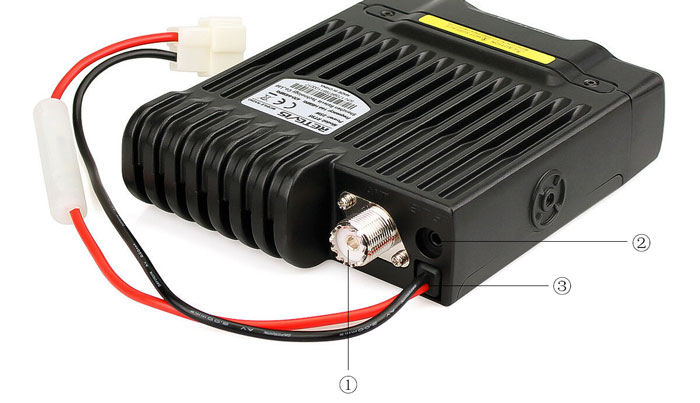

RT95 rear panel.
① Antenna connector: Connect a 50 ohm antenna
② Ex-Speaker: Jack Connect external speaker
③ Power cable: Connect a standard DC power cable

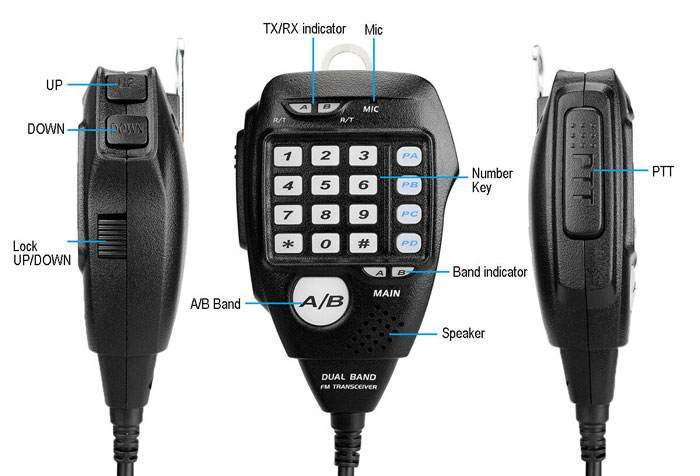

RT95 Speaker Mic
| Key | Function |
| Up | Increase frequency, channel number or setting value |
| Down | Decrease frequency, channel number or setting value |
| PTT | Press the PTT (Push-TO-Talk) key to transmit |
| Number Key | Input VFO frequency or DTMF dial out etc. |
| A/B Band | Choose left band or right band as Main band |
| Band Indicator | The indicator light on for Main band |
| TX/RX Indicator | Light green while receiving, Light red while transmitting |
| Mic | Speak here during transmission |
| Speaker | When shut the speaker in the base, you can hear the calling by this speaker |
| Lock Up / Down | When this key is in up position, It is unlock UP/DOWN key, when this key is in down poisition, UP/DOWN key will be locked |
