Retevis RT95 Mobile Radio Display Icon

Retevis RT95 Mobile Radio Display Icon

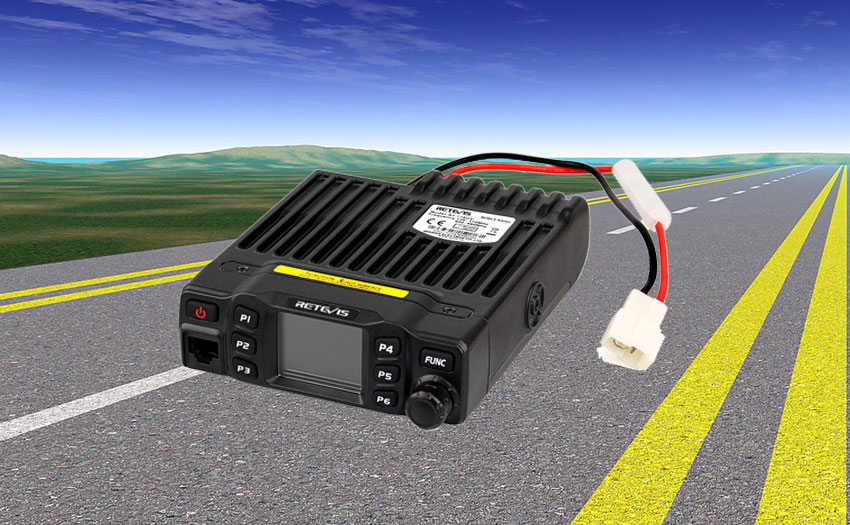

RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality.

Most of radio's display is LCD. RT95 use TFT display. The technology is more complicated than LCD. It is also a special point of RT95.

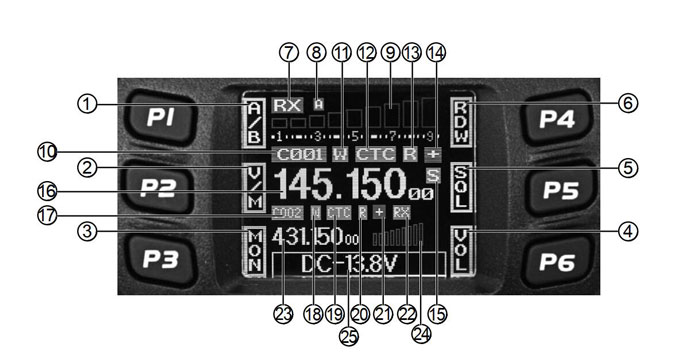

Today let learn what's the meaning of the display icon.


NO. Functions
1 Displays the self define function when press P1
2 Displays the self define function when press P2
3 Displays the self define function when press P3
4 Displays the self define function when press P4
5 Displays the self define function when press P5
6 Displays the self define function when press P6
7 Displays the main channel TX or RX status
8 Displays when Automatic power off function is on
9 Displays the main channel field strength
10 Displays main channel number in channel mode
11 Displays when set band width for main channel
12 Displays when main channel set CTCSS/DCS
13 Displays when main channel reverse function is on
14 Displays when main channel offset function is on
15 Displays when main channel is in scan list
16 Displays main channel frequency or name
17 Displays sub channel number in channel mode
18 Displays when setting band width for sub channel
19 Displays when current sub channel set CTCSS/DCS
20 Displays when sub channel reverse function is ON
21 Displays when sub channel offset function is ON
22 Displays when sub channel receive a signal
23 Display sub channel frequency or name
24 Displays signal strength of sub channel
25 Display voltage and menu setting

If you have any questions, feel free to leave messages to us.
