Retevis RT23 Analog Cross-Band Repeater Radio

Retevis RT23 Analog Cross-Band Repeater Radio

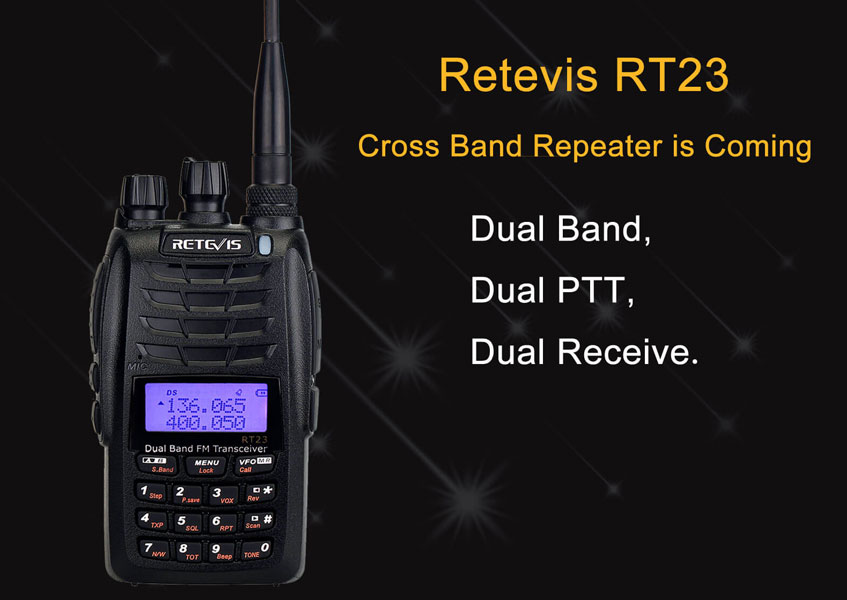

Retevis RT23 Cross-Band Repeater,Dual PTT, Dual Receiving simultaneously Walkie Talkie.

What make RT23 unique? Many friends say it is a good radio. Today i will take you to learn more about it. there are many other features make you like it.

1.Cross-Band Repeater Function.

Turn on the cross-band repeater function(menu 6). You can choose one-way or two way repeater(menu 34). One way(single) means the repeater’s receive and transmit frequencies are specific. The radio will show 162R2375,426T2375. It indicates the repeater only can receive 162.2375,transmit 426.2375. Two way(double) means the repeater’s receive and transmit frequencies are random. The radio will show 162*2375,426*2375. It indicates the repeater not only can receive 162.2375,transmit 426.2375, but also can receive 426.2375,transmit 162.2375.
Cross-Band Repeater function also can increase the distance of communication. If you choose two way repeater, it can make the UHF radio communicate with VHF radio. When you turn on the repeater function, you also can set if the radio PTT Transmitting(menu 33) and Speaker(menu 32) is available.

For example:
(1)RT23 radio A: RX 426.2375MHz, Offset: – 264.000MHz
RT23 radio B: RX 426.2375MHz, Offset: – 264.000MHz
RT23 radio C: Repeater RX 162.2375MHz, Offset: + 264.000MHz
Radio A could communicate with Radio B,It also can increase the distance of communication.
(2)RT23 radio A: RX&TX 162.2375MHz
RT23 radio B: RX&TX 426.2375MHz,
RT23 radio C: Two-way Repeater 162.2375MHz, Offset: + 264.000MHz
Radio A could communicate with Radio B

2.Dual Receive

RT23 is not same with other radios. Other radios can “watch” two channels. Mointor two different frequencies(even on different bands (VHF/UHF)) and the radio will monitor both frequencies giving priority to the first station to receive an incoming call.RT23 not only can “watch” both frequencies, but also can receive two incoming calls at the same time. What is more,you can set the volume mode by the menu 35. MAIN indicates the main frequency sound is louder when receiving, SUB is indicates the sub frequency sound is lounder when receiving. OFF indicates both main and sub frequency have same sound.

For example:
RT23 radio A: TX/RX 162.2375MHz,
RT23 radio B: TX/RX 426.2375MHz,
RT23 radio C: Dual Standby 426.2375MHz, 162.2375MHz,
Radio C can receive voice of Radio A&B at the same time.

3.Dual PTT

You can set a Sub-PTT by side key. If so you need not to choose the transmit channel. Push PTT transmit themain-channel, push another side key will transmit the sub-channel. Very convenient.

3. DW (Receive signal when using FM radio function)

There are a lof of radios in the market have FM function. When we are free and there is no calling, we may open FM to listen. In case we miss any calling, most of the radios' default settings is Automatic receiving the calling from other radios when we listen FM radio. Some people think it is very good, we will don't miss any calling. Some other people think it is a little better. Because during this time i don't want to be disturb. Retevis RT23 will give you more choices. Wether the calling form other radios was received when you listen FM, It's up to you.More FM radio setting start from Retevis RT23.

Turn on the DW function, Receive two way radio Signal when listening FM radio, Never miss the important infomation. Turn off it, enjoy your time without any disturb.




Main Features:

  1. Dual Band Dual Display Dual Standby Handheld Radio

  2. 128 Memory Channel

  3. 360 Degree Channel Knob

  4. Cross-Band Repeater Function(VHF to UHF or UHF to VHF)

  5. Frequency offset and direction programmable in repeater mode

  6. Dual PTT(Side key can setup Sub-Ch transmit)

  7. Dual Receiving(RX on the same/different bands of A&B areas simultaneously)

  8. VFO/MR/CH Mode

  9. 1600mAh

  10. Battery Save

  11. Strong and Stable Output Power (High:5W/4W,Low:1W)

  12. CTCSS/DCS

  13. Scan(3 kinds of scan:Time,Carrier,Search)

  14. VOX

  15. TOT

  16. SQL

  17. PTT ID

  18. FM

  19. Multi Definition for Sidekeys

  20. DTMF Encoding&Decoding

  21. All/Group/Slective Calls

  22. Reverse Frequency

  23. Remote Alarm

  24. Remote Stun/Kill/Active

  25. Wide/Narrow Bandwidth Slection(25KHz/12.5KHz)

  26. Voice Guide:Chinese/English

  27. Chinese/English Screen Display

  28. Single-Tone Pulse Frequency:2100Hz/1750Hz/1450Hz/1000Hz(Signalling for activating repeater)

General Specifications

Frequency rangeVHF:136-174Mhz
UHF:400-480Mhz
Frequency Sensitivity+-2.5ppm
Rated Voltage7.4V DC +-20%
Memory Channel128 Channels
Antenna AllocationPupinization Antenna
Antenna Impedance50
Dimension100*60*36mm / 3.94*2.36*1.42in(Excluding the antenna)
Frequency Step2.50K/5.00K/6.25K/10.00K/12.50K/20.00K/25.00K/50.00K

Transmitter

Modulation Mode16K0F3E/11K0F3E
Maximum Frequency Deviation<=5kHz / <=2.5kHz
Spurious Power<=7.5uW
Preemphasis Character6dB/Every times the frequency will increase
Current<=1.6A
Wide/Narrow0.75kHz +- 0.1kHz, 0.4kHz +- 0.1kHz
Modulation Sensitivity8-12mV
Audio Distortion<=5%

Receiver

Sensitivity<=-0.2uV <=-0.25uV
Audio Output Power>=500mW/10%
Audio Distortion<=5%
Obstruct>=85dB
Intermodulation>=65dB >=60dB
Adjacent Channel Selection>=70dB >=60dB
Spurious Rejection>=65dB



RT23 is a good radio. You deserve it. It will give you a special experience. If you want one, Buy it from Retevis website:  https://www.retevis.com/rt23-cross-band-repeater-dual-ptt-walkie-talkie

If you need any further assistance, please do not hesitate to leave messages to us.
