The Perfect Combination of Handheld Repeater RT97 and Motorcycle

The Perfect Combination of Handheld Repeater RT97 and Motorcycle

As a ham, amateur radio is our hobby. We want to hear more voice from worldwide, and the radio also become a part of our life. We take the radio out with us, hiking, camping, riding, parties, and even we can use it in the works too. We like DIY, we want to make the radios we have unique. Here I'll show you a practical application of handheld repeater RT97 with the motorcycle.

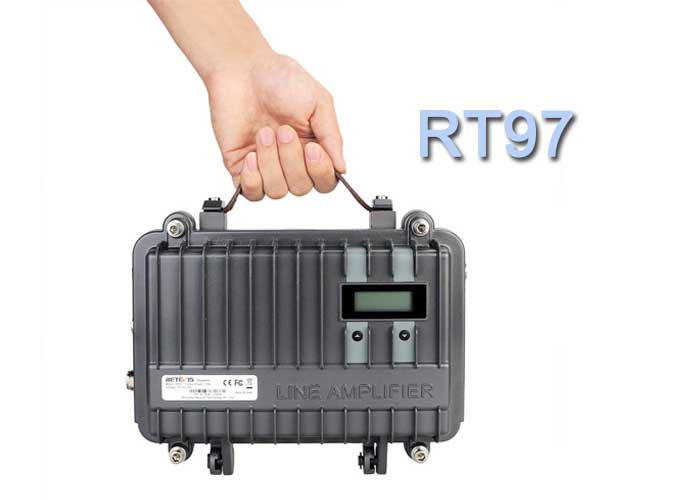

The basic information of Retevis RT97

1, 16 Channels
2, Offset: from 5mhz~10mhz
3, Output Power: 10W
4, Weight: 2700g( with package)
5, Package Size: 310x283x170mm
6, Can be programmed

If you want to customize the TX and RX frequency, please contact us!


The perfect combination of RT97 and motorcycle

When a motorcycle is traveling in a team, because of the speed, there is a long safe distance between the two motorcycle. The entire team will be like a train. It is very long and long. The communication between the leader motorcycle and the team tail motorcycle is very bad. Coupled with the effects of wind noise, clear call content that is hard to hear.

When I saw RT97, I think if I can put the RT97 on the motorcycle? Can this idea be a mobile relay station for the team? The experiment was successful on an electric motorcycle today.

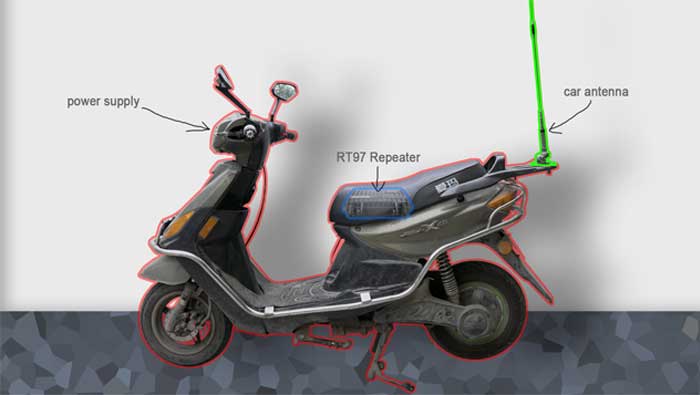

lan diagram of motorcycle installation RT97

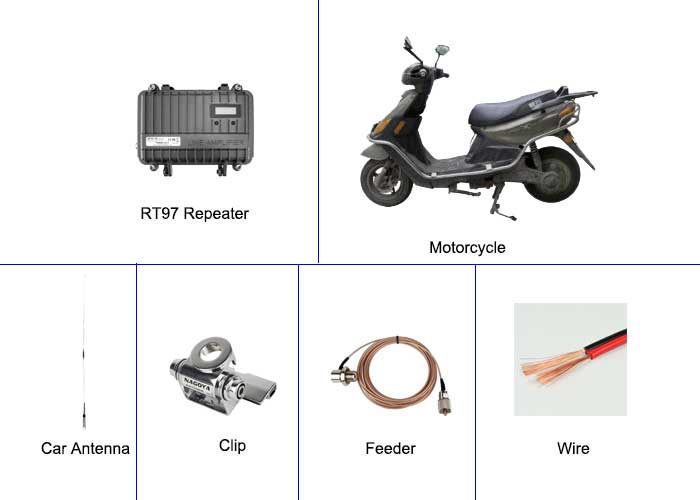

The equipment and materials needed are very simple: An RT97 Repeater, a motorcycle, a car antenna, 5-meter feeder, a clip for a car antenna,3 meters of wire.

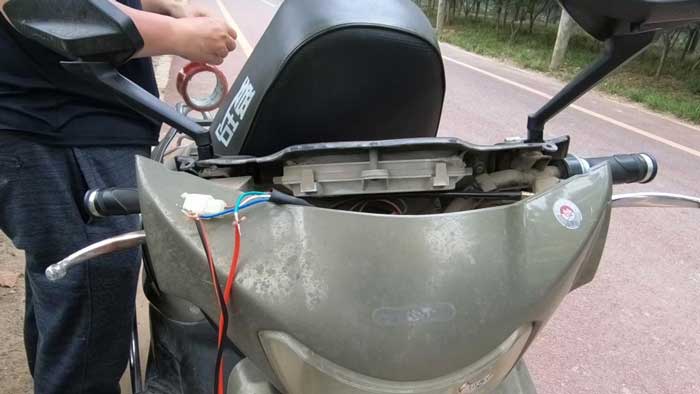

First, we want to get the DC 12v power supply from where. I am leading from the back of the light switch. This will turn the RT97 Repeater on or off at any time.


Take the DC 12v power supply from the rear of the light switch

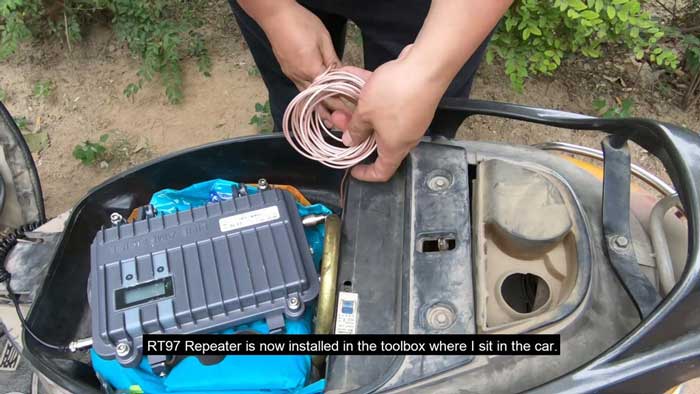

Then install the RT97 Repeater. RT97 Repeater is now installed in the toolbox where I sit in the car. The ideal state is to use the bracket to turn the RT97 Repeater, installed on the rear frame of the motorcycle. The cooling of the RT97 Repeater will be better.


Then install the RT97 Repeater

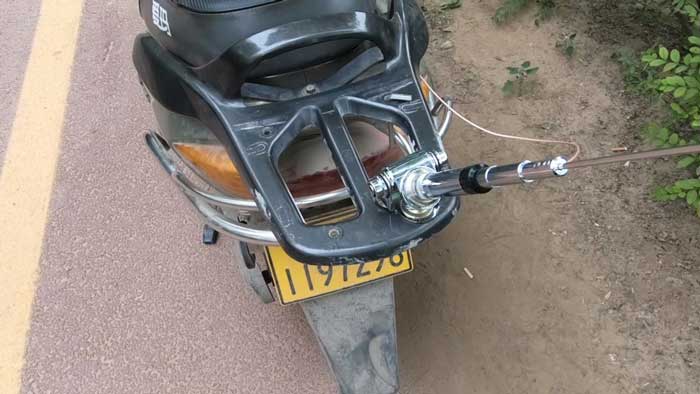

The antenna is mounted to the rear frame of the motorcycle.


The antenna is mounted to the rear frame of the motorcycle

If you like to ride a motorcycle and go out to the wild. If you like a lot of friends, ride a motorcycle and go outdoors. Then Retevis RT97 is perfect for you!

If you have any problems, feel free to leave messages to us.
