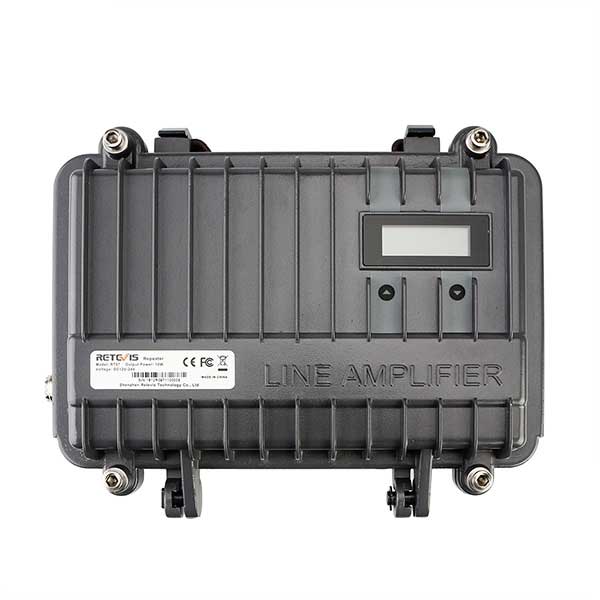

Retevis has a new portable repeater RT97, Small and compact. It is mainly for expanding the communication distance on some occasions. Such as little big office, shopping mall, physical activities, outdoor activities, or we can take it anywhere we want on the car, it is easy to carry. If you know other usage scenarios. Welcome to talk about with us.
Small and compact, solid and dust-proof.
Simple and convenient installation, flexible operation, can be operated as fixed or mobile.

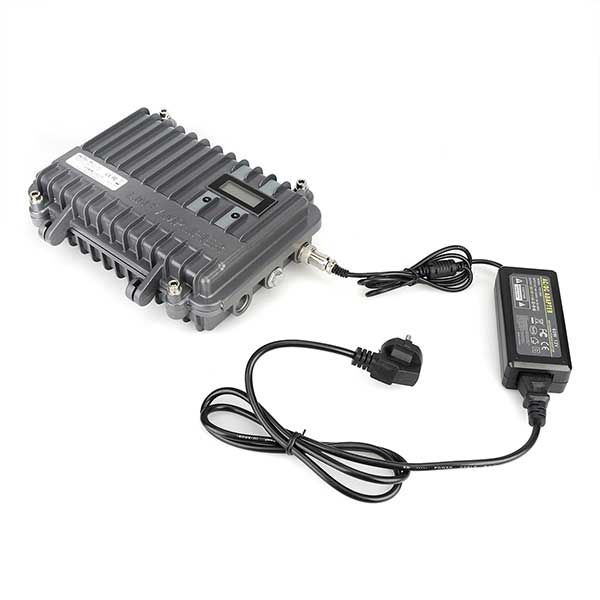

Multi working power selection, working with the matching power adapter and also can work under DC12V~24V power or car power.
The frequency can be can be customized. The default transmit frequency is 465MHz, the receive frequency is 455MHz.
|Channel Spacing||±12.5KHz Narrow/±25kHz Wide|
|Operating Voltage||DC12V ~24V|
|Operating Temperature||-30°C~ +60°C|
|Spurious Emission||-60dB or less|
|Maximum Frequency Deviation||Wide: ±5kHz Narrow: ±2.5kHz|
|Audio Distortion||5% or less|
Wide:≤45dB Narrow :≤40dB
0.2μV (Wide) 0.25μV (Narrow)
|Squelch Sensitivity||0.15μV (Wide) 0.2μV (Narrow)|
|Adjacent Channel Selectivity|
≥ 70dB (Wide) / ≥65dB (Narrow)
|Spurious Rejection||≥ 55dB|
|Image Rejection||≥ 55dB|
|FM Ham and Noise||≤-45dB(Wide) / ≤ -40dB(Narrow)|
|Operating Bandwidth||≤±7KHz / ≤±5KHz|
|Audio Distortion||≤ 5%|
If you need any further assistance, please do not hesitate to leave messages.
