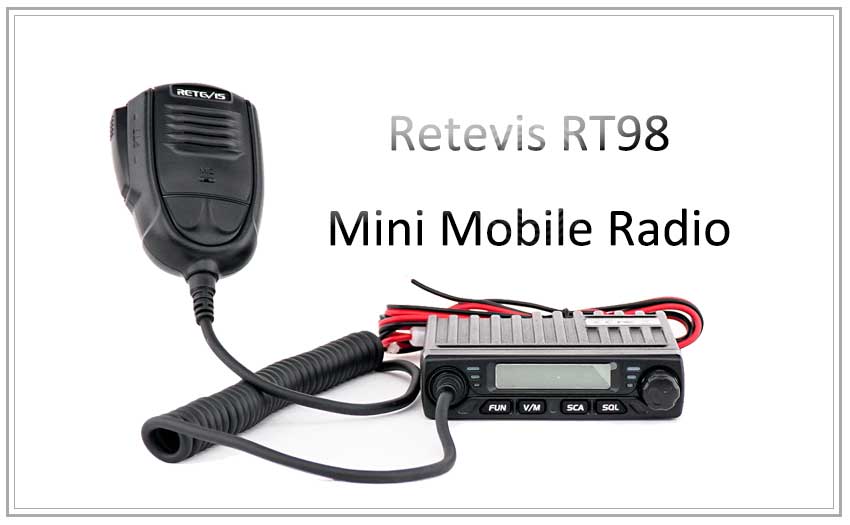

Mini Mobile Ham radio 15W amateur radio transceiver RT98

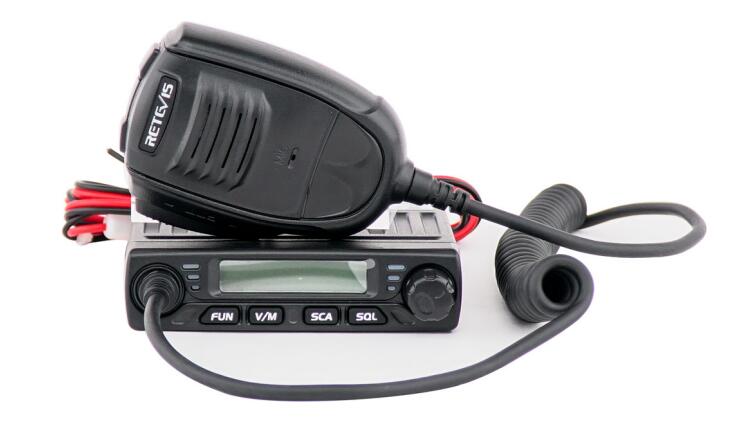

Retevis RT98 Mini Mobile Radio UHF 400-490MHz Transceiver 15W Two Way Radio
This mini amateur mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality.
This new Micro-sized mobile car radio, will be the best choice for hams and drivers.
Retevis RT98 Features:

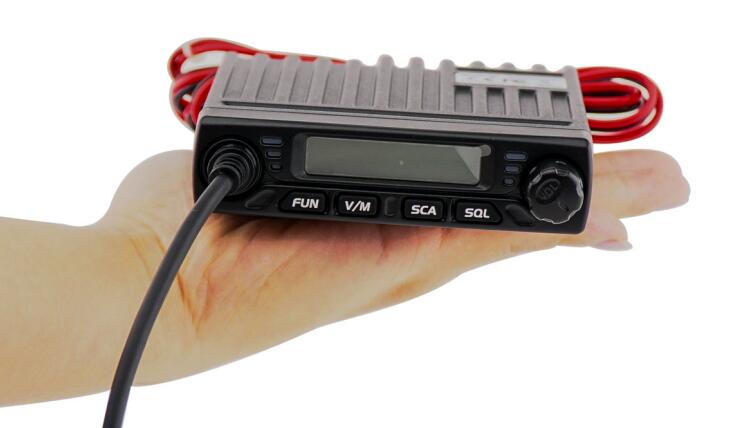

Mini size and light weight, easy to install
Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation
There are Amateur operation mode and Professional operation mode for option
199 programmable memorized channels, identified by editing name
Various scan functions including CTCSS/DCS Scan function
Automatic calling Identification function by CTCSS or DCS signaling
Different band width per channel, 25K for wide band, 12.5K for narrow band
Frequency Step 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K, 50K
Retevis RT98 Specification:
GENERAL | ||
Frequency range | UHF 400-490MHz | |
Number of Channels | 199 channels | |
Channel Spacing | 25KHz(Wide Band) 12.5KHz(Narrow Band) | |
2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K | ||
Operating Voltage | 13.8V DC ±15% | |
Squelch | Carrier/CTCSS/DCS | |
Frequency Stability | ±2.5ppm | |

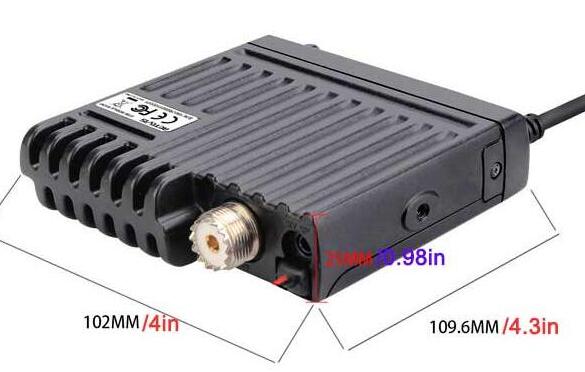

Size | 100*106*24mm | |
Weight | 434g | |
RECEIVER | ||
Wide Band | Narrow Band | |
Sensitivity (12dB SINAD) | ≤0.25μV | ≤0.35μV |
Adjacent Channel | ≥60dB | ≥60dB |
Intermodulation | ≥60dB | ≥60dB |
Spurious response | ≥60dB | ≥60dB |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
Hum & Noise | ≥45dB | ≥40dB |
Audio Distortion | ≤5% | |
Audio Power Output | >2W@16R | |
TRANSMITTER | ||
Wide Band | Narrow Band | |
Power Output | 15W / 10W / 5W | |
Modulation | 16KφF3E | 11KφF3E |
Adjacent Channel Power | ≥70dB | ≥60dB |
Hum & Noise | ≥40dB | ≥36dB |
Spurious Emission | ≥60dB | ≥60dB |
Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
Audio Distortion | ≤5% | |

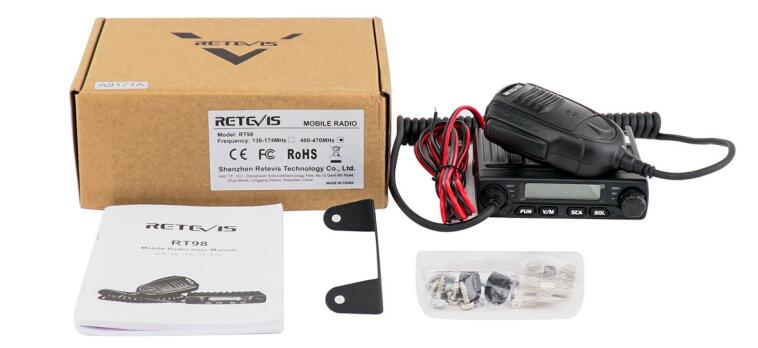

Retevis RT98 Package Includes:
1 x RT98 Mini Mobile car radio
1 x Install bracket
1 x Fuse
2 x Non-slip mat
1 x Microphone Hanger
2 x Adjusting screws
4 x Screws
4 x Pads
1 x User manual
Click to buy: Retevis RT98
If you have any other questions, feel free to leave messages to us.
