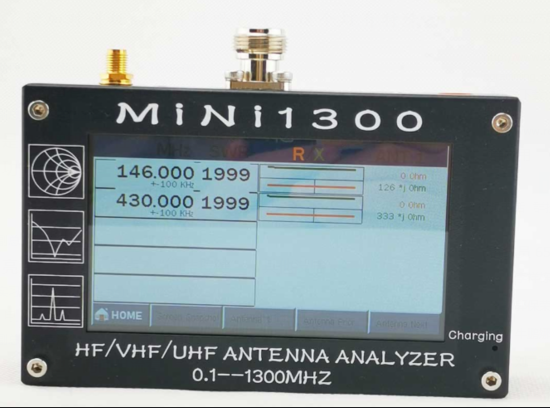

MiNi 1300 Touch Screen Antenna Analyter

Mini 1300 4.3’ TFT LCD touch screen antenna analyzer is an upgrade of Mini 600 antenna analyzer.

The frequency range can continuous coverage 0.1-1300 MHz HFVHF/UHF(Including FM broadcast frequency).

The Measurement Parameters including: SWR,R,+Jx,-Jx,IZI,Return loss.

And its Measurement Mode:Single point measurement,Scanning(Frequency Sweep),and TDR Mode.

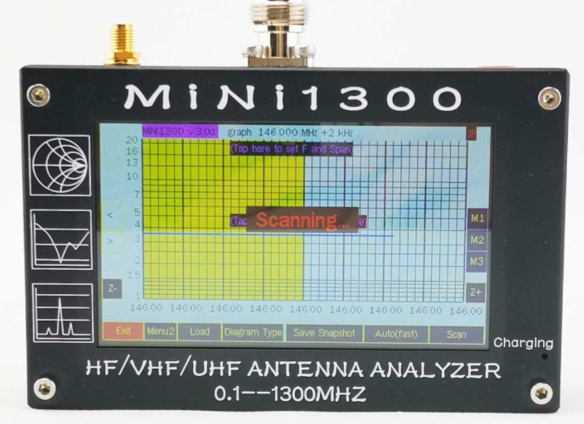

Come with 3 display modes: Numerical display,curve display,Smith chart.

The Connector Type is UHF N-type.

MainMenu

1. Single Frequency

2. Frequency sweep

3. Multi SWR

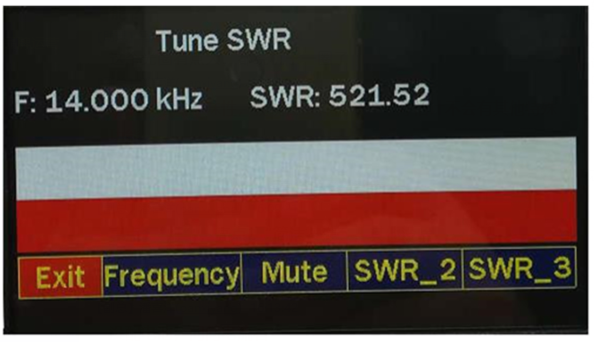

4. Tune SWR

5. S21 gain

6. Find Frequency

7. Quartz Data

8. TDR mode

9. L/C meter

10. DSP

11. Configuration

12. Manage snapshot

13. USB HS Reader

14. RF generator

Port specification

Single Frequency

Frequency scan

Configuration Menu

Multi SWR

Tune SWR

Main functions :
Panoramic scan
Generator
Time Domain
Multi SWR
Setup
Find Frequency
Tune SWR/Sound
View Pictures
USB HS cardrdr
SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Display Modes: Numerical display, curve display, simith chart
Connector Type: UHF N-type connector
SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480x272 4.3 TFT LCD display
Contact Screen Type: Capacitive
All capacitive touchscreen on the display - no buttons are needed
Power Source: USB or Internal Li-ion
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A
External Storage Method: TF card
Weight: 550g
Warning: if the product has parameter changes, the actual test will prevail.

Ailunce HD1 original antenna test:
