Ailunce HS2 is an ultra-portable full-frequency full-mode SDR radio. The HAM-BOX mobile app we developed allows the mobile phone to easily control and play radio stations. Make the operation of the radio more convenient and fast, the radio adopts a full keyboard design, built-in Bluetooth module. Sound card module and communication serial module. Full support for currently popular radio control software and logging software. We are working hard to give you more playable space.

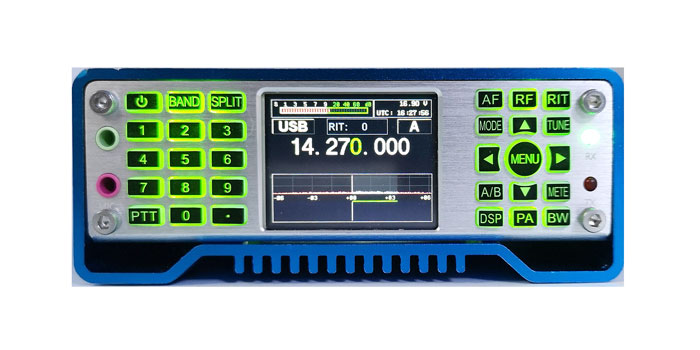

1. Real-time spectrum.
2. Waterfall chart.
3. Doppler frequency tracking.
4. Using software-defined radio technology (SDR), full-band support SSB, CW, RTTY, AM, FM.
5. Double frequency conversion circuit structure.
6. IF width and IF shift hardware and software can be modified to provide powerful IF interference suppression.

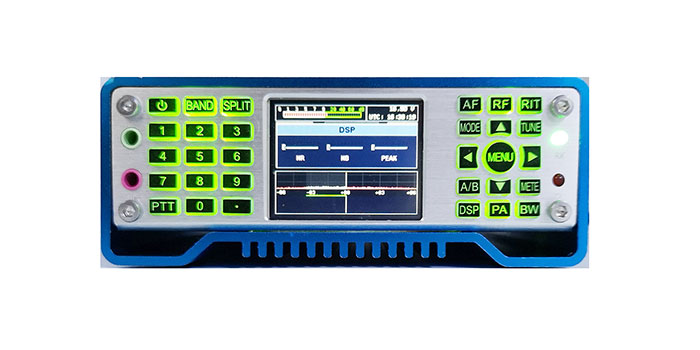

7. DSP digital noise reduction.
8. Built-in 160-6m high-speed automatic antenna tuner.

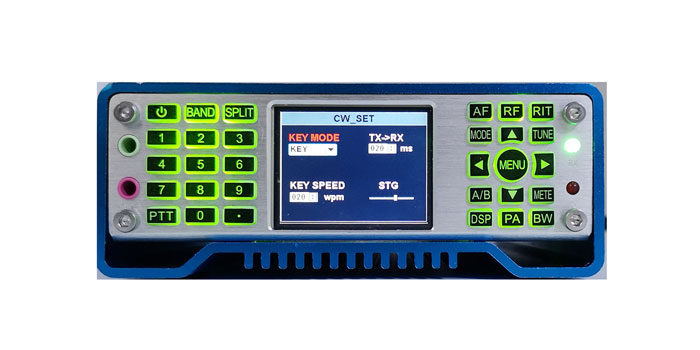

9. Built-in electronic key controller, all parameters can be set flexibly.
10. Built-in sound card with IQ and audio output.
11. Built-in FLASH memory.
12. USB TYPEC3.1 interface for power supply and computer connection.
13. Dual antenna interface (HF / 50MHZ, 144MHZ / 430MHZ).
14. High accuracy TXCO ± 0.5ppm (-10-60 ℃).
15. Ultra-wide working voltage range: 5-32VDC.
16. Built-in GPS / Beidou, GSM, electronic compass (acceleration, angle sensor) (optional)
17. GPS time (requires optional GPS module).
18. Built-in UTC clock.
19. Voltage display.
20. Unique LORA data transmission (requires optional LORA module).
21. Ultra-light weight: ≤1KG
Standard Configuration | Option Configuration |

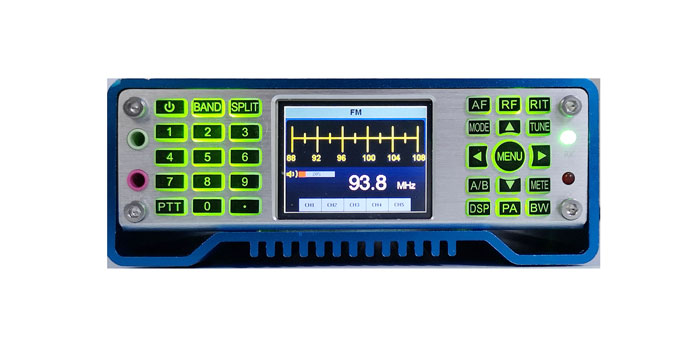

FM module | GPS module |
Bluetooth module | LORA module |
Bluetooth microphone | electronic compass module |
Built-in sound card | wired microphone |
Built-in automatic tuning | 1KW Amplifier |
Built-in memory | Satellite automatic antenna |
Shortwave balcony antenna |
Transmitter Architecture | SDR |
Transmission Mode | SSB, CW, RTTY, AM, FM |
Frequency Resolution | 1Hz |
Transmit Frequency Range |
1.800-2.000, 3.500-3.900, 5.351.5-5.366.5, 7.000-7.200, 10.100-10.150, 14.000-14.350, 18.068-18.168, 21-21.450, 24.890- 24.990, 28-29.7, 50-54, 144-146, 430-440MHz |
Output Power |
HF+6m: SSB(1~20W), CW(0.1~20W), FM(0.1~20W), AM(1~5W), VHF: SSB/CW/FM(0.5~5W) UHF:SSB/CW/FM(0.5~5W) |
Power Consumption |
TX:13.8V~5A RX:13.8V~0.2A(Normal),0.3A(Max brightness&Highest audio) |
Carrier Suppression | <50db |
Spurious Suppression |
1.8—54MHZ: ≥50db 144—146MHZ: ≥60db 430—440MHZ: ≥60db |
Memory Channel | 999 |
Receiver Architecture | SDR |
Receiver Mode | SSB, CW, RTTY, AM, FM |
Receive Frequency Range | 300KHz~500MHz |
IF Bandwidth | 20KHz |
IF | 12KHz |
Sensitivity |
SSB/CW:(BW: 2.4kHz @ 10dB S/N) 0.18uV(1.8—54MHZ), 0.25uV(144—146MHZ), 0.25uV(430—440MHZ) AM:( BW: 6kHz @ 10dB S/N) 15uV(0.3—1.8MHZ), 2uV(1.8—54MHZ), 2uV(144—146MHZ), 2uV(430—440MHZ) FM:(BW: 15kHz @ 12dB S/N) 0.5uV(28.0—29.7MHZ), 0.25uV(50—54MHZ), 0.3uV(144—500MHZ), 0.5uV(430—440MHZ) |
If Suppression | ≥70db |
Image Suppression | ≥80db |
Audio Output Power | 2W (10% distortion rate, 8Ω load, 3KHZ) |
Tuning frequency range | 1.8-54MHZ |
Tuning impedance range | 16.7Ω--150Ω unbalanced (SWR is better than 1: 3) |
Tuning accuracy | VSWR: 1: 1.5 or less |
Tuning time | 2-5S (full segment 10S) |
Tuning method | Automatic / Manual |
Spectrum bandwidth | 48K |
RF Spectrum | FFT |
Size | 170X120X45mm (excluding protrusions) |
Weight | <1KG |
Voltage range |
5—32V receiving range, 5-12V transmit power limit, 12-18V full power output, 18-32V transmit power limit. |
Antenna interface | TNC / BNT / M (optional) |
Working temperature | -10 ℃ to 60 ℃ |
Working humidity | 10% -- 90% |

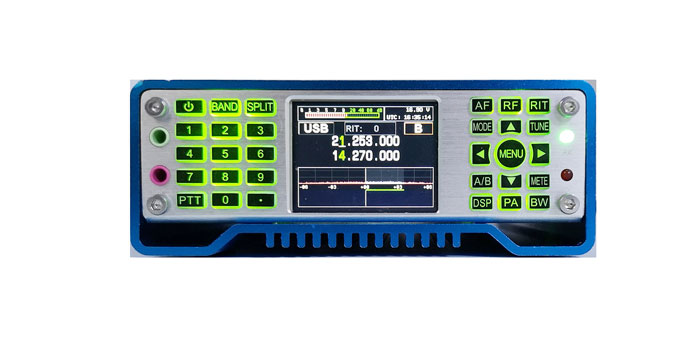

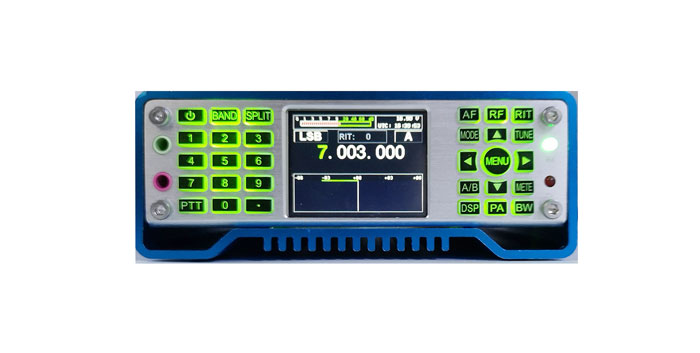

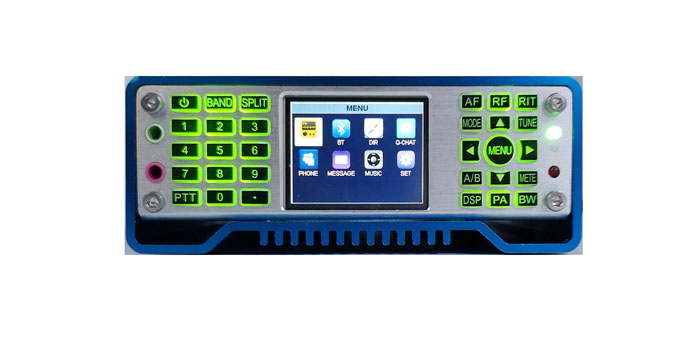

(The photos only for reference only, the products are subject to actual delivery. )
