There are many radios in the markets without built-in Bluetooth. If we want to use the Bluetooth, we need to have a radio Bluetooth adapter. With it, we can use the wireless Bluetooth earpiece and wireless PTT, It is very convenient.
Retevis has a radio Bluetooth kit, It can let your radio achieve Bluetooth pairing through Bluetooth adapter with the Bluetooth earpiece and Bluetooth PTT. It can give you a better wireless experience. Here I will show you some information about the radio Bluetooth kit.

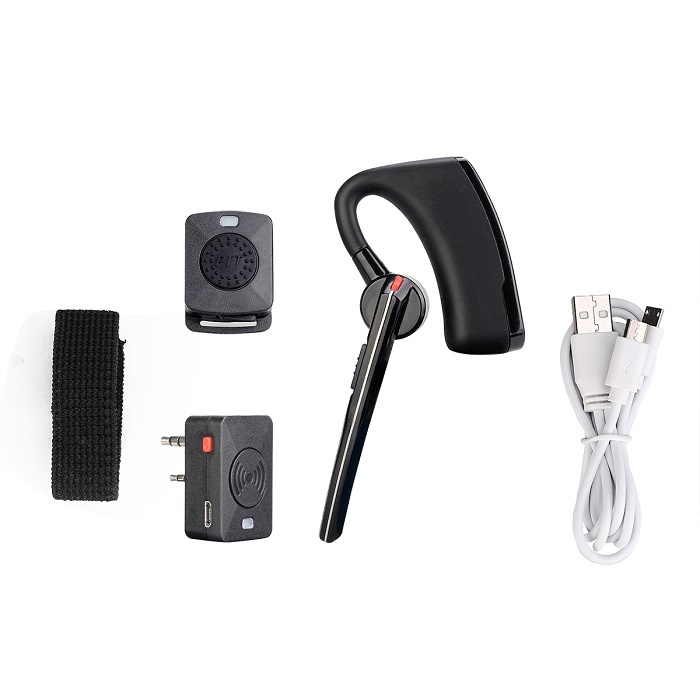

1x Advanced Bluetooth headset
1x Radio Bluetooth adapter
1x Wireless Bluetooth PTT
1x Elastic Band
2x Silicone Ear caps
1x Charging Cable
1x User Manual
This product can adapt two devices at the same time. It is equipped with in bulit-in walkie-talkie dedicated wireless “PTT” button and environmental noise reduction function. It achieves simultaneous dual standby and radio priority calls when the Bluetooth headset is in a mobile phone call or multimedia audio playing mode. When the two way radio receives a signal, it enters the radio call state automatically. When radio call ends, it returns to multimedia mode automatically after 8 seconds.
When a Bluetooth headset is connected to a walkie-talkie and it needs to be connected with a mobile phone at the same time, please turn off the Bluetooth headset, pair the Bluetooth headset and the mobile phone. Then the Bluetooth headset connects with the mobile phone successfully. Restart the bluetooth headset. It will connect the walkie-talkie and the mobile phone automatically.

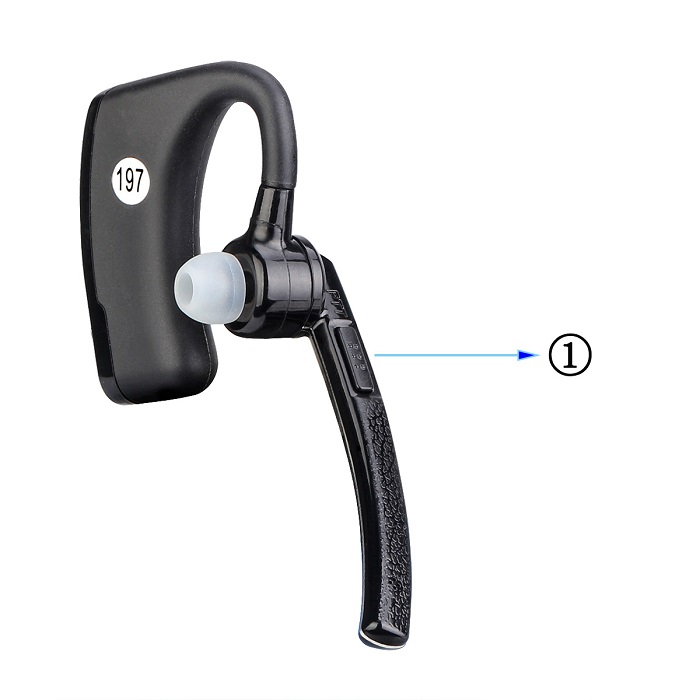

① Walkie talkie “PTT”button

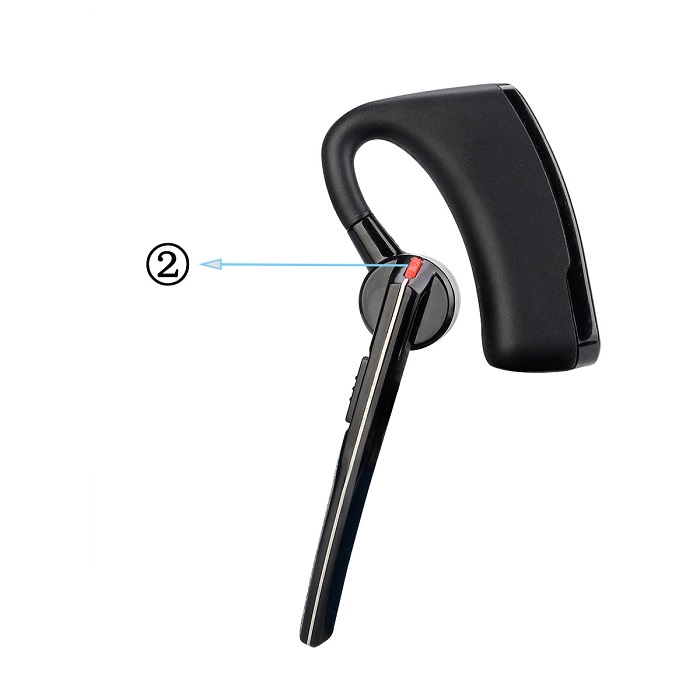

② On/off button
Long press 2 seconds to turn on, then long press 2 seconds to turn off.
Long press 6 seconds to enter Bluetooth pairing.
Press to pause and continue when you are listening to music.
Press to answer the phone call, then press again to end the call.

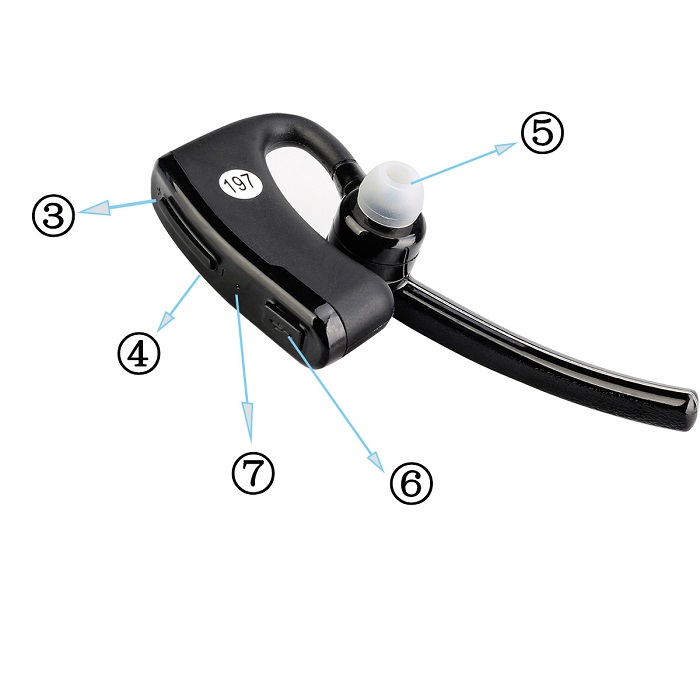

③Volume up button
Press the button to turn up the volume.
Long press 2 seconds to previous song
④Volume down button
Press the button to turn down the volume
Long press 2 seconds to next song.
⑥USB charging port
Noise reduction: press power and volume - button simultaneously(②+④)
Language switching: press power and volume + button simultaneously.( ②+③)
Pairing elimination: press volume + and volume – button simultaneously.( ③+④),then you will hear two “dudu”beep, it indicates pairing eliminate successfully.

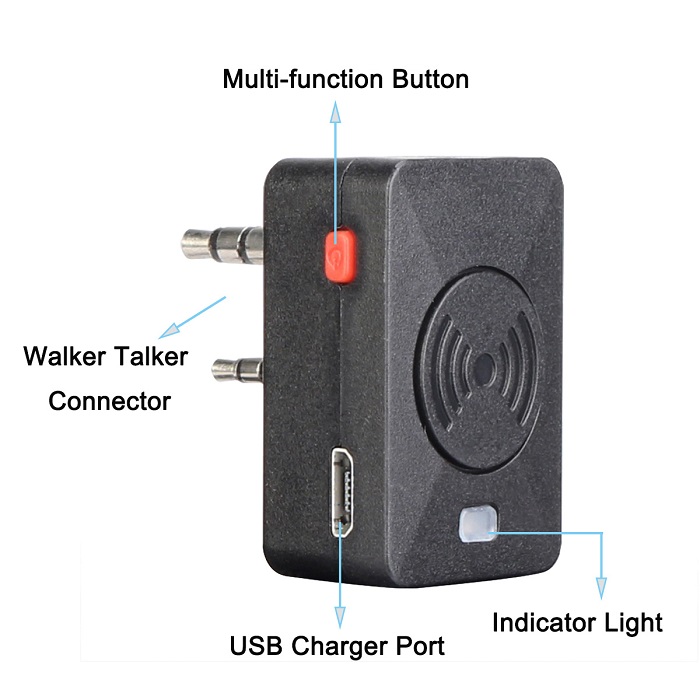

Two way radio Bluetooth adapter pairing
Long press multi-function button for 2 seconds, blue light glints, power on.
Then long press multi-function button for 3 seconds, red light glints, power off.
When the Bluetooth adapter is turned off, long press the multi-function button for about 7 seconds to enter pairing status.(Red and blue light glint alternately.)

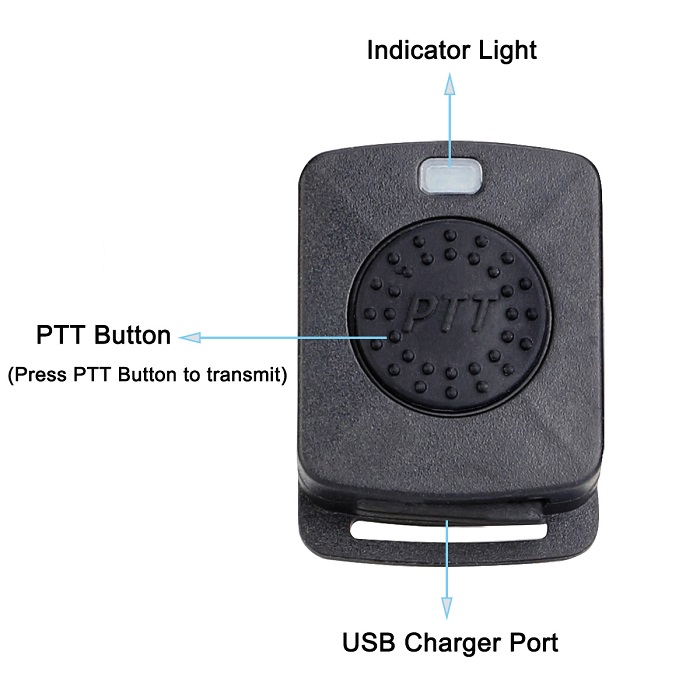

3. Put the wireless PTT key and the Bluetooth adapter together. Press the wireless ptt key’s button for about 1 second. The Bluetooth adapter’s red light disappear. It means the wireless PTT key is paired with Bluetooth adapter successfully.
4. Put the Bluetooth adapter and the Bluetooth headset together(both are red and blue lights glint alternately). Wait for about 40 seconds(first pairing). When their alternant red and lbue lights disappear and only blue light glints. It means the Bluetooth earpiece is paired and only blue light glints. It means the Bluetooth earpiece is paired with Bluetooth adapter successfully.
Blue light flashes slowly: power on, in standby mode.
Blue light flashes fast: the Bluetooth connection is interrupted, please check whether the Bluetooth earphone is turned on or has exceeded the Bluetooth connection distance.
Red light on: device is transmitting. When it is over, red light off.
Low battery tips: in standby mode, the red light flashes means low battery, please charge in time.

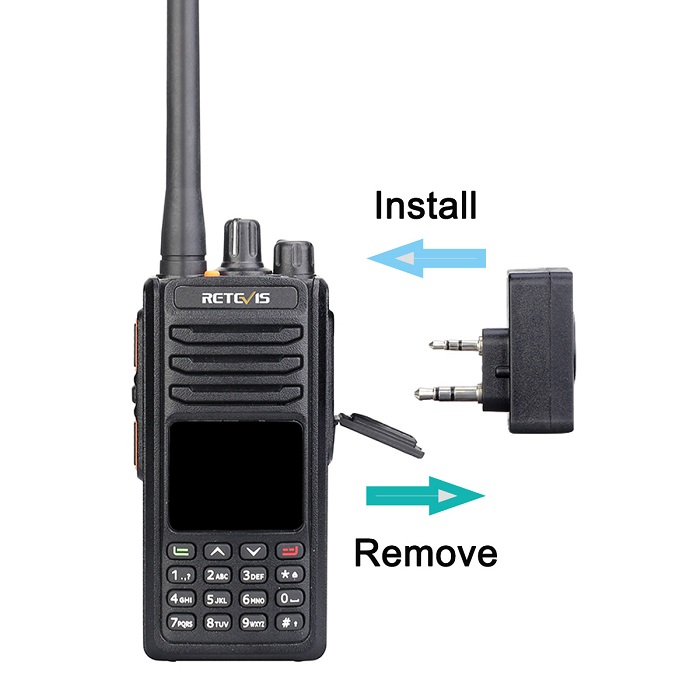

Install: insert the adapter into the radio port
Remove: unplug the adapter from the radio port.

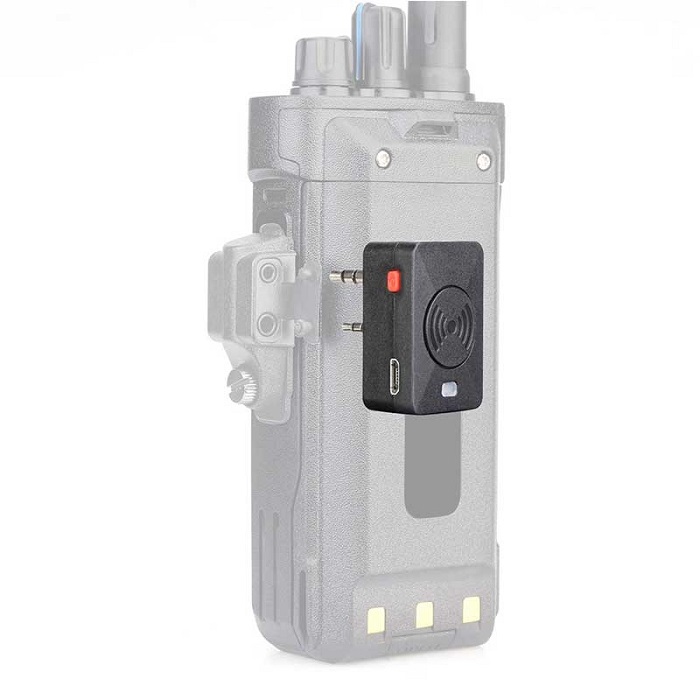

If your radio connector doesn’t match the Bluetooth adapter. You can use a connector adapter. Like Ailunce HD1, it is moto GP328Plus connector, we can’t use the Bluetooth adapter, it is 2 pin kenwood connector. So we need an adapter transmit GP328Plus connector to kenwood connector. Please refer to the follow photo.
This product uses mini USB charging port. It can be charged by standard DV5V power supply(computer’s USB port, power bank). When it is charging – red light on. If it is full charged – red light off.
