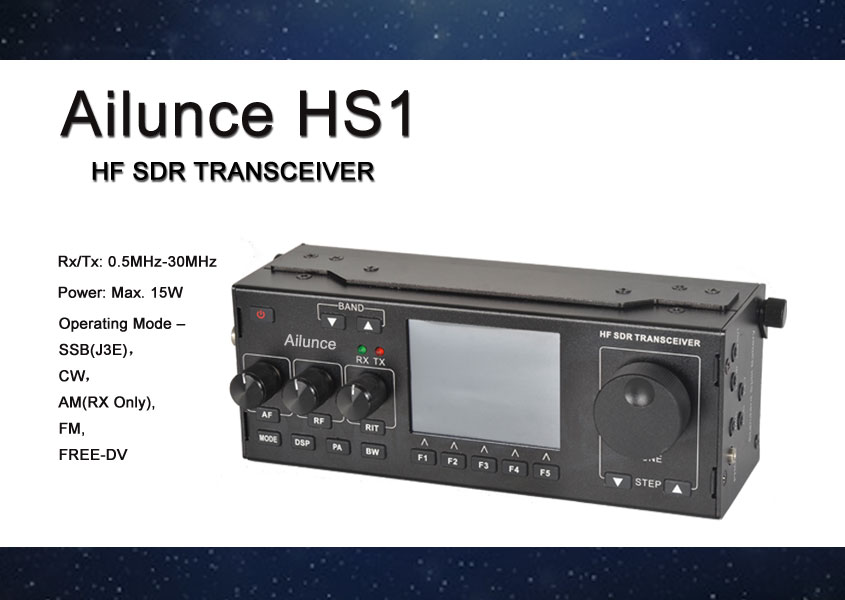

Ailunce HS1 SSB HF SDR HAM Transceiver

Ailunce HS1 SSB HF SDR HAM Transceiver

Ailunce HS1 SSB HF SDR HAM Transceiver

Main Functions

* Spectrum Dynamic Waterfall Display.

* Multiple Working Modes; Receive Mode, Transmit Mode, TUNE Mode, Vfo Mode, SPLIT Mode.

* DSP Digital Signal Processing Noise Reduction.

* Automatic Notch Filter, Humanized Interface Color Display.

* Receive Fine Tuning Function, Changeable MIC Gain Value.

* VCC Power Supply Voltage Indication Table.

* Transmit Signal Strength Display Table.

* Multifunctional Instrument: SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter.

General Specifications

Frequency Range RX: 0.5MHz30MHz
TX: 0.5MHz30MHz
Output Power Maximum 15W
Receiving Sensitivity Better than -115dBm
Operating Mode Full Modes
Dimensions 190mm*69mm*45mm
Operating Voltage Range DC 9-15V
Maximum Current 3.5A
Transceiver comes with automatic key generator circuit, Can be connected to the use of automatic keys.

Standard Accessories:

Ailunce HS1.jpg


Comment user

Kirt. Salisbury

What is the price on your Ailunce HF- 1 SDR Transceiver? Anyone in the states selling it??? Kirt. KK7QT

Comment user

Hi This is hs1 hf sdr transceiver it can be possible to buy the circuit board with cpu programmed as I accidentally came to insert 12 volts on the input of acc input dermsd went cpu dead courtesy of Dan Chr. Lamp byagervej104 D 8330 Asking Denmark to pay

Comment author

Yolanda Author

hello, you can contact your seller ask if they can ship it to you. we won't sell the circuit board directly.
