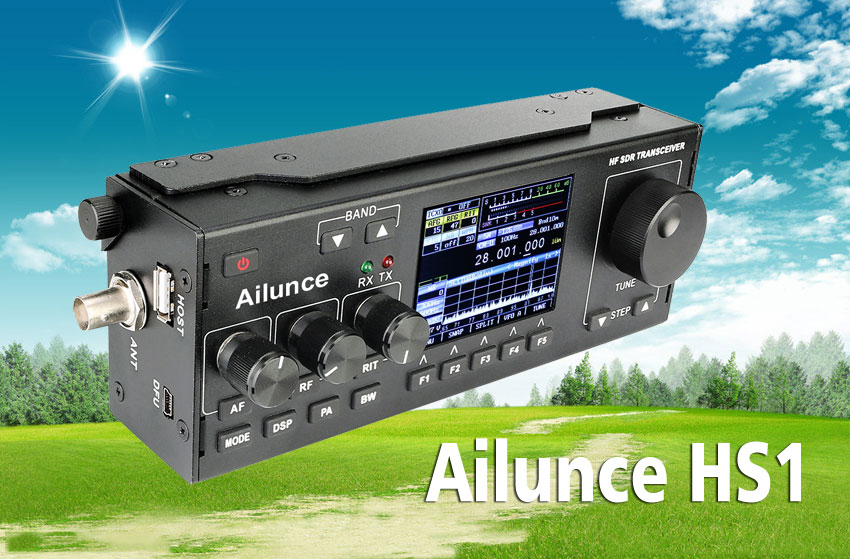

Ailunce HS1 HF SDR Transceiver Function Keys
Ailunce HS1 HF SDR Transceiver Function Keys
Spectrum Dynamic Waterfall Display
Multiple Working Modes：Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode
DSP Digital Signal Processing Noise Reduction
Automatic Notch Filter
Humanized Interface Color Display
Receive Fine Tuning Function, Changeable MIC Gain Value
VCC Power Supply Voltage Indication Table
Transmit Signal Strength Display Table
Multifunctional Instrument：SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter
Ailunce HS1 Key function matrix：
Button(s) | Brief press | Press-and-hold >1 second |
Power | Change display brightness | Power on and power off/save settings to memory |
M1 | Select AFG and CMP or STG | |
M2 | Select RFG and DSP or NB | Switch between DSP and NB |
M3 | Select RIT and MIC or LIN | Switch between MIC or LIN |
G1 | Change operational mode | Change operational mode - including disabled mode(s) |
G2 | Change DSP mode | Enable/Disable DSP without changing mode |
G3 | Change transmit power level | Generate CW Sidetone reference (CW/LSB/USB modes only) |
G4 | Change receive bandwidth (except in FM mode) | Change receive bandwidth – including disabled bandwidth(s) |
BAND- | Change to different band | |
BAND+ | Change to different band | |
STEP- | Change step size | Temporarily change to smaller tuning step size |
STEP+ | Change step size | Temporarily change to larger tuning step size |
STEP- & STEP+ | Lock/Unlock tuning knob | |
POWER & BAND- | Toggle display backlight auto-off | |
BAND- & BAND+ | Toggle Spectrum Scope and Waterfall modes |
Main operational (receive/transmit) mode:
F1 | Enter MENU mode | Save settings to memory |
F2 | Change meter mode | |
F3 | Toggle SPLIT mode on/off | |
F4 | Toggle VFO A/B | Copy active VFO to inactive VFO (A=B or B=A) |
F5 | Toggle TUNE mode | Enable/Disable transmit toggle |
Menu mode:
F1 | Exit MENU mode | Save settings to memory |
F2 | Set selected menu item to default | |
F3 | Move to previous menu screen | Move to beginning of current menu |
F4 | Move to next menu screen | Move to end of current menu |
F5 | Toggle TUNE mode | Enable/Disable transmit toggle |
Note:
• Pressing-and-holding F1, F3 and F5 simultaneously while powering up the radio will cause defaults to be loaded. The user must either disconnect power to retain the old settings or press-and-hold the POWER button to overwrite them with defaults. All configurations, adjustments, frequencies and mode settings will be lost!
• Pressing-and-holding a button (other than POWER) while powering up the radio will cause it to enter a “button test” mode. If multiple keys are pressed, only the name of the button with the highest precedence will be displayed. In decreasing order, the precedence is: M2, G3, G2, BNDM, G4, M3, STEPM, STEPP, M1, M3, F1, F2, F4, BNDP, F5, G1 and POWER
• The“Band-” and “Band+” and the “Step-” and “Step+” functions may be swapped using menu selections.
