DKGP10 3.5Mhz-54Mhz/100W/Portable Shortwave Antenna/HF Antenna

In Stock Unavailable
SKU: LP20072003

Regular price $150.99

Transmit frequency: 3.5Mhz---54Mhz amateur section (and non-amateur section)
Power: 100W
SWR: less than 1.5 (refer to adjustment method)
Receive frequency: 0.5-500Mhz

Multi-interface input and output.

Realize full-band use under radio battery power.

Using self-designed second-generation air capacitor 10-330PF.


Magnetic ring inductance

Special air capacitor

Power: 100W

SSB and CW FM Data Transmission

Total length of telescopic antenna 6M


3.5-3.9Mhz                  80Meter

5.3305-5.3665Mhz        60Meter

7-7.100Mhz                  40Meter

10.100-10168Mhz        30Meter

14-14.350Mhz              20Meter (Above the 14Mhz can gets the most efficient.)

18.068-18.168Mhz       17Meter

21-21.450Mhz              15Meter

24.890-24.990Mhz       12Meter

28-29.700Mhz              10Meter

51-54Mhz                     6Meter

Full band receive, also can receive U/V frequency.

The above bands are all erected on the balcony and erected in the field.

Applicable environment: Balcony, Field Day Use.

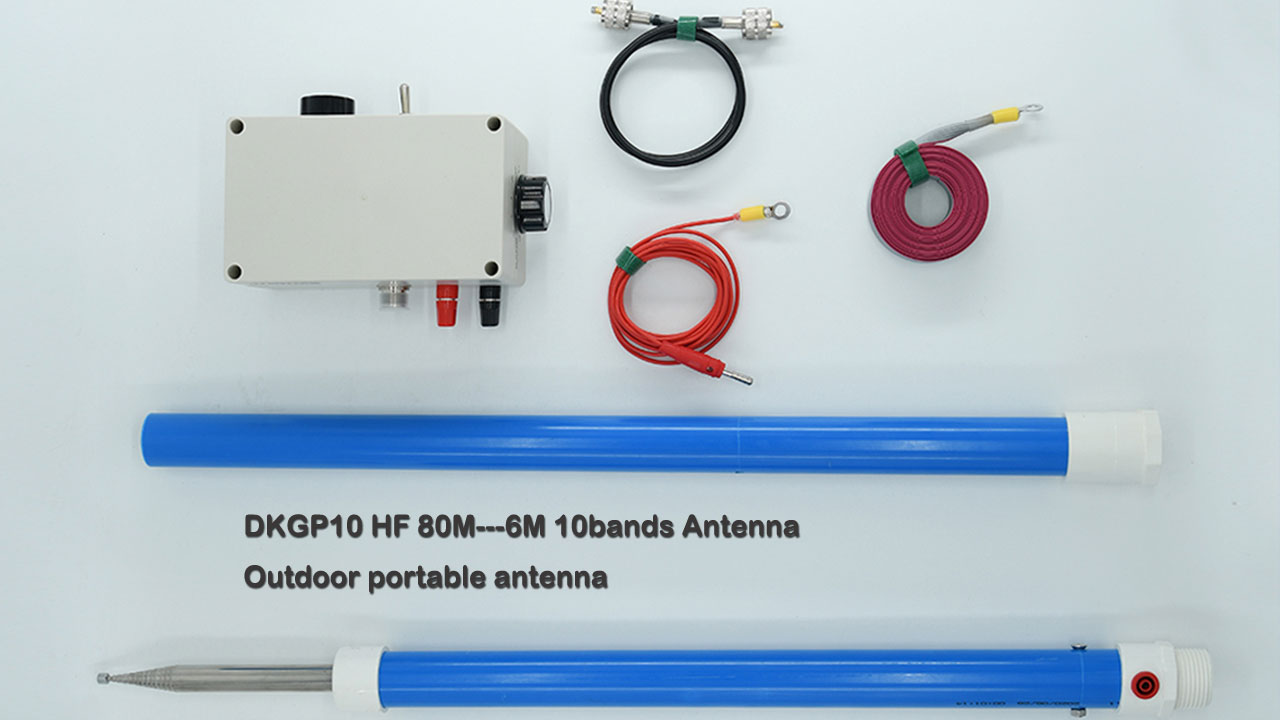

Package details:

1. Shortwave Whip Antenna × 1 (two sections)

 2. Antenna Tuner box × 1

 3. Flat cable ground network × 1

 4. End feed box with tie rod cable × 1

 5. 50-3 feeder × 1

Not including the tripod.
